IoT Wireless Temperature Datalogger for 2 external probes

IoT Wireless Temperature Datalogger for 2 external probes

SKU: SKU: U0843M   Download PDF

Qty:
Regular price Now $100.00   Web pricing policy
Regular price BEFORE   Sale price Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

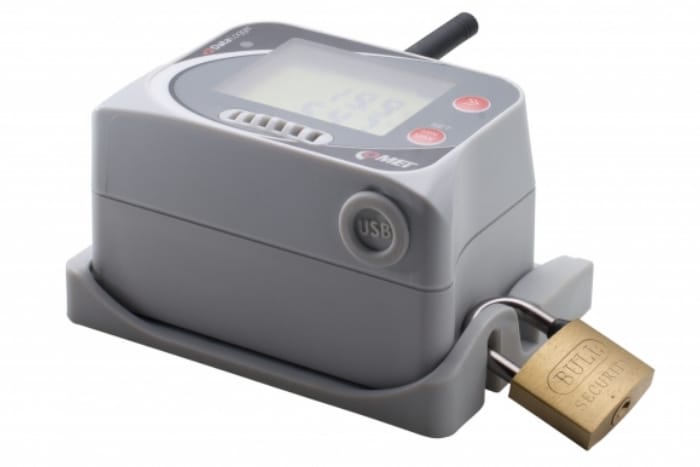

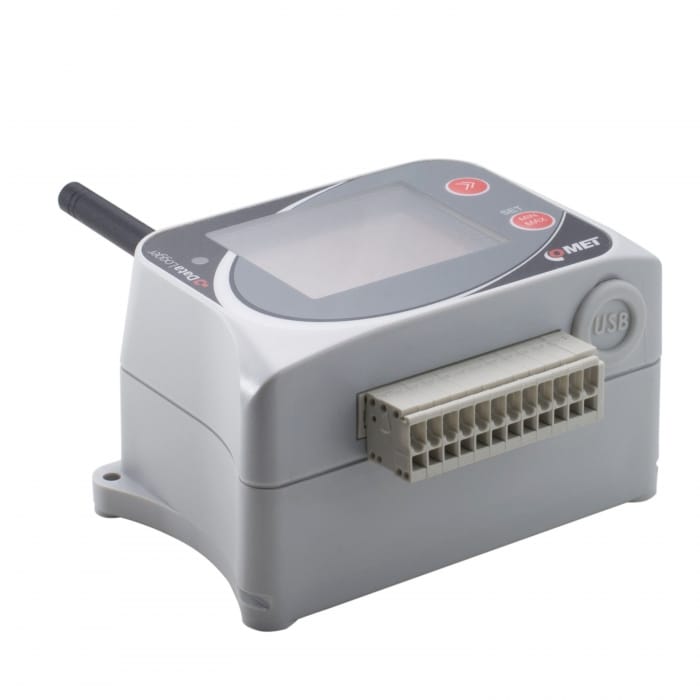

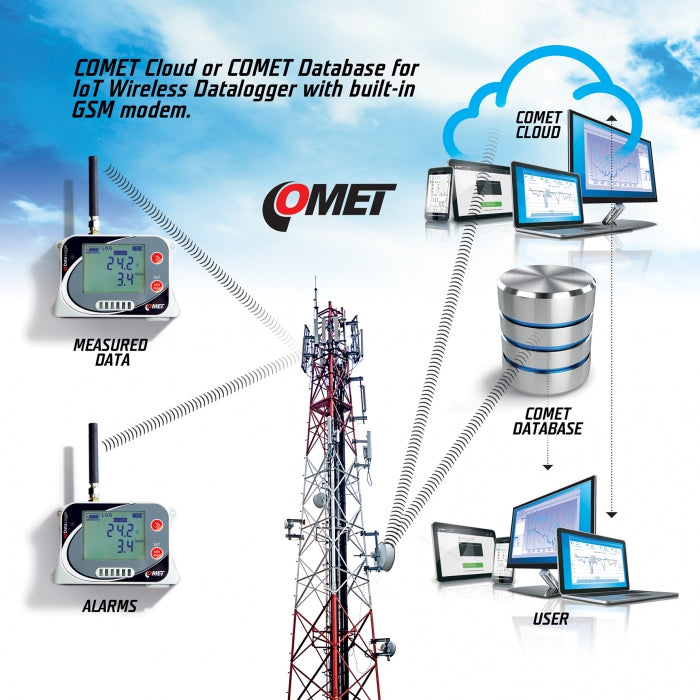

GSM Datalogger is designed to record from two external temperature probes and two two-state inputs In case of exceeded set limits, SMS and JSON messages can be sent via GPRS data connection Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable.

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper The recording is performed in a non-volatile electronic memory The data can be transferred to a PC via included USB-C cable GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Features and Benefits:

    •Records from two external temperature probes and two two-state inputs.

    •Sends SMS and JSON messages via GPRS data connection for exceeded set limits.

    •Measured values can be stored in the COMET Cloud for monitoring and analysis.

    •Adjustable sending interval for JSON messages to COMET Database.

    •Local alarm indication via LED, LCD, and built-in beeper.

    •Non-volatile electronic memory for data recording.

    •Data transfer capability to a PC via USB-C cable.

    •Includes Traceable calibration certificate.

Specifications:

 Measured value Temperature, Two-state signal
 Temperature sensor External probe Pt1000
 Measuring range -200 to +260 °C
 Accuracy ±0.2°C; ±0.2 % of the measurement value in a range of +100 to +260 °C
 Resolution 0.1 °C
 Response time t90 according to the connected probe
 Binary input parameters Voltage contact and voltage-free contact parameters provided
 GSM modem parameters Quad-band 850/900/1800/1900MHz, compliant to GSM Phase2/2+
 General technical data Operating temperature -20 to +60 °C, 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
 Recording interval Adjustable from 1 second to 24 hours
 Power Rechargeable Li-Ion battery A8200, 3.6V/5200mAh
 Protection class IP20
 Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
 Warranty 3 years
