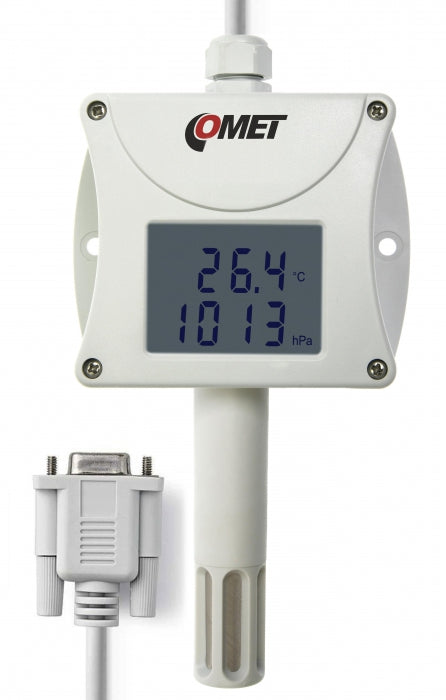

Industrial Temperature, Humidity, Barometric Pressure Transmitter - RS232 Output

Industrial Temperature, Humidity, Barometric Pressure Transmitter - RS232 Output

SKU: T7310 Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Industrial temperature, humidity, barometric pressure transmitter features RS232 output and acts as a weather sensor for environment monitoring equipped with one of the best barometers This transmitter can measure ambient temperature along with humidity and atmospheric pressure It is suitable for both outdoor and indoor use and comes with built-in sensors that allow for the conversion of measured values into various interpretations such as dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

Features and Benefits:

    •Built-in relative humidity, temperature, and atmospheric pressure sensors.

    •Measures ambient temperature and humidity with high accuracy.

    •Capable of converting measurements into dew point temperature and other humidity interpretations.

    •Versatile application for outdoor and indoor uses.

Specifications:

 Temperature Measuring Range: -30 to +80 °C
 Temperature Accuracy: ±0.4 °C
 Temperature Resolution: 0.1 °C
 Humidity Measuring Range: 0 to 100 % RH
 Humidity Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Atmospheric Pressure Measuring Range: 600 to 1100 hPa
 Atmospheric Pressure Accuracy: ±1.3 hPa at 23 °C from 800 to 1100 hPa
 Atmospheric Pressure Resolution: 0.1 hPa
 Operating Temperature: -30 to +80 °C
 Channels: internal sensor of temperature, humidity sensor and atmospheric pressure
 Counted Values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Output: RS232
 Humidity Sensor Temperature Compensation: all temperature range
 Available Temperature Units: degrees Celsius, degrees Fahrenheit
 Communication Protocol: ModBus RTU and Advantech ADAM compatible protocol
 Power: 9-30 Vdc
 Protection Class: IP54 electronics; IP40 sensors
 Dimensions: 88.5 x 170 x 39.5 mm; stem length 75 mm
