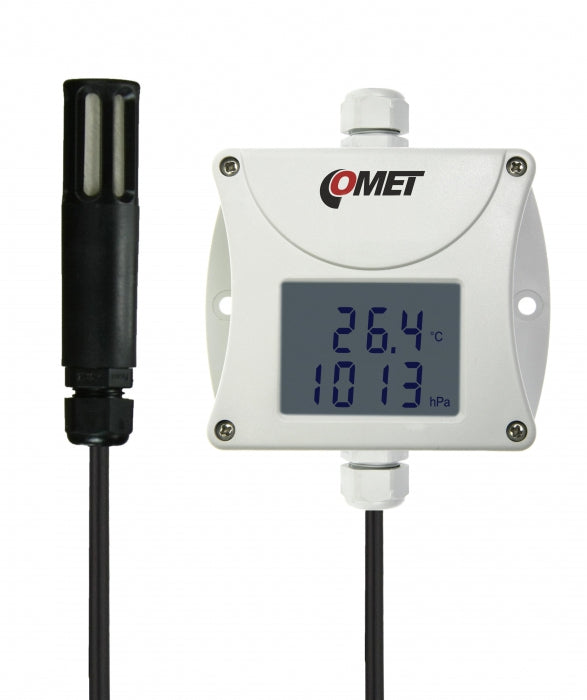

Industrial temperature, humidity, bar. pressure transmitter - RS485 output

Industrial temperature, humidity, bar. pressure transmitter - RS485 output

SKU: T7411   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Humidity, temperature transmitter with T+RH probe on the cable Outdoor, indoor use For environmental monitoring Humidity, temperature probe on a cable Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy Built-in pressure sensor The device is supplied with T+RH probe with 1 meter cable.

Features and Benefits:

    •Humidity, temperature probe on a cable.

    •Measured values converted to dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

    •Built-in pressure sensor.

    •Environmental monitoring for indoor and outdoor use.

Specifications:

 Temperature Measuring Range: -30 to +105 °C
 Temperature Accuracy: ±0.4 °C
 Temperature Resolution: 0.1 °C
 Humidity Measuring Range: 0 to 100 % RH
 Humidity Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Atmospheric Pressure Sensor Measuring Range: 600 to 1100 hPa
 Atmospheric Pressure Sensor Resolution: 0.1 hPa
 General Accuracy: ±1.3 hPa at 23 °C from 800 to 1100 hPa
 Operating Temperature: -30 to +80 °C
 Channels: internal atmospheric pressure sensor, 1x connectable temperature+humidity probe
 Counted Values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Output: RS485
 Humidity Sensor Temperature Compensation: all temperature range
 Available Temperature Units: degrees Celsius, degrees Fahrenheit
 Communication Protocol: ModBus RTU, ARION, Advantech ADAM
 Power: 9-30 Vdc
 Protection Class: IP54 electronics; IP40 sensors
 Dimensions: 88.5 x 114 x 39.5 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length: 1 meter
