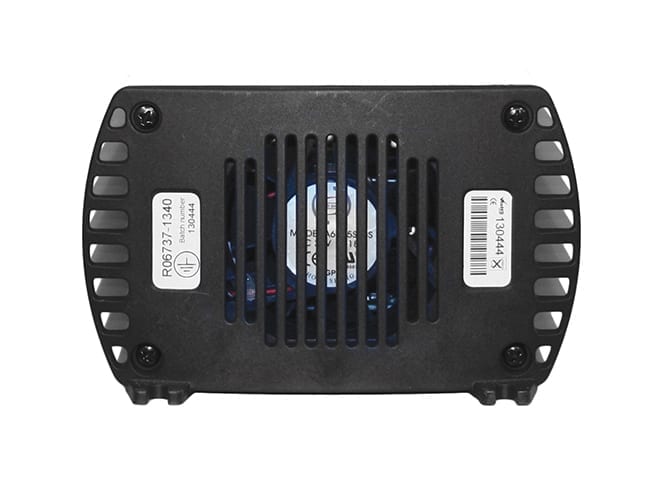

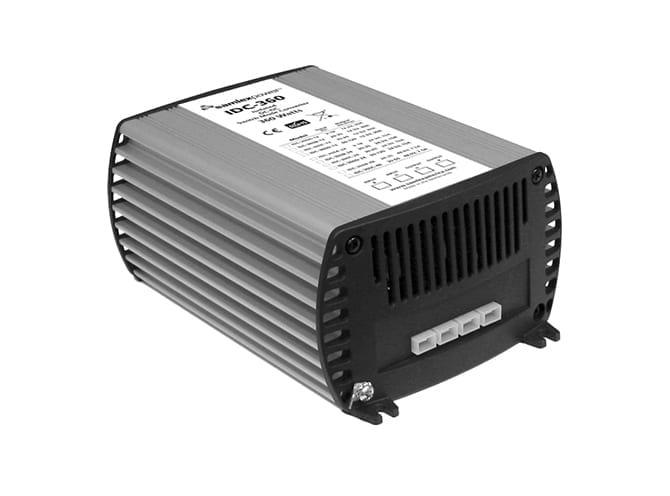

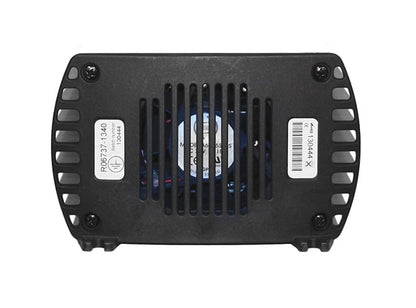

IDC-360C-12 Fully Isolated Converter

IDC-360C-12 Fully Isolated Converter

SKU: IDC-360C-12 Download PDF

Now $454.10
BEFORE   Now $454.10
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The IDC-360C-12 isolated DC-DC converter is part of the IDC-360 series, which represents a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output This converter provides a highly regulated output DC voltage of 125 Volts and supports an input DC voltage range of 30-60 Volts, with a rated output current of 30 Amps.

It features a compact housing design, fold-back current limiting, and offers several protections including against short circuit, overheating, overvoltage, and reverse polarity connection The device is equipped with ¼” push-on flat blade 'quick disconnect' connectors Moreover, the IDC-360C-12 converter is compliant with EMI/EMC requirements and meets European standards EN50081-1 for EMI and EN50082-1 for EMC.

Features and Benefits:

    •High efficiency isolated DC-DC converter.

    •Outputs a regulated 12.5 Volts DC.

    •Input voltage range of 30-60 Volts.

    •Rated output current of 30 Amps.

    •Compact housing.

    •Fold-back current limiting.

    •Protection against short circuits, overheating, oversupply, and reverse polarity.

    •Equipped with quick disconnect connectors.

    •EMI/EMC compliant.

Specifications:

 Output Voltage: 12.5 Volts
 Input Voltage Range: 30-60 Volts
 Rated Output Current: 30 Amps
 EMI/EMC Compliance: EN50081-1 and EN50082-1
 Connector Type: ¼” push-on flat blade 'quick disconnect'
