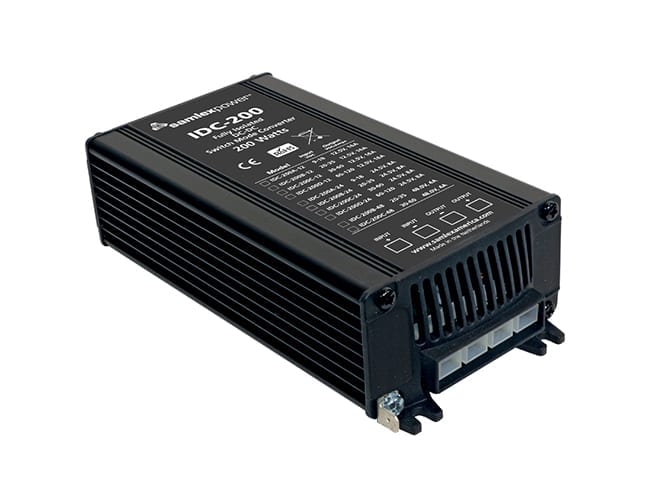

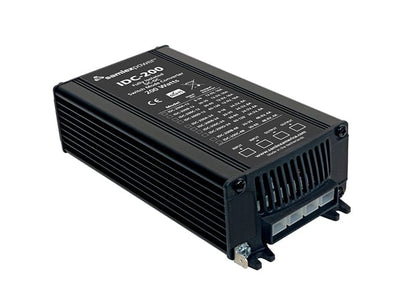

IDC-200C-12 Fully Isolated Converter

IDC-200C-12 Fully Isolated Converter

SKU: IDC-200C-12 Download PDF

Now $235.80
BEFORE   Now $235.80
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output IDC-200C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 125 Volts for an input DC voltage range of 30-60 Volts and rated output current of 16 Amps (at 60 Volts input) Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection.

The unit comes with ¼” push-on flat blade “quick disconnect” connectors IDC-200C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features and Benefits:

    •Compact housing.

    •Fold-back current limiting.

    •Protection against short circuit.

    •Protection against overheating.

    •Protection against overvoltage.

    •Protection against reverse polarity connection.

    •EMI/EMC compliant and conforms to European standards EN50081-1 and EN50082-1.

    •Comes with ¼” push-on flat blade quick disconnect connectors.

Specifications:

 Output DC Voltage: 12.5 Volts
 Input DC Voltage Range: 30-60 Volts
 Rated Output Current: 16 Amps (at 60 Volts input)
 Power Rating: 200 Watt
 Housing: Compact
 Protection: Short circuit, overheating, overvoltage, reverse polarity
 Compliance: EMI/EMC compliant
