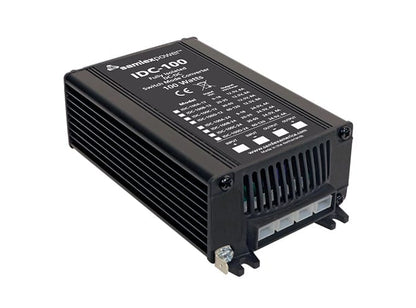

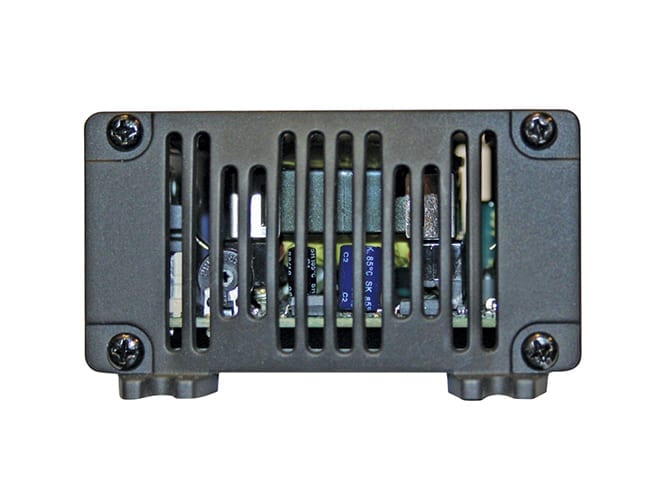

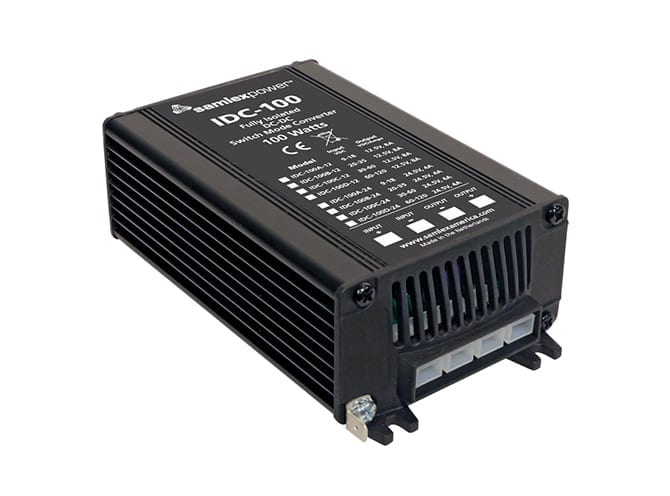

IDC-100C-24 Fully Isolated Converter

IDC-100C-24 Fully Isolated Converter

SKU: IDC-100C-24 Download PDF

Now $204.50
BEFORE   Now $204.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output IDC-100C-24 isolated DC-DC converter provides a highly regulated output DC voltage of 245 Volts for an input DC voltage range of 30-60 Volts and rated output current of 4 Amps (at 60 Volts input) Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection.

The unit comes with ¼” push-on flat blade “quick disconnect” connectors IDC-100C-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features and Benefits:

    •High efficiency operation, providing 100 Watts of isolated DC-DC conversion.

    •Highly regulated output voltage of 24.5 Volts.

    •Input voltage range flexibility of 30-60 Volts.

    •Rated output current of 4 Amps at 60 Volts input.

    •Compact housing design.

    •Fold-back current limiting feature.

    •Protection against short circuit, overheating, overvoltage, and reverse polarity connection.

    •Equipped with quick disconnect connectors for ease of installation.

    •EMI/EMC compliance meeting European standards EN50081-1 and EN50082-1.

Specifications:

 Output Voltage: 24.5 Volts
 Input Voltage Range: 30-60 Volts
 Output Current: 4 Amps at 60 Volts input
 Power Rating: 100 Watts
 Connector Type: ¼” push-on flat blade quick disconnect
 EMI Compliance: EN50081-1
 EMC Compliance: EN50082-1
