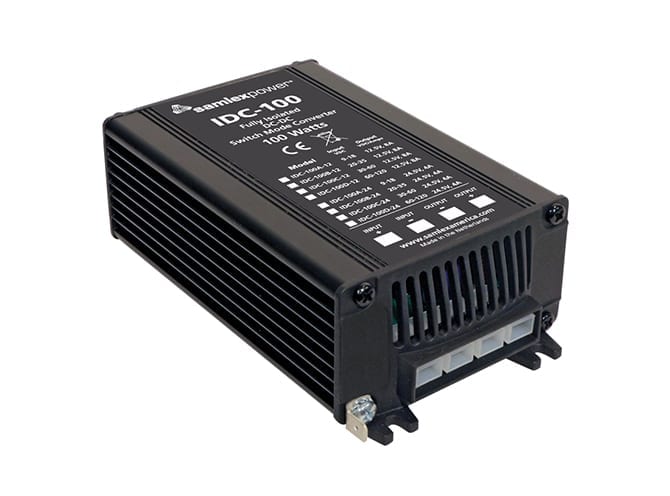

IDC-100B-12 Fully Isolated Converter

IDC-100B-12 Fully Isolated Converter

SKU: IDC-100B-12 Download PDF

Now $204.50
BEFORE   Now $204.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output The IDC-100B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 125 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input) Features include compact housing, fold-back current limiting, and protection against short circuit, overheating, overvoltage, and reverse polarity connection.

It comes with ¼" push-on flat blade “quick disconnect” connectors and is EMI/EMC compliant, conforming to European standards EN50081-1 (for EMI), EN50082-1 (for EMC), and the European Automotive Directive 95/54/CE.

Features and Benefits:

    •High efficiency 100 Watt isolated DC-DC converter.

    •Galvanic isolation between input and output.

    •Highly regulated output DC voltage of 12.5 Volts.

    •Input range of 20-35 Volts with 8 Amps output current at 35 Volts input.

    •Compact housing design.

    •Fold-back current limiting.

    •Protection against short circuit, overheating, overvoltage, and reverse polarity.

    •EMI/EMC compliant.

    •Complies with European standards EN50081-1 and EN50082-1.

Specifications:

 Output Voltage: 12.5 Volts
 Input Voltage Range: 20-35 Volts
 Rated Output Current: 8 Amps
 EMI/EMC Compliance: Yes
 Connectors: ¼" push-on flat blade “quick disconnect” connectors
