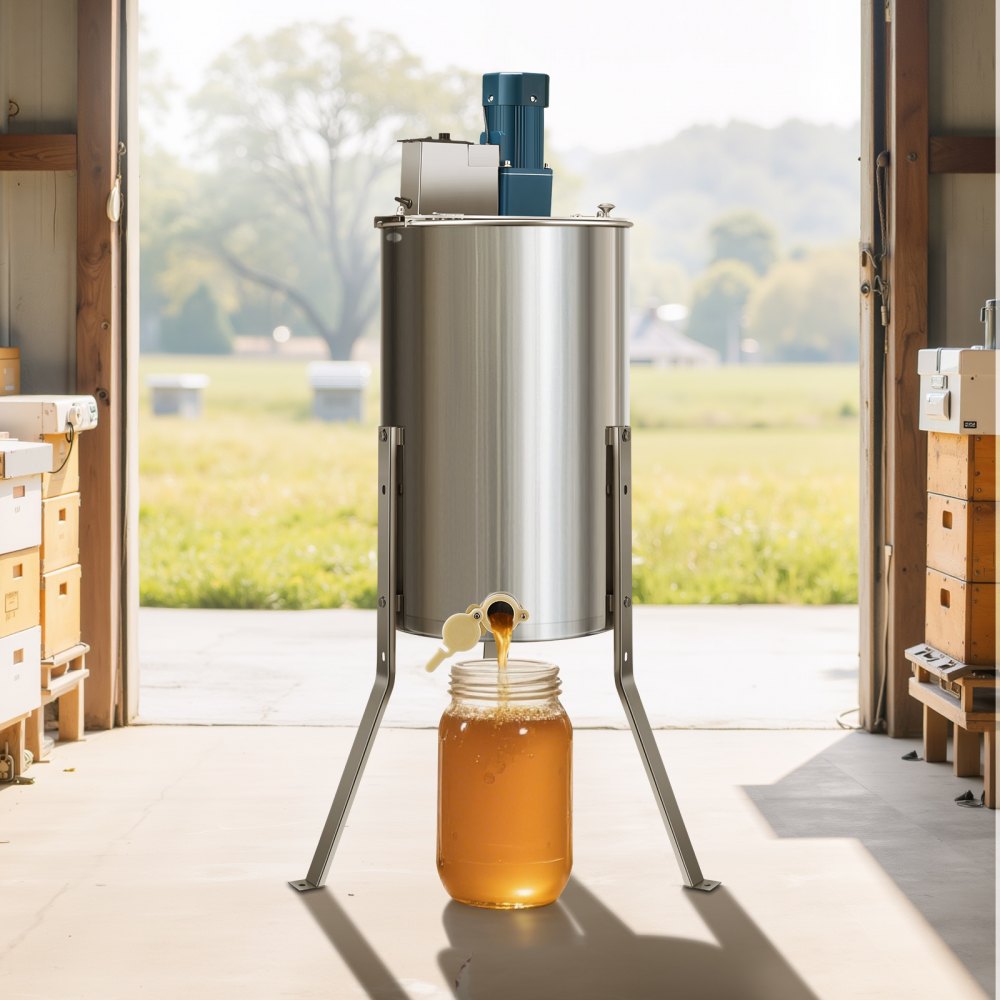

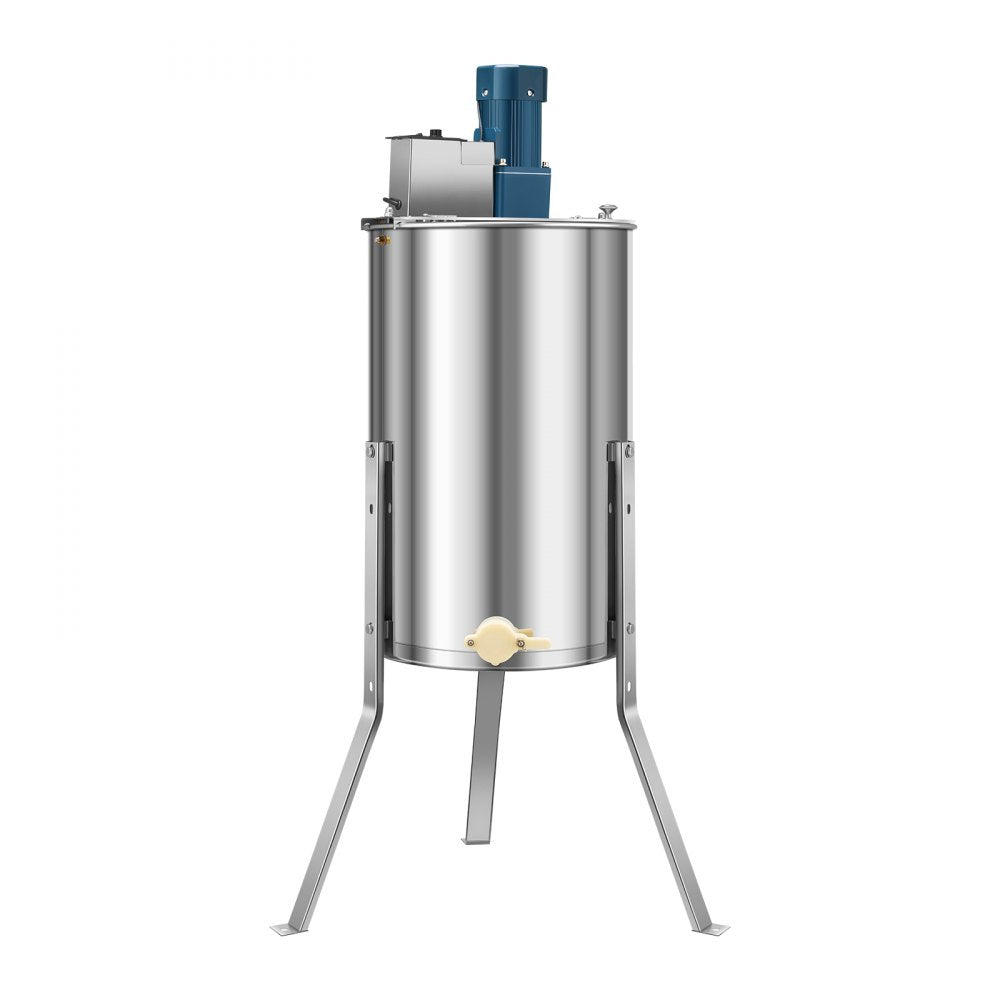

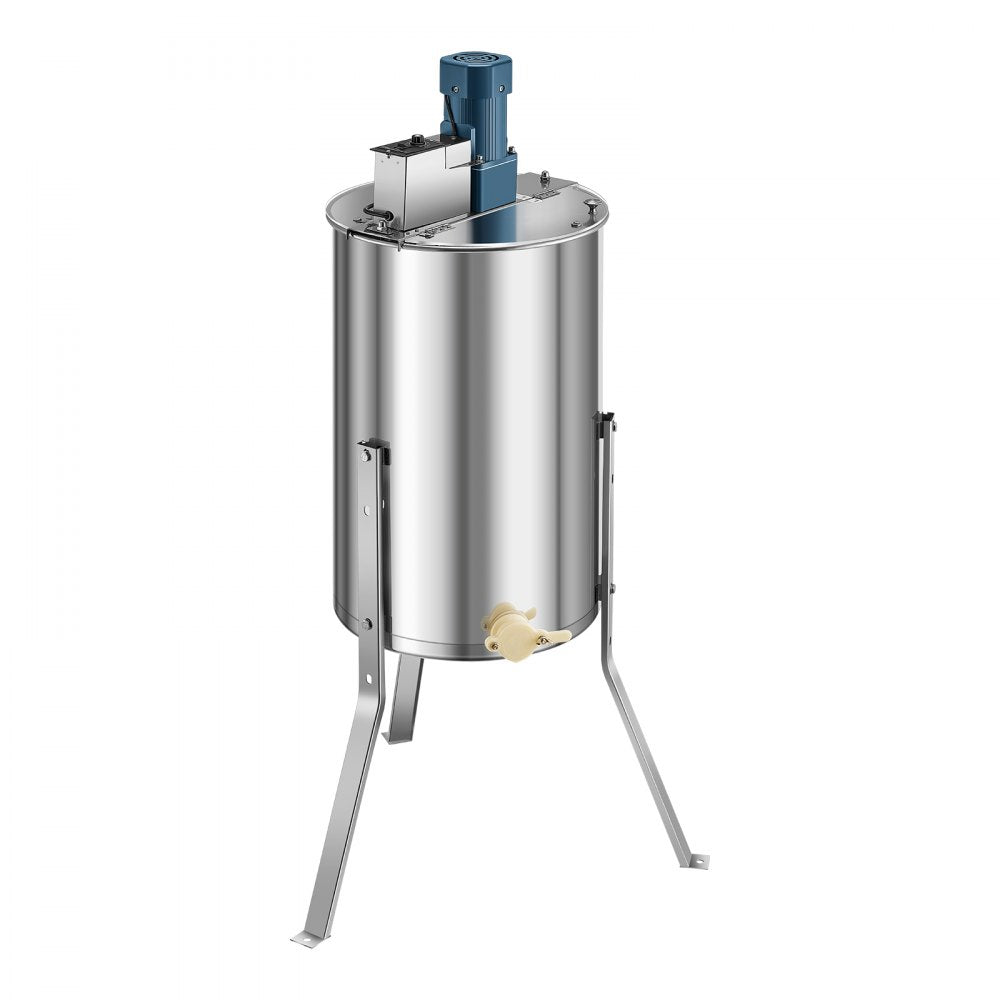

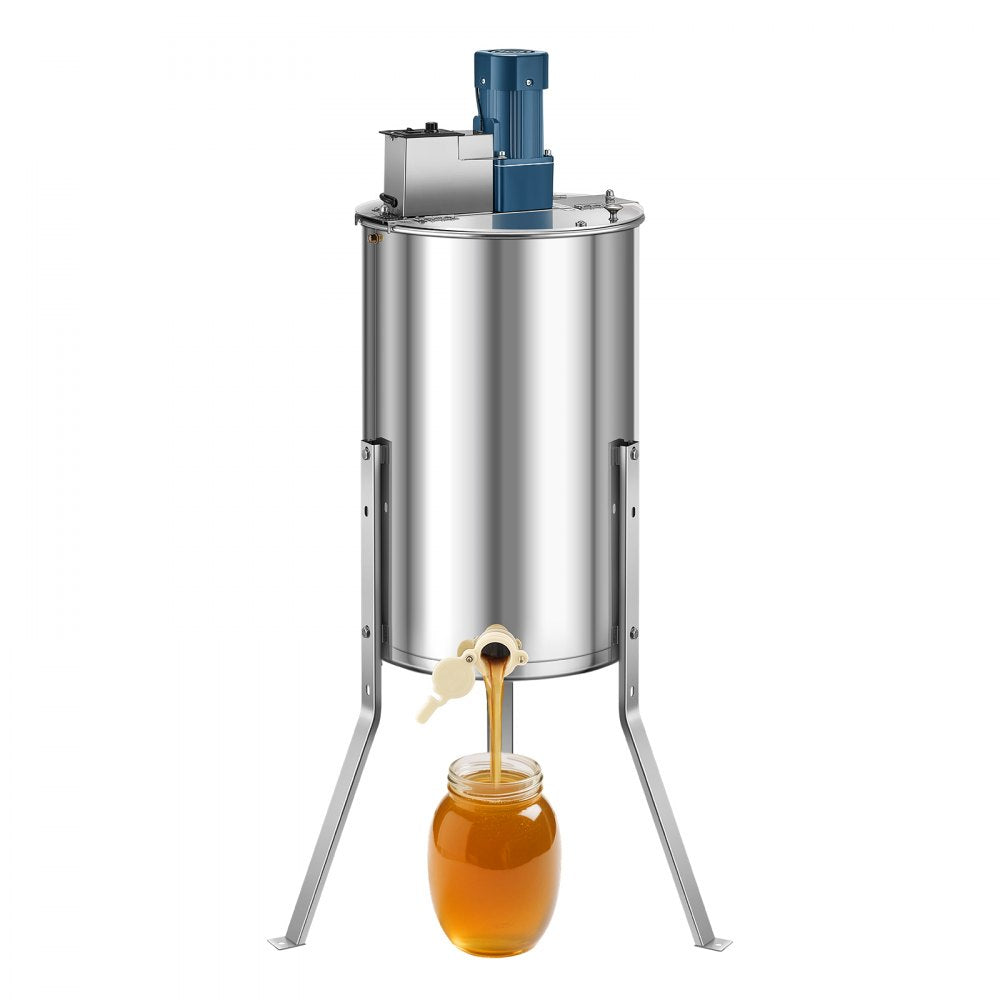

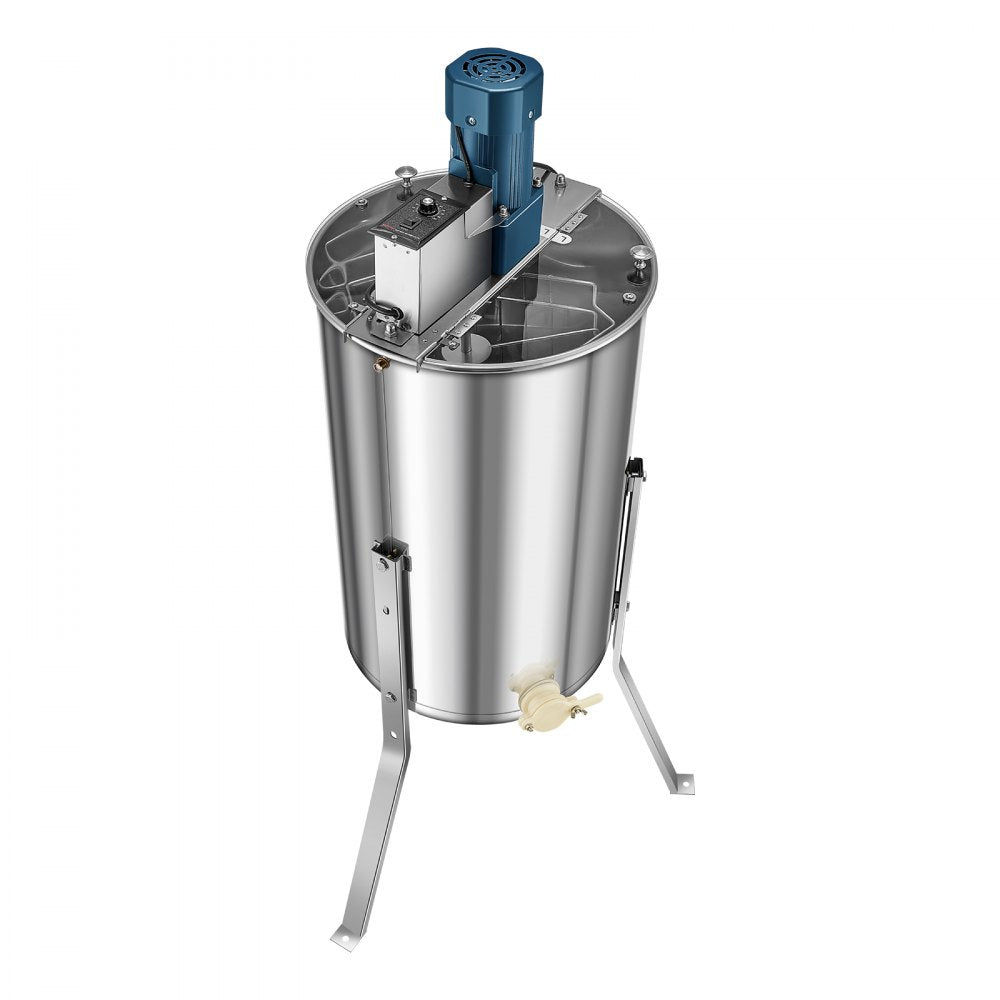

HE-15C-3E-US - 3-Frame Stainless Steel Honey Extractor with Adjustable Speed
HE-15C-3E-US - 3-Frame Stainless Steel Honey Extractor with Adjustable Speed
SKU: SKU: HE-15C-3E-US Download PDF
- HE-15C-3E-US - 3-Frame Stainless Steel Honey Extractor with Adjustable Speed
- HE-15C-3E-US - 3-Frame Stainless Steel Honey Extractor with Adjustable Speed
Couldn't load pickup availability

Description:
Optimize your beekeeping experience with this compact 3-frame honey extractor, specifically designed for small-scale operations Its innovative space-saving structure allows you to process 50% more frames than conventional models, enhancing efficiency The extractor features a slanted base for optimal honey flow and offers adjustable speed and height settings for ease of use With a sturdy lid, it’s built to withstand outdoor conditions, making it a reliable choice for beekeepers.
Features and Benefits:

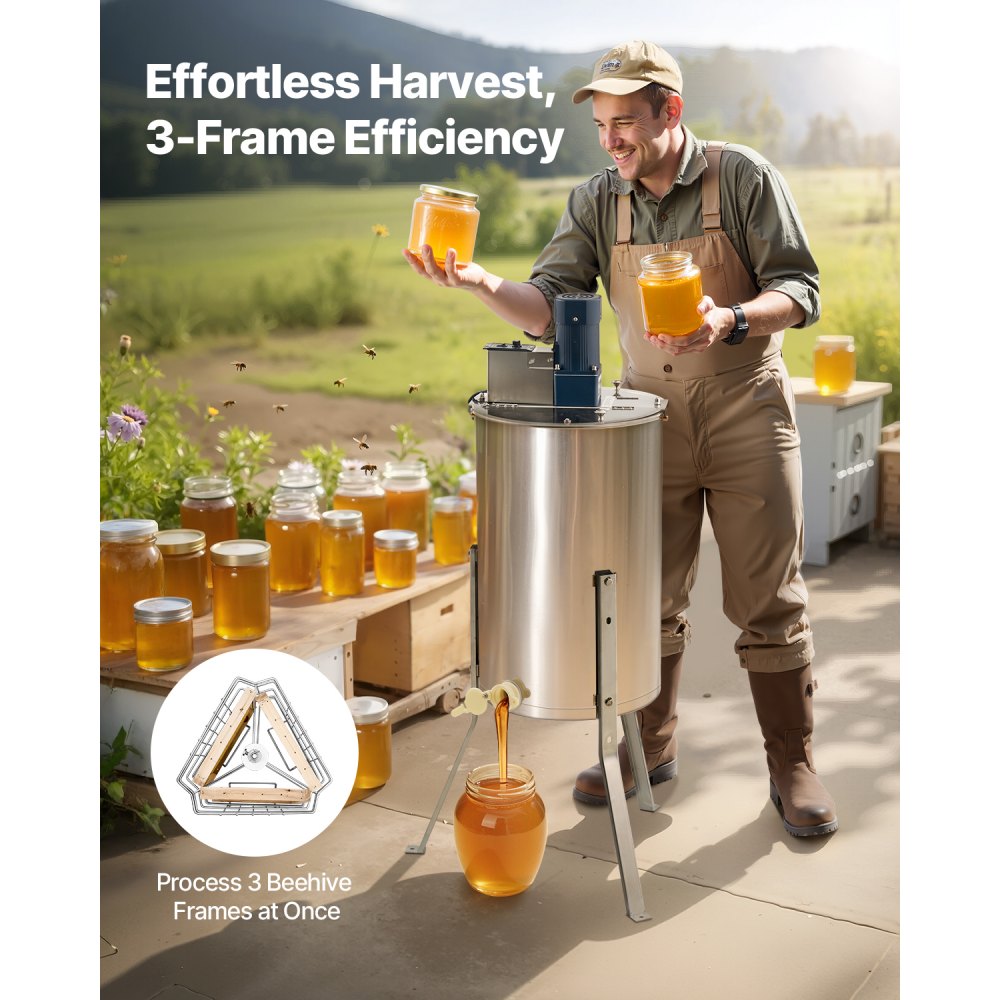

•Processes 3 medium frames at once, 50% more than traditional 2-frame models..
•Patented sloped base design directs honey to the bottom, minimizing cleaning time..

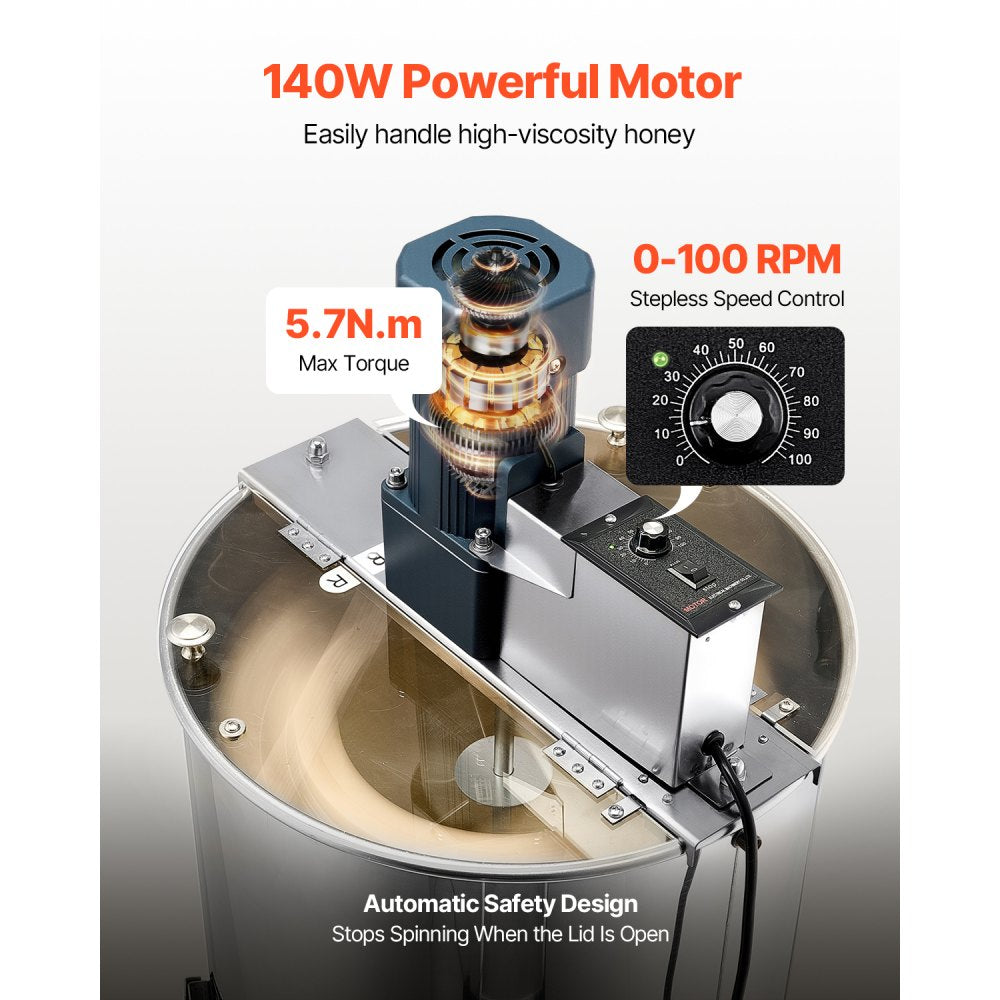

•0-100 RPM adjustable speed for customization based on honey viscosity..

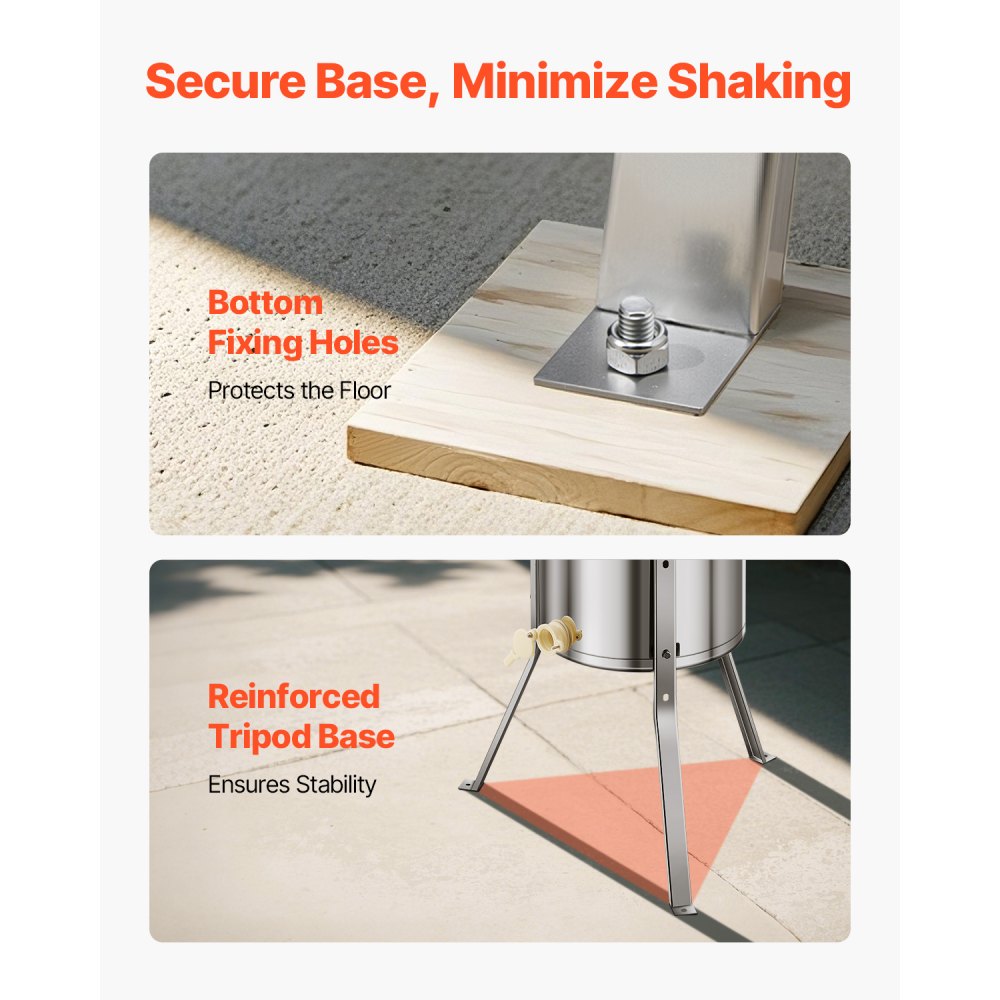

•Adjustable legs accommodate various workstations, ergonomic design reduces back strain..

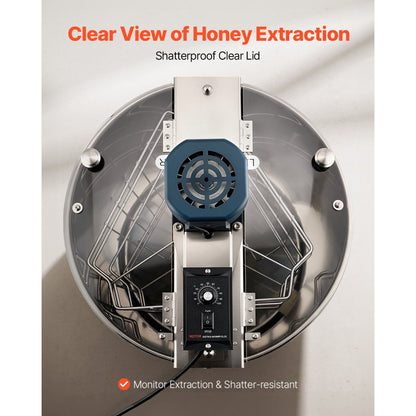

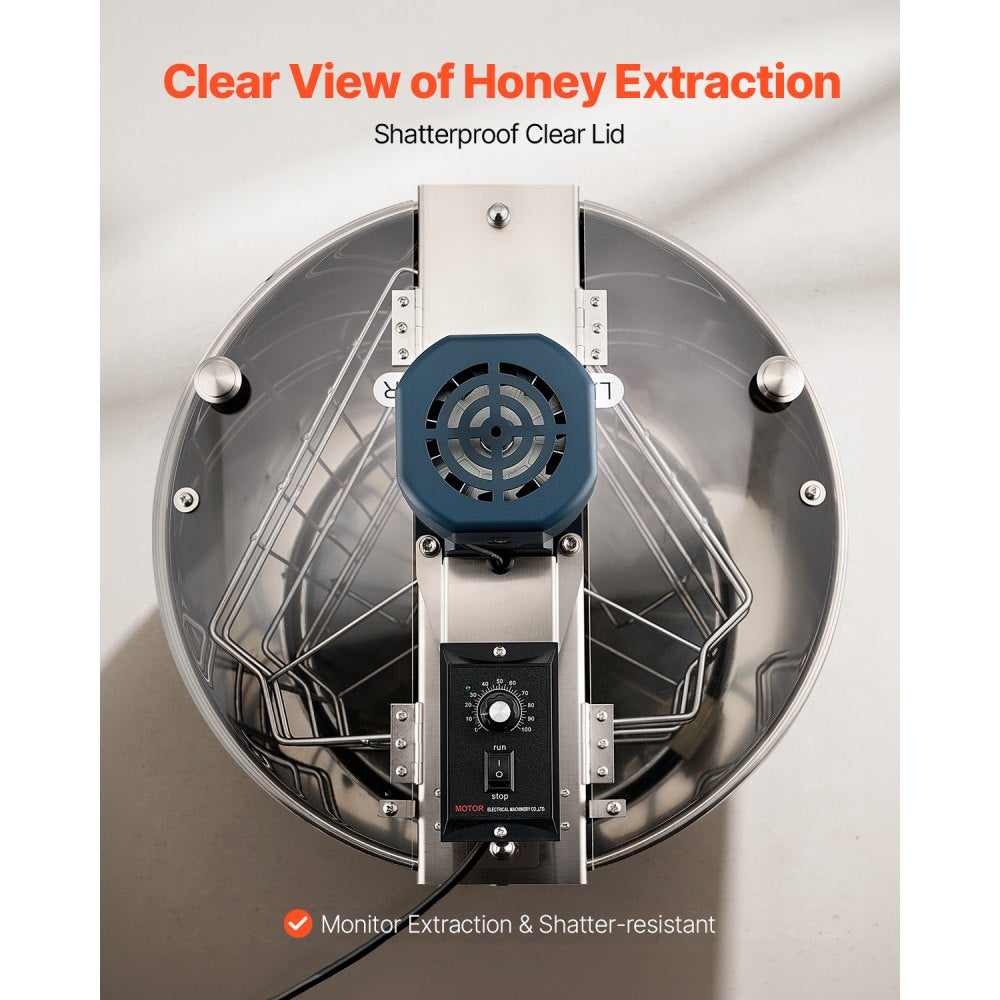

•Impact-resistant transparent lid allows real-time monitoring, durable for outdoor use..
Specifications:
| Voltage | 110-130V ~ 60Hz |
| Speed Range | 0-100 r/min |
| Automatic Stop Function (Cover Open) | Yes |
| Stall Current (Overload Protection) | 1.404-1.648A |
| Protection Level | IP20 |
| Maximum Honey Capacity | 15 KG/ 33 lbs |

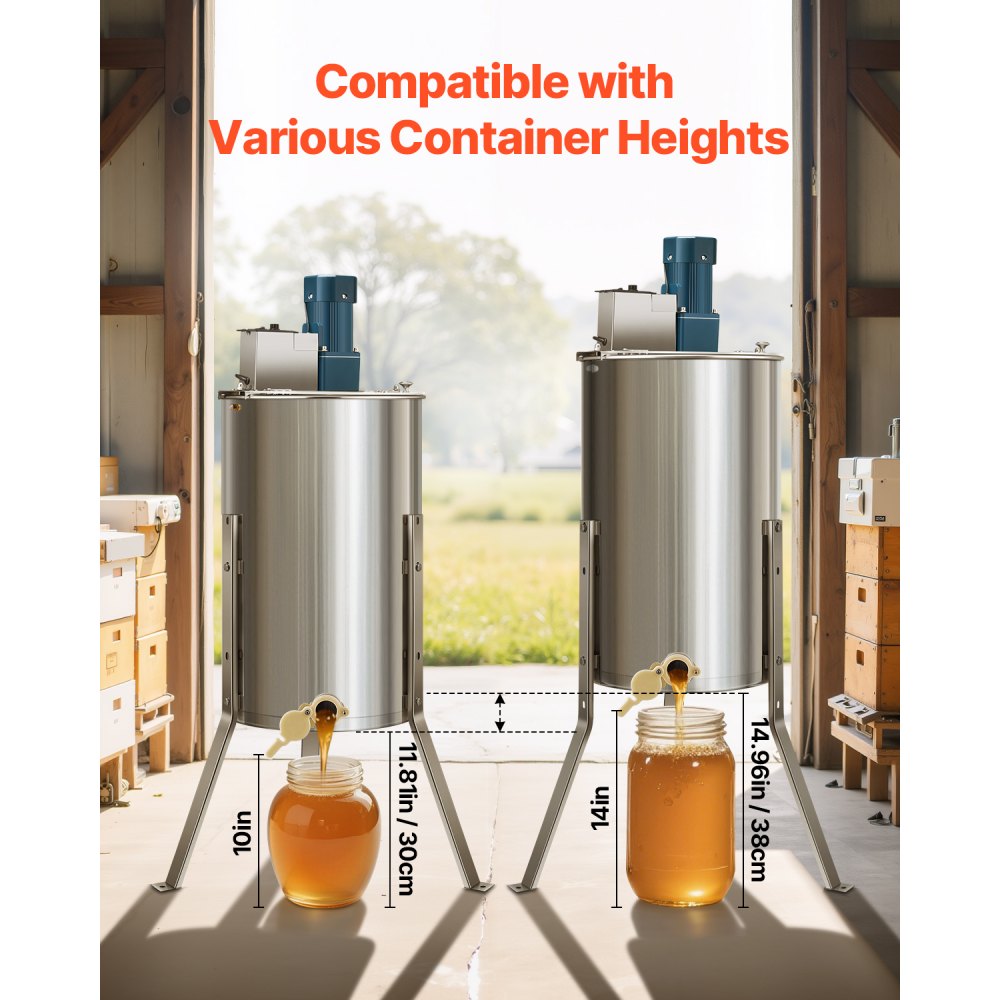

| Bucket Height (Adjustable) | 30-38 cm (11.81 - 14.96 in) |
| Number of Frames | 3 Frames |
| Compatible Frame Size | Large Frame |
| Main Material | 201 Stainless Steel |
| Product Weight | 13.9 kg (30.6 lbs) (including all accessories) |

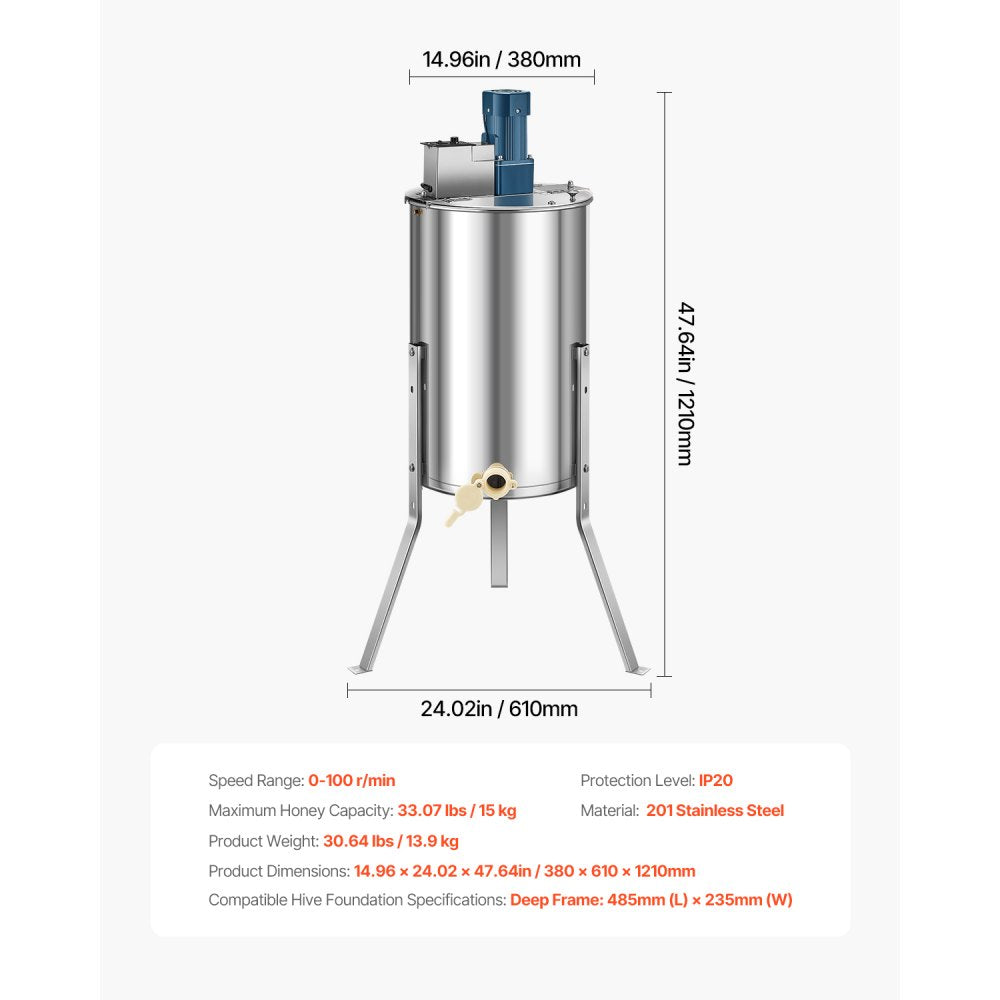

| Product Dimensions | 380 x 610 x 1210 mm (14.96 x 24.02 x 47.64 in) |
| Material of Bucket | 201 Stainless Steel |
| Wall Thickness | 0.65 ± 0.05 mm (0.026) |
| Inner Frame Size | 380 mm (L) x 380 mm (W) x 440 mm (H) / 14.96 in (L) x 14.96 in (W) x 17.32 in (H) |
| Material of Inner Frame | 201 Stainless Steel |
| Leg Size | 38 mm W x 700 mm L (1.50 in W x 27.56 in L) |
| Material of Legs | 201 Stainless Steel |
| Leg Thickness | 1.2 mm ± 0.05 mm (0.047 in) |
