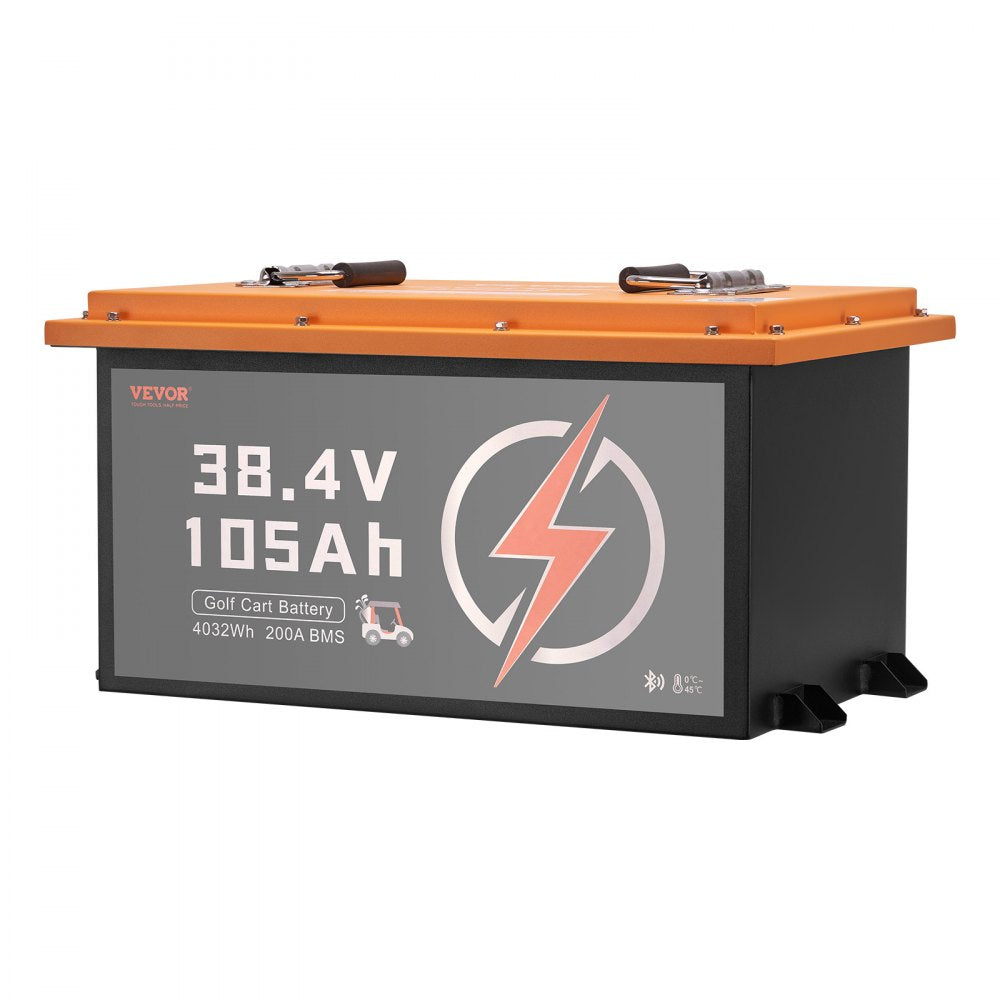

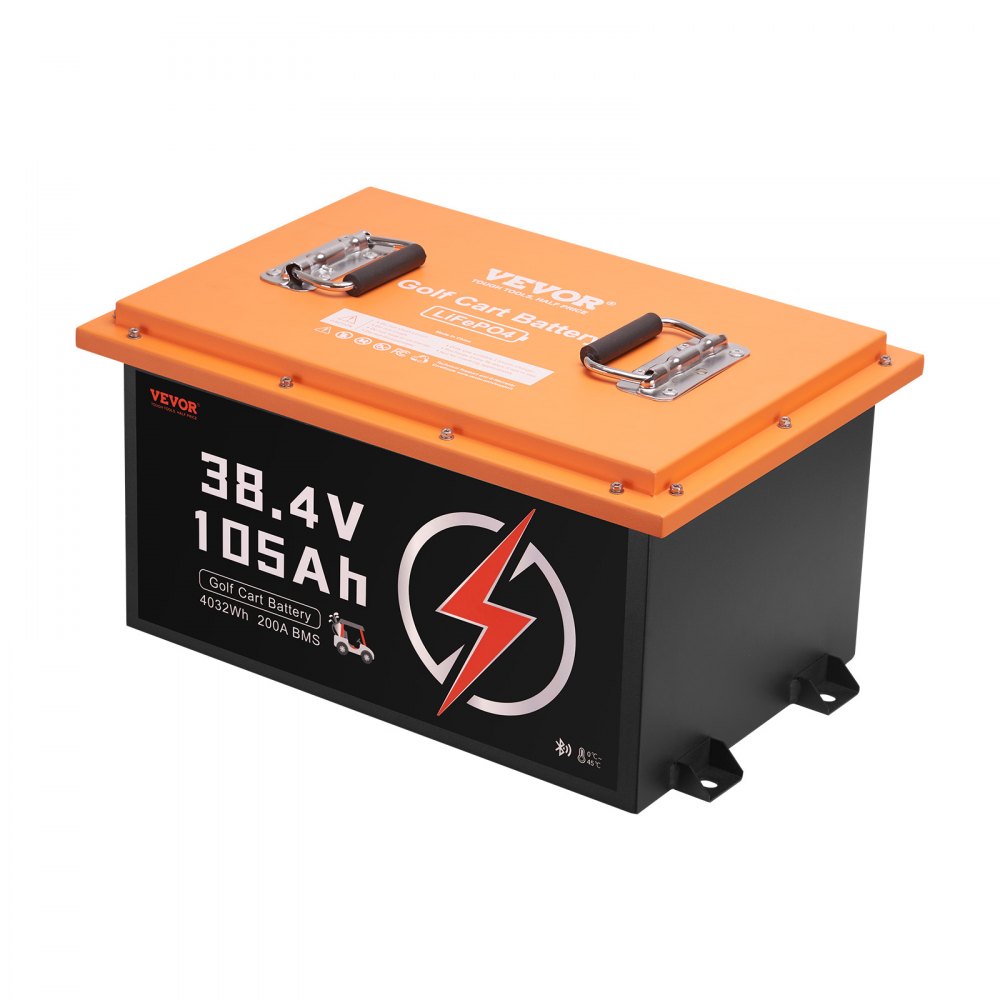

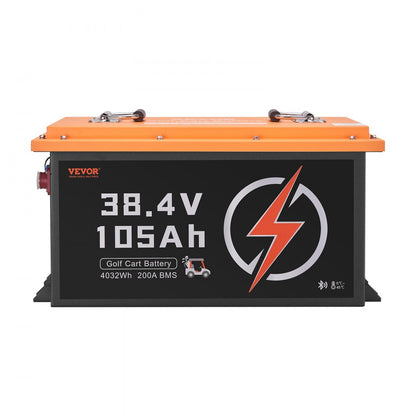

HD-38.4-100-TK-C - 105Ah 36V Lithium Battery with LCD Touch Monitor
HD-38.4-100-TK-C - 105Ah 36V Lithium Battery with LCD Touch Monitor
SKU: SKU: HD-38.4-100-TK-C Download PDF
- HD-38.4-100-TK-C - 105Ah 36V Lithium Battery with LCD Touch Monitor
- HD-38.4-100-TK-C - 105Ah 36V Lithium Battery with LCD Touch Monitor
Couldn't load pickup availability

Description:

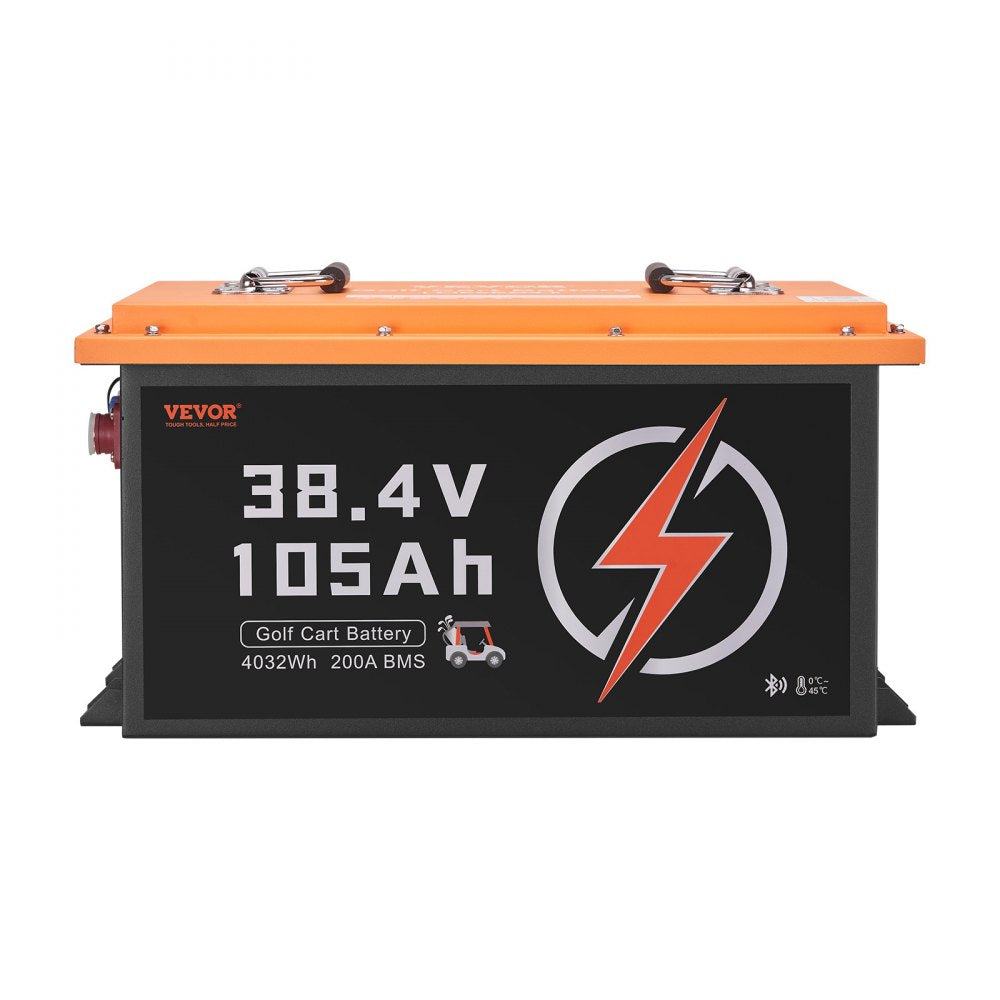

Experience powerful energy solutions with this 105Ah LiFePO4 battery, capable of providing an impressive range of 50 miles on a single charge It showcases a peak discharge rate of 600A and boasts an exceptional lifespan of over 4000 charge cycles Weighing only 8311 lbs (377 kg), its compact design allows for straightforward installation, making it a smart alternative to traditional lead-acid batteries.

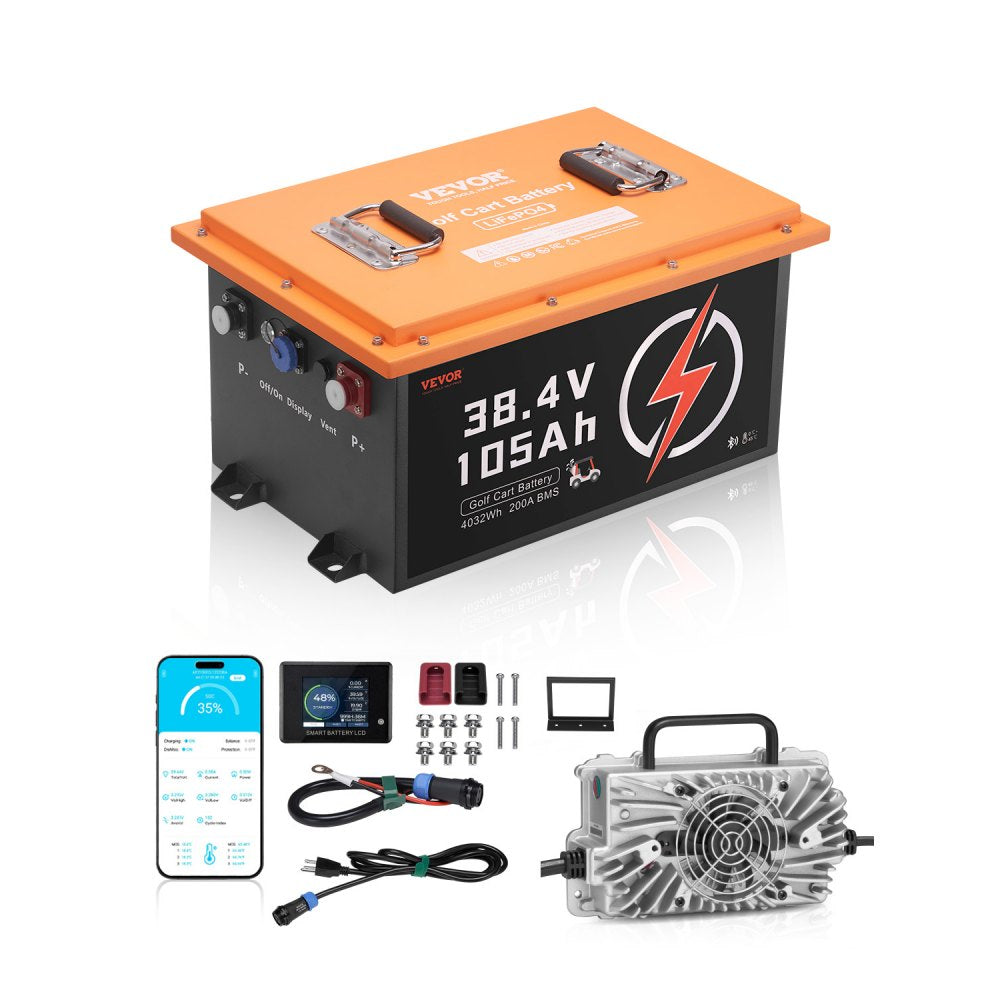

Included with the battery is a 20A charger compatible with a 438VDC output, which can fully recharge the device in just 5 hours For added functionality, this battery is equipped with a 28-inch LCD touchscreen and Bluetooth connectivity, enabling real-time monitoring of battery performance.
Features and Benefits:
•Includes a 2.8 inch LCD touchscreen for instant battery information access.

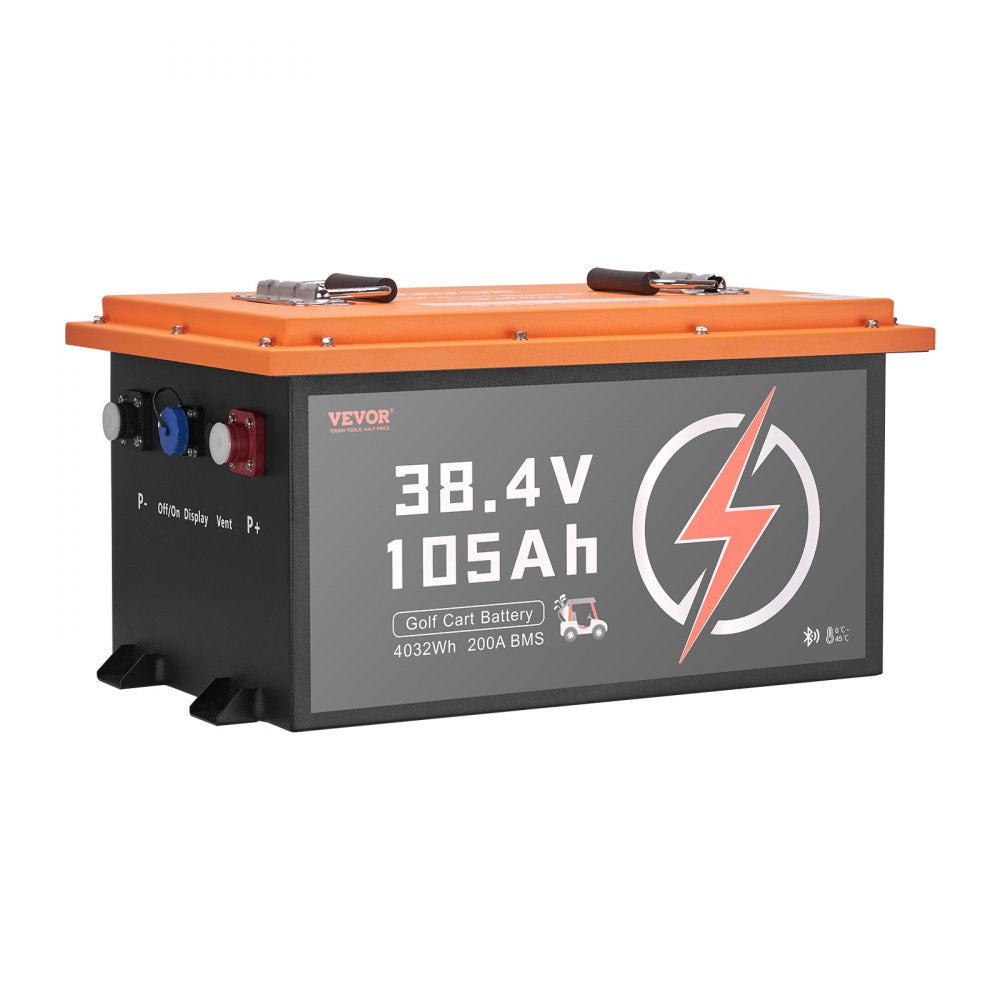

•Features an aviation-grade connector for flexible wiring.
•Has an IP65 waterproof rating for weather resistance.
•Designed for 36V golf carts.

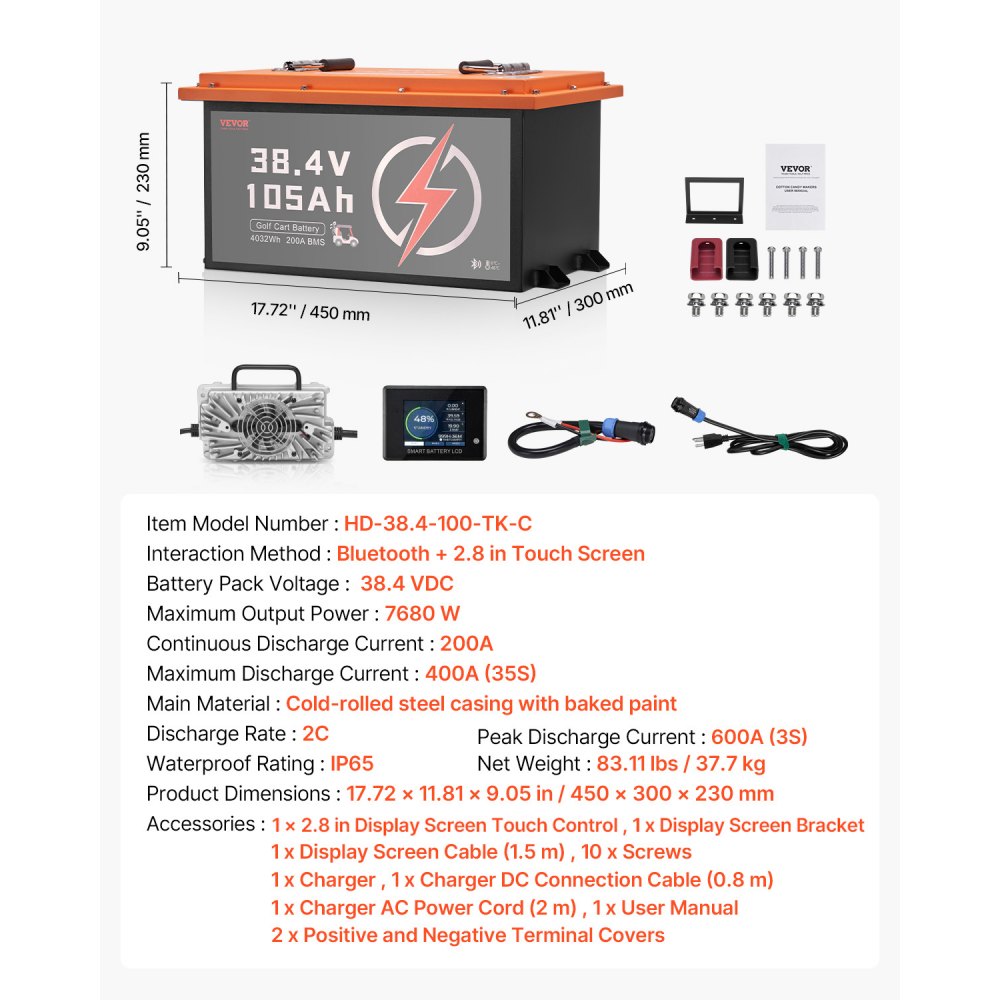

Specifications:
| Battery Voltage | 38.4 VDC |
| Maximum Output Power | 7680 W |
| Continuous Discharge Current | 200A |
| Maximum Discharge Current | 400A (35S) |
| Peak Discharge Current | 600A (3S) |
| Discharge Rate | 2C |
| Waterproof Rating | IP65 |
| Main Material | Cold-rolled steel casing with baked paint |
| Product Dimensions | 17.72 x 11.81 x 9.05 in / 450 x 300 x 230 mm |
