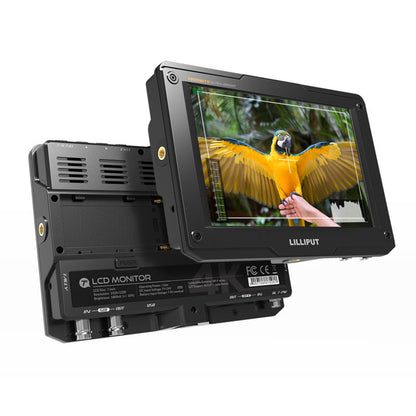

H7S 7" Ultra Brightness On-Camera Monitor
H7S 7" Ultra Brightness On-Camera Monitor
SKU: SKU: H7S
Couldn't load pickup availability
Description:
H7S 7" Ultra Brightness On-Camera Monitor provides exceptional display capabilities with a size of 7 inches, a resolution of 1920 x 1200, brightness levels reaching 1800cd/m² (+/- 10% @ center), and an aspect ratio of 16:10 The monitor offers a contrast ratio of 1200:1, with a wide viewing angle of 160°/160° (H/V) It supports various video inputs including 1×3G SDI and 1×HDMI 14 and provides video loop output through the same formats.
This monitor's specifications meet a wide array of supported formats and audio in/out capabilities, making it suitable for professional filming needs.
Features and Benefits:
•Ultra bright display with 1800cd/m² brightness.
•High resolution of 1920 x 1200.
•Wide viewing angle of 160°/160°.
•Versatile video input options including SDI and HDMI.
•Built-in speaker and audio input/output capabilities.
•Ideal for professional video production and monitoring.
•Suitable for use on-camera for various filming scenarios.
Specifications:
| Display Size | 7 inches |
| Resolution | 1920 x 1200 |
| Brightness | 1800cd/m² (+/- 10% @ center) |
| Aspect Ratio | 16:10 |
| Contrast | 1200:1 |
| Viewing Angle | 160°/160° (H/V) |
| Video Input SDI | 1×3G |
| Video Input HDMI | 1×HDMI 1.4 |
| Video Loop Output SDI | 1×3G |
| Video Loop Output HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| Supported In / Out Formats HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| Audio In/Out (SDI) | 12ch 48kHz 24-bit |
| Audio In/Out (HDMI) | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Operating Power | ≤15W |
| DC Input | DC 7-24V |
| Compatible Batteries | NP-F Series |
| Input Voltage (Battery) | 7.2V nominal |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~60℃ |
| Dimensions | 225×155×23mm |
