H7531 Thermometer Hygrometer Barometer with Ethernet Interface and Relays

H7531 Thermometer Hygrometer Barometer with Ethernet Interface and Relays

SKU: SKU: H7531   Download PDF

Qty:
Regular price Now $100.00   Web pricing policy
Regular price BEFORE   Sale price Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

This device serves as a thermometer, hygrometer, and barometer, equipped with an Ethernet interface and relay outputs for monitoring ambient temperature, relative humidity, and atmospheric pressure It includes a sensor designed for online air monitoring and features binary inputs for signal detection The high precision capacitive polymer sensor ensures long-term calibration stability and accuracy, and it can interpret humidity measurements in various forms such as dew point temperature and specific humidity.

Supplied with a temperature and humidity probe with a 1-meter cable, it can also accommodate cables of lengths 2 meters or 4 meters as an option.

Features and Benefits:

    •Online monitoring of temperature, relative humidity, and atmospheric pressure.

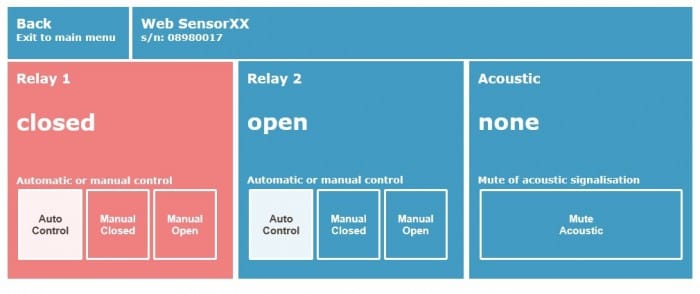

    •Includes two relay outputs for controlling other devices.

    •High precision capacitive polymer sensor for stability and accuracy.

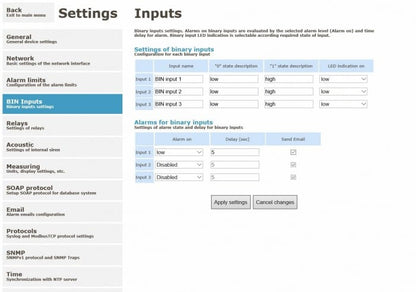

    •Binary inputs to detect two-state signals.

    •Measured values interpreted as dew point, absolute humidity, specific humidity, and more.

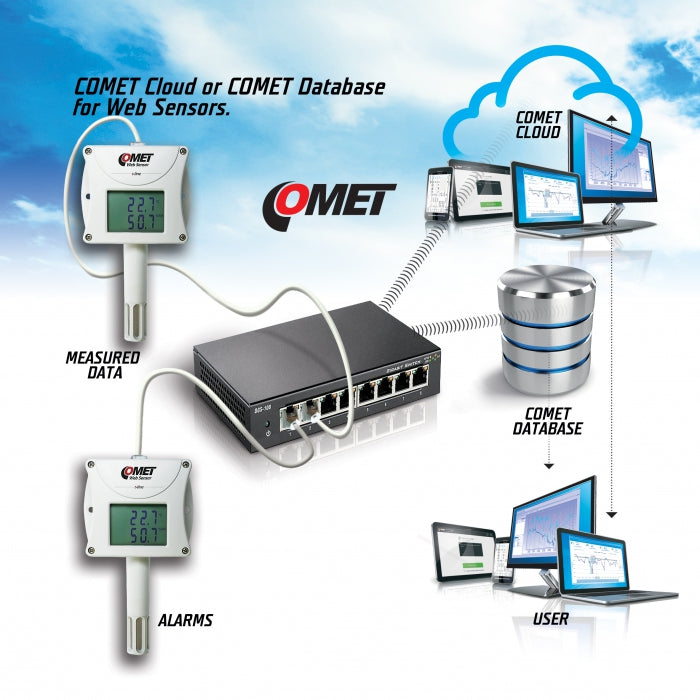

    •Processing and analyzing data via COMET Cloud and 3rd party system integration.

Specifications:

 Temperature Measuring Range -30 to +105 °C
 Temperature Accuracy ±0.4 °C
 Temperature Resolution 0.1 °C
 Humidity Measuring Range 0 to 100 % RH
 Humidity Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Atmospheric Pressure Measuring Range 600 to 1100 hPa
 Atmospheric Pressure Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
 Atmospheric Pressure Resolution 0.1 hPa
 Relay Outputs Quantity 2
 Maximal Voltage 50 V
 Maximal Current 2 A
 Maximal Power 60 VA
 Binary Inputs Quantity 3
 Operating Temperature -30 to +80 °C
 Communication Protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
 Power 9-30 Vdc
 Protection Class IP40
 Dimensions 136 x 213 x 45 mm; stem length 75 mm
 External Probe Cable Length 1 meter
