H7530 - Thermometer Hygrometer Barometer with Ethernet Interface and Relays

H7530 - Thermometer Hygrometer Barometer with Ethernet Interface and Relays

SKU: H7530   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The H7530 is a thermometer hygrometer barometer designed for online monitoring of ambient temperature, relative humidity, and atmospheric pressure, featuring two relay outputs and a humidex reading This sensor operates without aggressive substances and includes three binary inputs for detection of two-state signals, making it suitable for controlling other devices with its relay outputs The high precision capacitive polymer sensor ensures long-term calibration stability and exceptional accuracy, converting measured values into different humidity interpretations such as dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

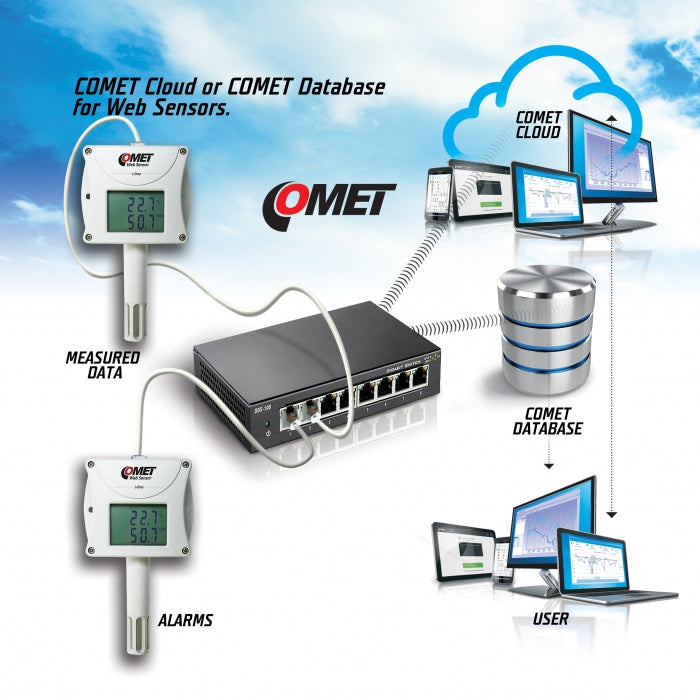

The processing and analysis of measured data can be executed online via COMET Cloud, COMET Database software, or integration into third-party systems.

Features and Benefits:

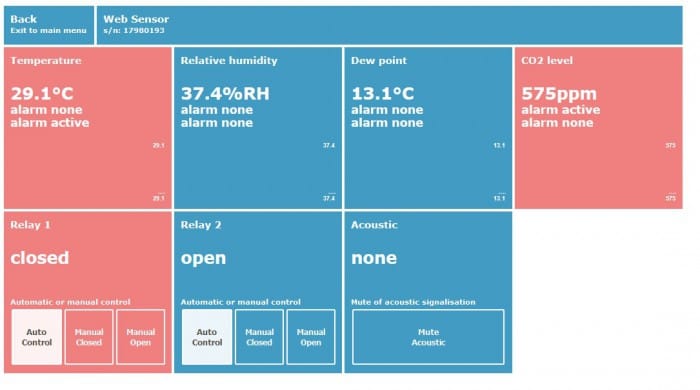

    •Online monitoring of temperature, humidity and atmospheric pressure.

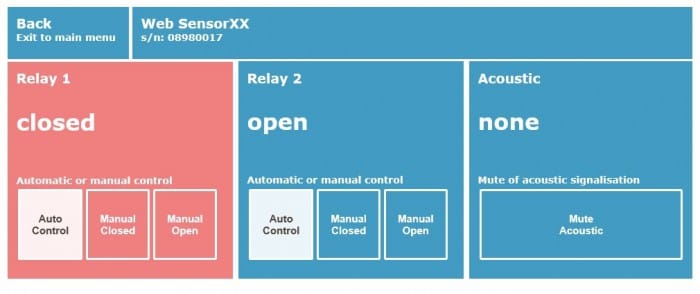

    •Two relay outputs for device control.

    •High precision capacitive polymer sensor for accuracy and calibration stability.

    •Conversion of measured values into multiple interpretations.

    •Integration capabilities with COMET Cloud and third-party systems.

Specifications:

 Temperature Sensor Measuring Range -30 to +80 °C
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring Range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Atmospheric Pressure Sensor Measuring Range 600 to 1100 hPa
 Atmospheric Pressure Sensor Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
 Atmospheric Pressure Sensor Resolution 0.1 hPa
 Relay Outputs Quantity 2
 Relay Outputs Maximal Voltage 50 V
 Relay Outputs Maximal Current 2 A
 Relay Outputs Maximal Power 60 VA
 Binary Inputs Quantity 3
 General Operating Temperature -30 to +80 °C
 Output Ethernet
 Measuring Interval 2 s
 Power 9-30 Vdc
 Protection Class IP40
 Dimensions 136 x 213 x 45 mm; stem length 75 mm
