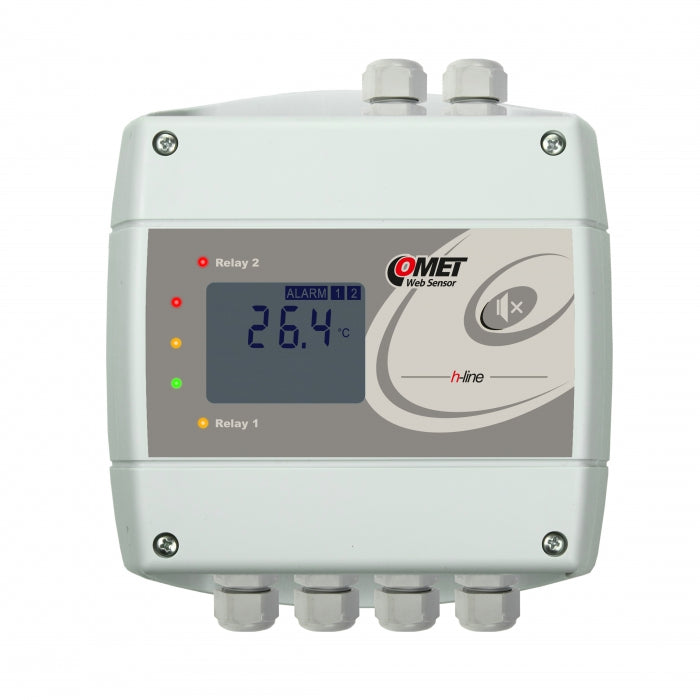

H4531 - Thermometer with Ethernet interface and relays

H4531 - Thermometer with Ethernet interface and relays

SKU: H4531 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

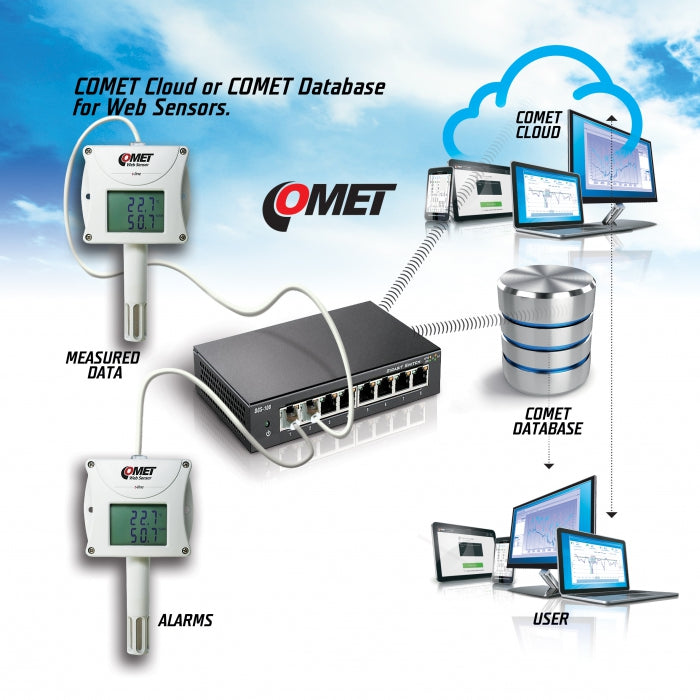

The H4531 is designed for online monitoring of temperature and supports Pt1000 sensors with two relay outputs It features three binary inputs for detecting two-state signals, allowing control of other devices through the relay outputs The data can be processed and analyzed online in the COMET Cloud and COMET Database software, as well as integrated into third-party systems.

Features and Benefits:

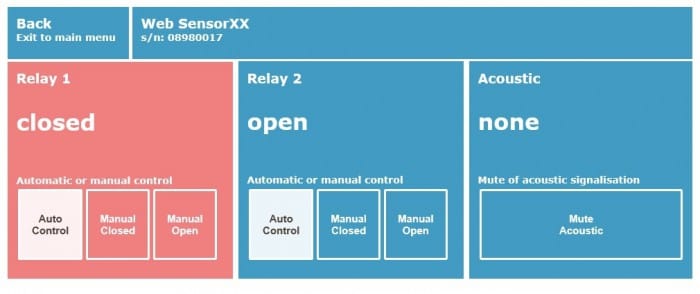

    •Temperature sensor with two relay outputs for versatile control.

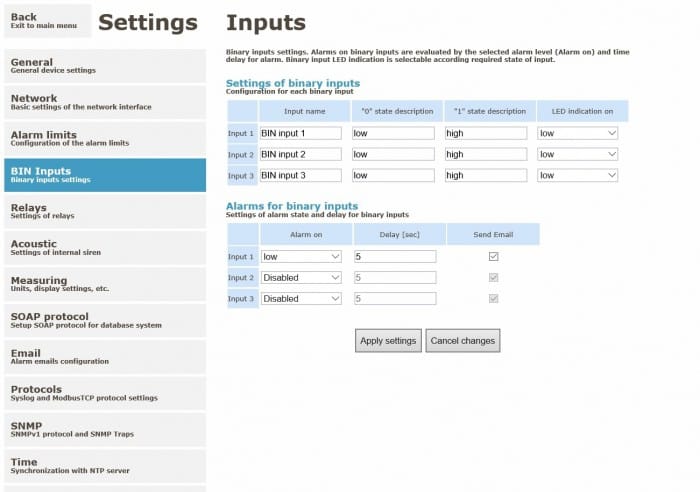

    •Three binary inputs for detecting two-state signals.

    •Compatible with Pt1000 external probe for wide measuring range.

    •Data processing and analysis available through COMET Cloud and software integration.

    •Supports various communication protocols including ModbusTCP and SNMP.

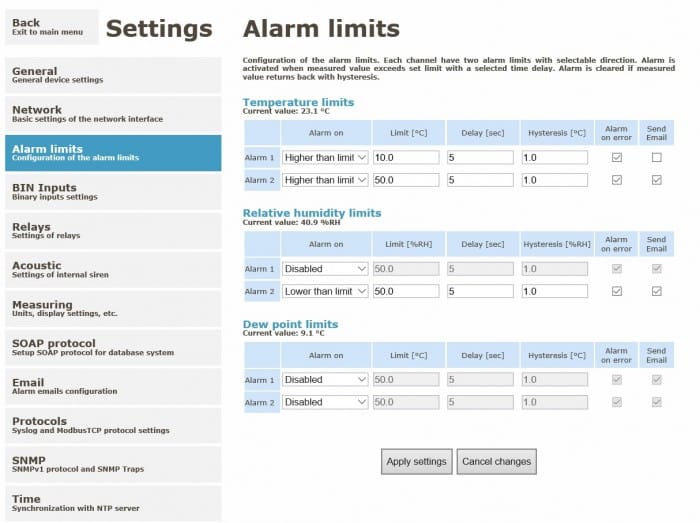

    •Offers alarm notifications via E-mail and other protocols.

Specifications:

 Measured value: Temperature
 Measuring range: -200 to +600 °C
 Accuracy: ±0.2 °C
 Resolution: 0.1 °C
 RELAY OUTPUTS - Quantity: 2
 RELAY OUTPUTS - Maximal voltage: 50 V
 RELAY OUTPUTS - Maximal current: 2 A
 RELAY OUTPUTS - Maximal power: 60 VA
 BINARY INPUTS - Quantity: 3
 BINARY INPUTS - Signal for binary input: dry contact, open collector or two-state voltage signal
 BINARY INPUTS - Minimum pulse duration: 500 ms
 Operating temperature: -30 to +80 °C
 Channels: 1x external temperature probe
 Acoustic alarm: from built-in beeper - switchable
 Output: Ethernet
 Measuring interval: 2 s
 Range of humidity sensor temperature compensation: all temperature range
 Available temperature units: degrees Celsius, degrees Fahrenheit
 Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
 Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog
 Power: 9-30 Vdc
 Protection class: IP40
 Dimensions: 136 x 117 x 45 mm
