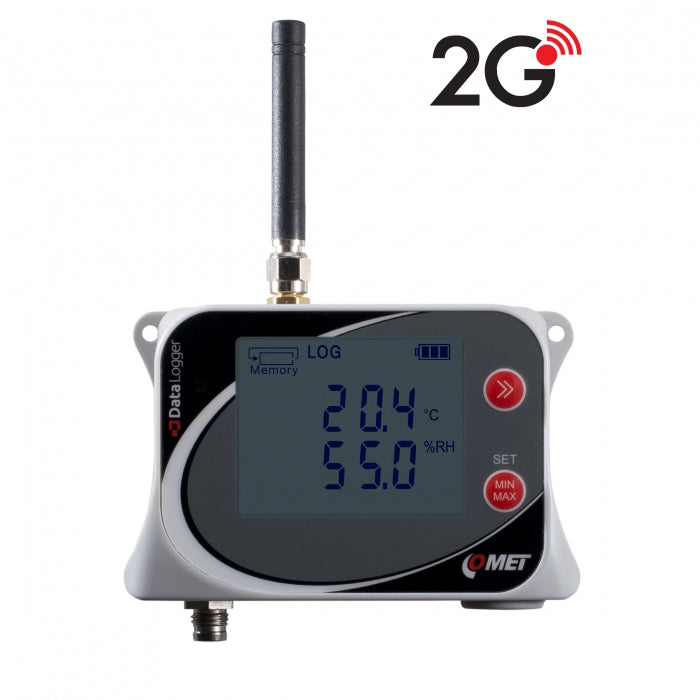

GSM Datalogger IoT Wireless Temperature and Relative Humidity for external probe

GSM Datalogger IoT Wireless Temperature and Relative Humidity for external probe

SKU: SKU: U3121M   Download PDF

Qty:
Regular price Now $100.00   Web pricing policy
Regular price BEFORE   Sale price Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

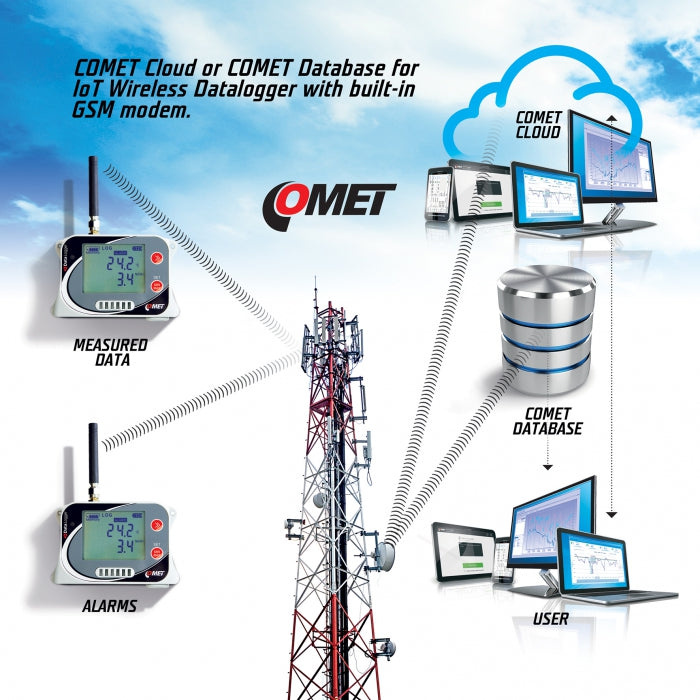

The GSM datalogger is specifically designed to monitor and log temperature and humidity data from an external probe In cases where measured values exceed the set limits, it is capable of sending alerts via SMS and JSON messages through a GPRS data connection These values can also be uploaded to the COMET Cloud, which functions as an extensive monitoring, alarm, and analysis system Users have the option to schedule the regular dispatch of JSON messages to the COMET Database, with customizable time intervals for updates.

Local alarms are indicated through LED, LCD displays, and acoustically via a built-in beeper The device records data in non-volatile electronic memory and enables transfer to a PC using the included USB-C cable Notably, the temperature and humidity probe is sold separately, allowing users to select a probe of suitable length and configuration from the optional accessories A Traceable calibration certificate is provided, adhering to the metrological traceability standards set by EN ISO/IEC 17025.

Features and Benefits:

    •Records temperature and humidity from an external probe.

    •Sends alerts via SMS and JSON messages when set limits are exceeded.

    •Data can be uploaded to the COMET Cloud for monitoring and analysis.

    •Regular sending of JSON messages to COMET Database is adjustable.

    •Local alarm indications via LED, LCD, and built-in beeper.

    •Transfers data to PC using USB-C cable.

    •Includes Traceable calibration certificate with metrological traceability.

Specifications:

 Measuring range (Temperature Sensor) according to the connected probe Digi/E
 Accuracy (Temperature Sensor) according to the connected probe Digi/E
 Resolution (Temperature Sensor) 0.1 °C
 Response time (Temperature Sensor) 8 min
 Measuring range (Humidity Sensor) according to the connected probe Digi/E
 Accuracy (Humidity Sensor) according to the connected probe Digi/E
 Resolution (Humidity Sensor) 0.1% RH
 Measuring range (Dew Point) according to the connected probe Digi/E
 Accuracy (Dew Point) according to the connected probe Digi/E
 Resolution (Dew Point) 0.1 °C
 GSM Modem Parameters Quad-band 850/900/1800/1900MHz, Compliant to GSM Phase2/2+, GPRS mobile station class B, Class 4 2W @ 850/900MHz, Class 1 1W @ 1800/1900MHz
 Operating temperature -20 to +60 °C
 Channels 1x connectable temperature+humidity probe
 Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
 Recording interval to the internal memory adjustable from 1 second to 24 hours
 Recording interval to the COMET Cloud from 5 minutes
 Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min
 Recording mode noncyclic - data logging stops after filling the memory; cyclic - after filling memory oldest data is overwritten by new
 Real time clock year, leap year, month, day, hour, minute, second
 Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh
 Protection class IP67
 Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
