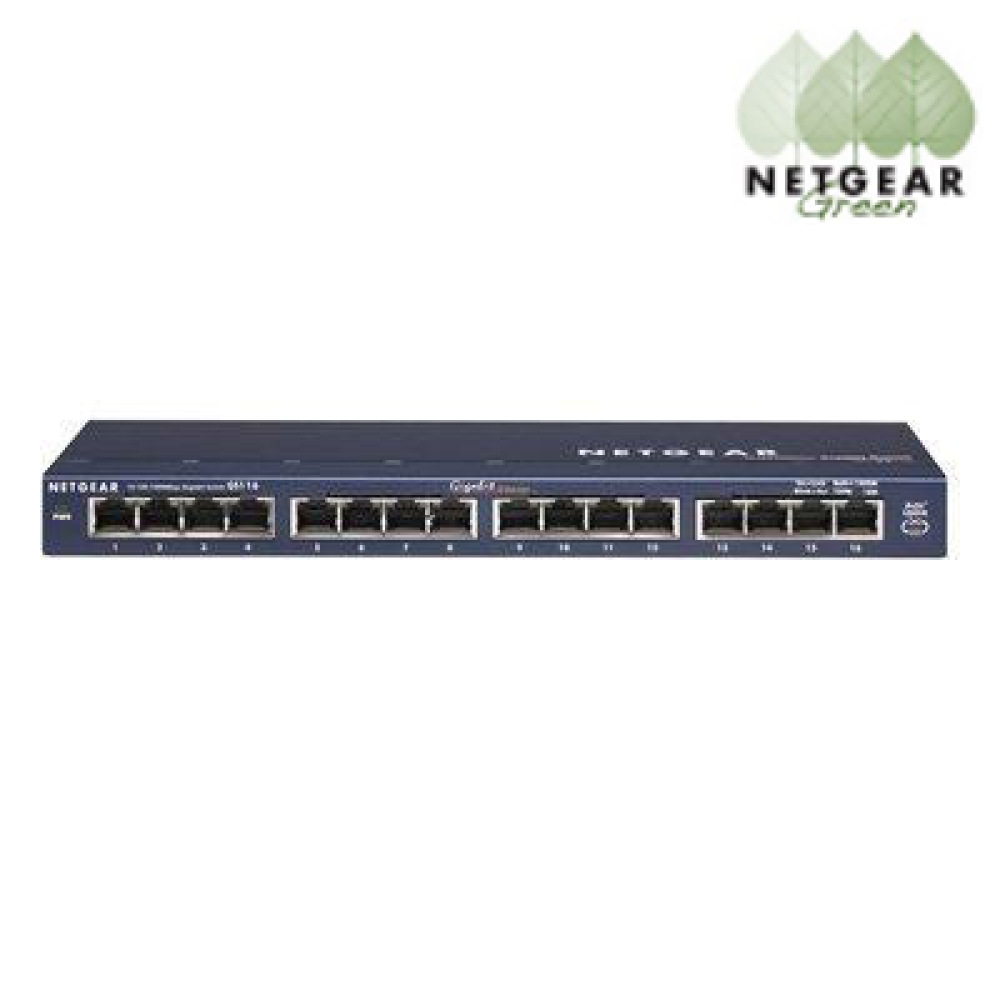

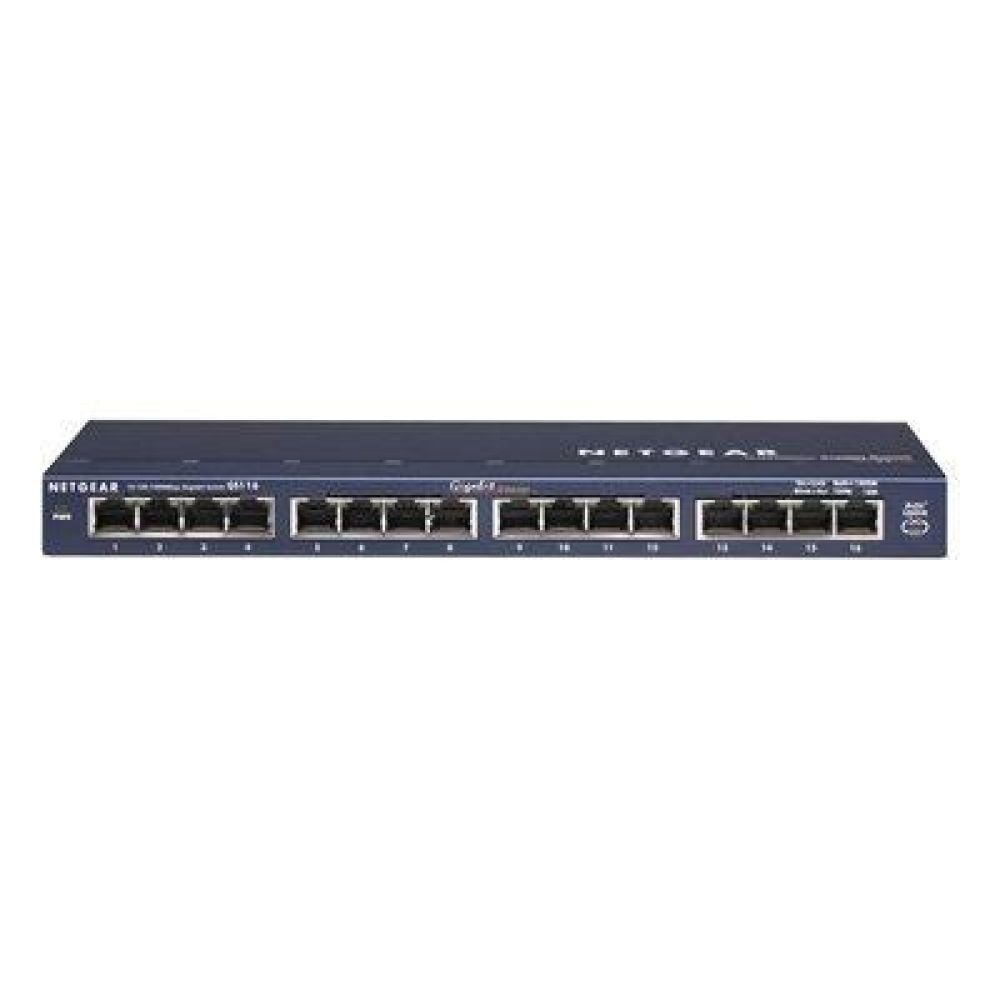

GS116NA - 16-Port Gigabit Desktop Switch, 1000 Mbps, Fan-less Design

GS116NA - 16-Port Gigabit Desktop Switch, 1000 Mbps, Fan-less Design

SKU: SKU: GS116NA Download PDF

Variant:
  • GS116NA - 16-Port Gigabit Desktop Switch, 1000 Mbps, Fan-less Design
Regular price Now $142.99
Regular price BEFORE   $0.00 Sale price Now $142.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Netgear GS116NA, an efficient unmanaged switch equipped with 16 ports, each supporting Gigabit speeds of 10/100/1000 Mbps This device is perfect for optimizing networking in smaller environments, enabling rapid file transfers at up to 1000 Mbps It’s compatible with both current and future VoIP systems, making it a versatile addition Designed with a compact and fan-free structure, the GS116 is suitable for placement on a desktop or for wall mounting without producing noise.

Additionally, it features automatic Ethernet switching and traffic priority tagging, enhancing its adaptability for various networking needs.

Features and Benefits:

    •16 auto-sensing 10/100/1000 Mbps UTP ports.

    •Store-and-forward forwarding mode.

    •Non-blocking bandwidth of 32 Gbps.

    •High forwarding rates for various ports.

    •Low latency for fast data transmission.

    •512 Kbytes queue buffer memory per port.

    •Acoustic noise level of 0 dB for silent operation.

    •Long mean time between failures (MTBF) of 393,000 hours (~45 years).

    •Power efficient with 12V DC, 1.5A, and 18W consumption.

    •Complies with various electromagnetic standards.

    •Suitable for workgroups upgrading to Gigabit speeds.

    •Ideal for integrating VoIP infrastructure.

    •Supports large file transfers and high-speed data applications.

Specifications:

 Network Ports 16 auto-sensing 10/100/1000 Mbps UTP ports
 Forwarding Mode Store-and-forward
 Performance Bandwidth 32 Gbps (non-blocking)
 Forward Rate (10 Mbps port) 14,800 packets/sec
 Forward Rate (100 Mbps port) 148,000 packets/sec
 Forward Rate (1000 Mbps port) 1,488,000 packets/sec
 Latency (100 to 100 Mbps) 40 µ (max)
 Latency (1000 to 1000 Mbps) 10 µ (max)
 Queue Buffer Memory 512 Kbytes per port
 MAC Address Database 8,000
 Acoustic Noise 0 dB
 Heat Dissipation 38.8 Btu/hr
 Mean Time Between Failures (MTBF) 393,000 hours (~45 years)
 Power Consumption 12V DC, 1.5A, 18W; plug is localized to country of sale
 Status LEDs Power, link, speed and activity
 Electromagnetic Compliance CE Class A, FCC Part 15 Class A, EN 55022 (CISPR 22), EN 55024, VCCI Class A, C-Tick Class A
 Standards Compliance IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet
 Supports Jumbo Frames up to 16 KB
 System Requirements Category 5e cables or better, network card for each PC or server, network software
