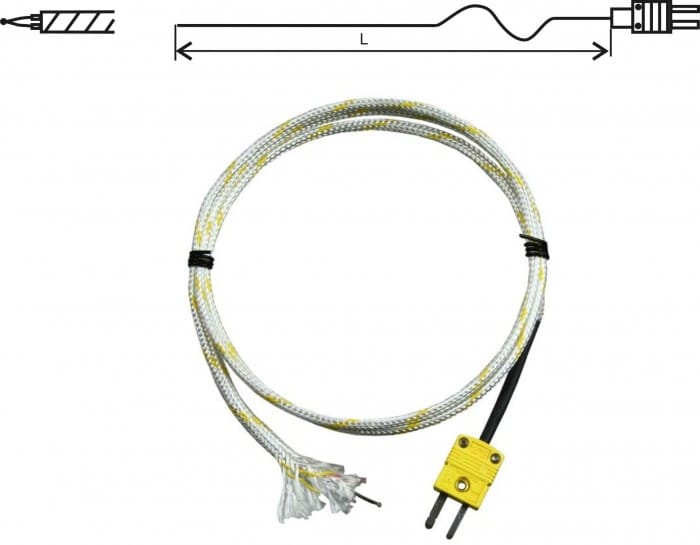

GD1250 Thermocouple "K" wire probe with connector

Description:

The GD1250 is a thermocouple "K" wire probe featuring a 3-meter length and designed for temperature measurement ranging from -65 to 980°C It comes with duplex insulation made of Nextel ceramic and has a 4mm outside diameter The probe includes a subminiature male connector for easy attachment and integration into measurement systems The thermocouple is rated as class 1 in accordance with IEC584-2, offering a tolerance of +/-1.

5°C or +/-0004 x t, whichever is greater Additionally, various cable lengths are available upon selection.

Features and Benefits:

•Temperature measuring range of -65 to 980°C.

•Constructed with duplex insulation using Nextel ceramic.

•Subminiature male connector for compatibility with various systems.

•Class 1 thermocouple tolerance according to IEC584-2 ensures accuracy.

Specifications:
