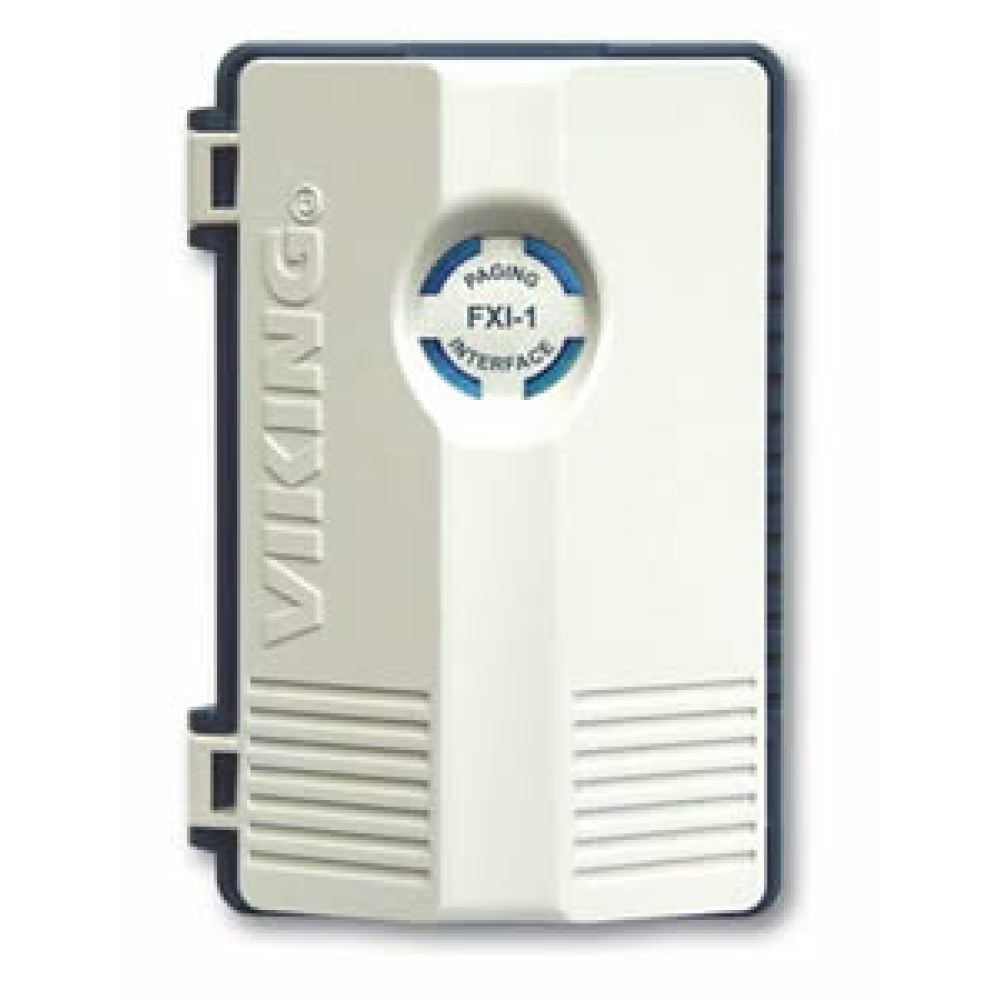

FXI-1A - 26V Smart Paging Interface Adapter for FXO/FXS Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FXI-1, a versatile device that supplies a 26V talk battery, perfect for connecting with an FXO or an unused analog line input/trunk port Toggle the switch to easily link to an FXS or PABX station ring trip port, eliminating the need for an external power supply in this mode When connecting to a 'dry' 600 ohm paging port, you'll benefit from the integrated voice activation (VOX) feature.

This setup is particularly effective for interfacing with systems lacking a paging contact closure, including brands like Panasonic, South Western Bell, and Intertel, making it an essential tool for smooth communication.

Features and Benefits:

•Viking universal paging interface.

•Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode.

•No power supply required in FXS interface mode.

•Up to 6 units can be powered from one adapter in the FXO or VOX mode.

•30V DC talk battery for interfacing with FXO or unused phone system line input/trunk port.

•Floating 600 ohm paging output with volume control.

•Normally open or closed relay for external paging amp activation or interfacing the paging amp with an external background music source.

•800 Hz pre-announce page tone (on/off).

•Compatible with 24 to 48 volt FXS operation.

•Calling party control (CPC) detection for immediate disconnect.

•Busy signal detect disconnect.

•2.5 to 5 second VOX silence disconnect timer.

•Programmable VOX trigger sensitivity.

•16 or 36 second default disconnect timer.

•Screw terminal block connections.

•Wall mount housing: (2) #6x3/4 panhead screws included.

•Power: 12-24V DC @ 100mA, 120V AC/12V DC @ 500mA, UL listed adapter included (not required in FXS mode).

Specifications:
