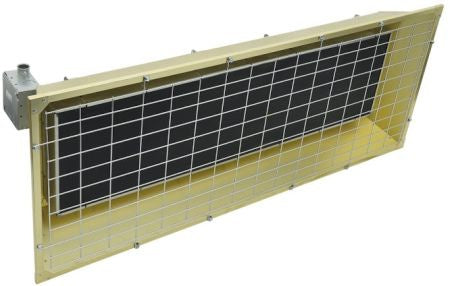

FSS-9524-3 9.50 KW 240V Infrared Flat Panel Emitter/Heater Suspension Mount
FSS-9524-3 9.50 KW 240V Infrared Flat Panel Emitter/Heater Suspension Mount
SKU: SKU:
Select a gauge:
- FSS-9524-3 9.50 KW 240V Infrared Flat Panel Emitter/Heater Suspension Mount
- FSS-9524-3 9.50 KW 240V Infrared Flat Panel Emitter/Heater Suspension Mount
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Product Information:
Heavy-Duty Flat Panel Emitter Electric Overhead Infrared Heaters provide safe, efficient electric infrared heat for total area heating or spot heating applications for warehouses, steel mills, machine shops and many other industrial applications. Infrared heaters deliver radiant heat using 60 degree symmetric heat pattern that utilizes bright aluminum reflectors. Electrical infrared heaters feature an aluminum extrusion and support clip for high vibration areas and rugged environments. Rugged steel structure surrounds emitter element, great for high vibration areas. Gold anodized aluminum housing provides long-term reflectivity and corrosion resistance. Ceiling heaters include L brackets for chain suspension or rigid mounting. Designed for direct wire, single or three phase wiring configurations, can be wired on either side. ETL listed for suspended high-bay indoor applications.
Features:
Product Specifications:
Heavy-Duty Flat Panel Emitter Electric Overhead Infrared Heaters provide safe, efficient electric infrared heat for total area heating or spot heating applications for warehouses, steel mills, machine shops and many other industrial applications. Infrared heaters deliver radiant heat using 60 degree symmetric heat pattern that utilizes bright aluminum reflectors. Electrical infrared heaters feature an aluminum extrusion and support clip for high vibration areas and rugged environments. Rugged steel structure surrounds emitter element, great for high vibration areas. Gold anodized aluminum housing provides long-term reflectivity and corrosion resistance. Ceiling heaters include L brackets for chain suspension or rigid mounting. Designed for direct wire, single or three phase wiring configurations, can be wired on either side. ETL listed for suspended high-bay indoor applications.
Features:
- Heating elements included (Single Flat Panel Emitter)
- Medium Wave Emitter, operates at 78.5% radiant efficiency
- ETL Listed for suspended indoor applications
- 60° symmetrical heat pattern
- Gold anodized aluminum housing
- L-brackets included for chain suspension or rigid mounting
- Electrical enclosure included for direct wire installation
- Single or Three-phase wiring configurations
- Wire guards provided on all models
Product Specifications:
| MANUFACTURER PART NUMBER | FSS-9524-3 |
| BRAND | Fostoria |
| VOLTAGE | 240V |
| PHASE | 1 or 3 Phase |
| WATTS HIGH | 9500 Watt |
| AMPERAGE | 39.6 Amp |
| DEPTH | 7-3/4 Inch |
| LENGTH | 49 Inch |
| WIDTH | 20 Inch |
| HEATER TYPE | Suspension Mount Heaters |
| TYPE OF PRODUCT | Suspension Mount Heaters |
| PRODUCT CONDITION | New |
| COLOR | Gold |
