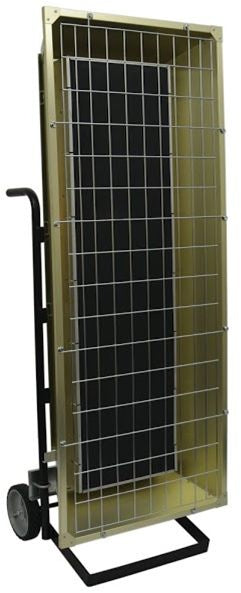

FSP-9548-3 9.50 KW 480V Portable Infrared Flat Panel Emitter/Heater
FSP-9548-3 9.50 KW 480V Portable Infrared Flat Panel Emitter/Heater
SKU: SKU:
gauge:
- FSP-9548-3 9.50 KW 480V Portable Infrared Flat Panel Emitter/Heater
- FSP-9548-3 9.50 KW 480V Portable Infrared Flat Panel Emitter/Heater
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $1,738.77 /FT
Regular price
BEFORE
Sale price
Now $1,738.77 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Flat panel emitters generate large amounts of infrared heat in a fairly concentrated area. Elements are designed for rugged environments without the use of glass materials. Elements have a life expectancy of 25,000 hours
Features:
- Heating elements included (Single Flat Panel Emitter)
- Medium Wave Emitter, operates at 78.5% radiant efficiency
- Heaters are mounted on steel handcarts with 6-inch wheels, which allow easy transport to the job site (shipped fully assembled)
- 60° symmetrical heat pattern
- Gold anodized aluminum housing
- Electrical enclosure included for direct wire installation
- Single or Three-phase wiring configurations
- Wire guards provided on all models
Product Specifications:
| MANUFACTURER PART NUMBER | FSP-9548-3 |
| BRAND |
Fostoria |
| VOLTAGE | 480V |
| PHASE | 1 or 3 Phase |
| WATTS HIGH | 9500 Watt |
| AMPERAGE | 19.8 Amp |
| DEPTH | 20 |
| HEIGHT | 53 |
| WIDTH | 14-1/2 |
| HEATER TYPE | Portable Heaters |
| TYPE OF PRODUCT | Portable Heaters |
| PRODUCT CONDITION | New |
| COLOR | Yellow |
| DESCRIPTION | Salamander Heater |
| EMERGENCY PREP | Gold |
