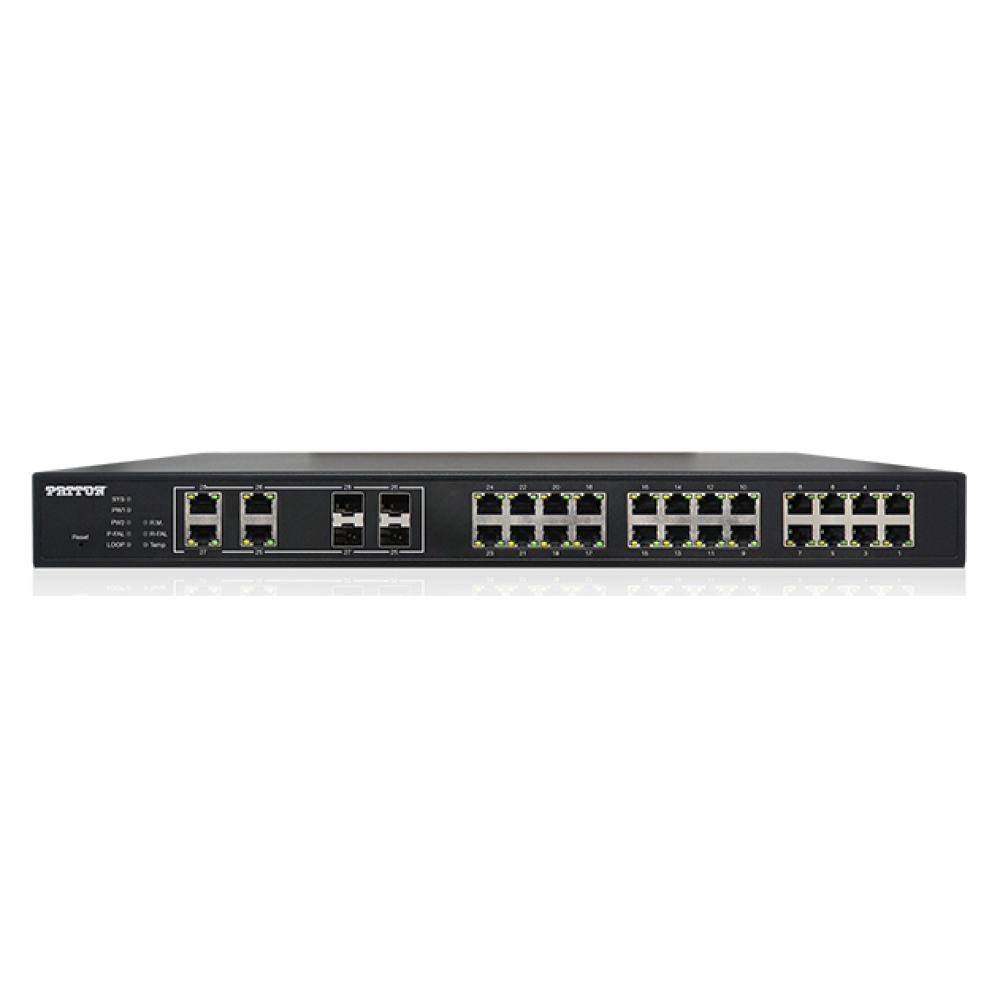

FP2024E/4GE/RJ45+SFP/UI - 28-Port Managed Industrial Gigabit PoE+ Switch

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FP2024E, a robust 28-port industrial Gigabit PoE+ managed Ethernet switch This device features 24 Ethernet ports operating at 10/100/1000Tx, capable of delivering up to 30W of power per port, complying with IEEE8023at/af standards Additionally, it includes 4 combo SFP slots supporting both RJ45 and fiber connections As a fully manageable Layer 3 switch, the FP2024E supports advanced routing functionalities such as Source NAT, Destination NAT, and Static Routing.

Its network redundancy features include ERPS, X-Ring technology (offering ultra-fast recovery in under 20 ms), as well as RSTP/STP (8021w/1D) and MSTP for enhanced reliability This switch is equipped with top-notch filtering and security options, including IGMP, VLAN, QoS, SNMP, port lock, RMON, along with protocols like 8021X, HTTPS, SSH, and SSL to ensure efficient network management Ideal for remote SCADA systems and control environments, Patton's 10/100/1000 PoE switches fully adhere to leading safety standards, enabling features such as scheduled power cycles, power budgeting, and customizable port settings, all supported by a user-friendly Light Layer 3 management system.

Features and Benefits:

•Supports 24*10/100/1000Tx IEEE 802.3 af/at PoE+ Gigabit Ports with 30W/Port and 4*Gigabit Copper/SFP Ports.

•SFP Socket for Easy and Flexible Fiber Backbone Integration.

•Management via SNMP v1/v2c/v3, WEB, Telnet, Standard MIB.

•Security features including 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3.

•Proprietary Ring with Ultra-High-Speed Recovery Time < 20 ms, RSTP/STP (802.1w/1D), MSTP support.

•DC Power Input of 48VDC with Power Polarity Reverse Protection and Overload Current Protection.

•Extended Operating Temperature: -40°~75°C, IP30 Protection, and 1U Rackmount Chassis.

Specifications:
