Ethernet Multilogger - universal datalogger with 4 inputs

Ethernet Multilogger - universal datalogger with 4 inputs

SKU: M1300 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

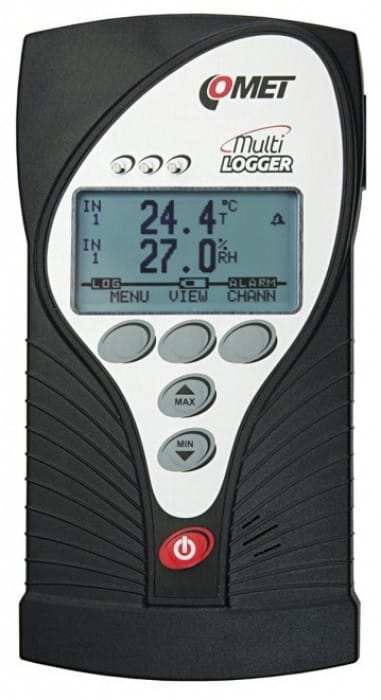

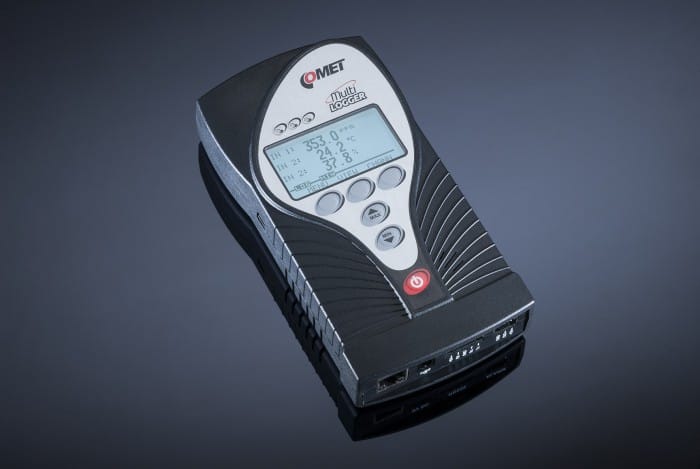

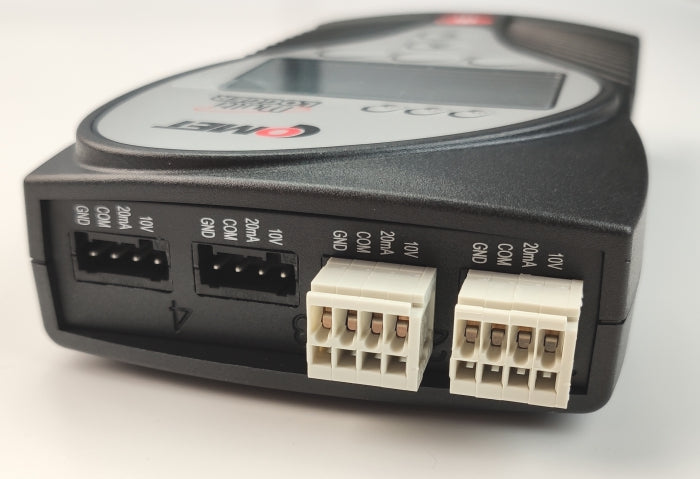

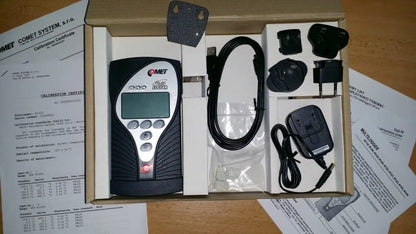

Battery powered datalogger with 4 universal inputs for measurement of 0-10V voltage, 0-20mA current, two-state signal and for counting pulses Signals are connected to four detachable terminal blocks Multilogger can be installed permanently to Ethernet network or work as portable device Included is traceable calibration certificate in accordance with EN ISO/IEC17025 The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its Inputs.

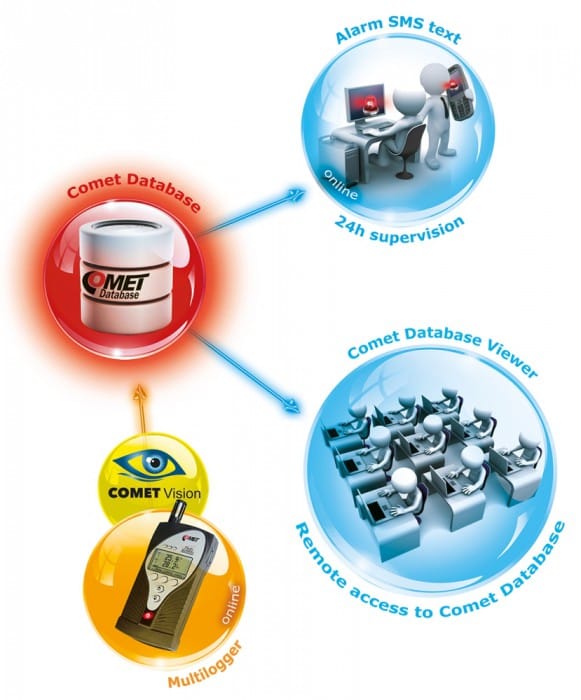

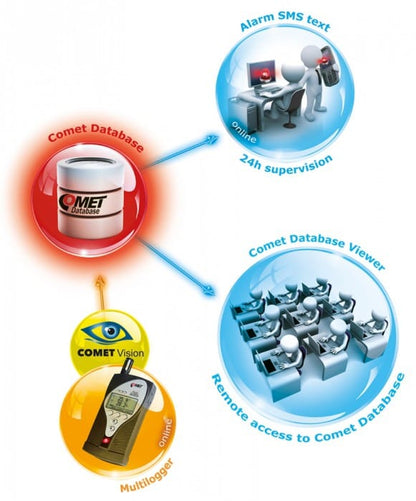

Datalogger can be connected to Ethernet Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.

Features and Benefits:

    •4 universal inputs for measurement of different signals.

    •Battery operated with Ethernet connectivity.

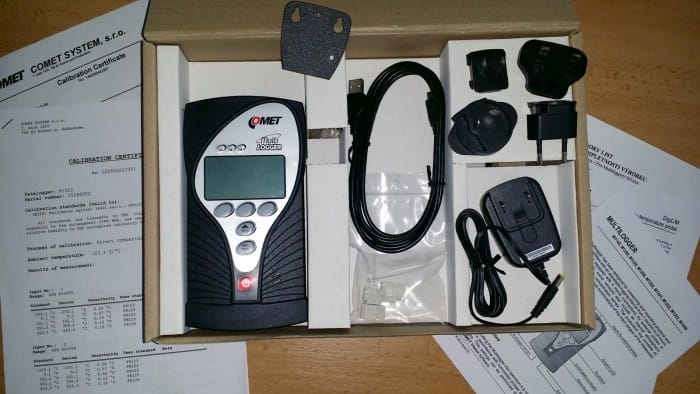

    •Traceable calibration certificate included.

    •Can be used as a permanent and portable device.

    •Measured values can be viewed on a web browser.

Specifications:

 Measured value Current, Voltage, Two-state signal, Pulses
 DC VOLTAGE Measuring range 0 to 10 V
 Accuracy (DC VOLTAGE) ±10 mV
 Resolution (DC VOLTAGE) better than 100 µV
 DC CURRENT Measuring range 0 to 20 mA
 Accuracy (DC CURRENT) ±20 µA
 Resolution (DC CURRENT) better than 0.1 µA
 BINARY SIGNAL Input voltage for level “switched on” <0.4 V/> 2 V
 Minimum/maximum input voltage 0 V/+30 V DC
 Impedance of the “switched on” < 10 kOhm/> 300 kOhm
 COUNTER INPUT Range of counter 24 bit (16 777 215)
 Maximum input frequency 200 Hz
 Operating temperature -10 to +60 °C
 Channels 4x binary, counter, voltage and current input
 Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
 Recording interval 1s to 24 hours
 Display and alarm refresh each 10 s
 Recording mode noncyclic - data logging stops after filling the memory, cyclic - after filling memory oldest data is overwritten by new
 Available temperature units degrees Celsius, degrees Fahrenheit

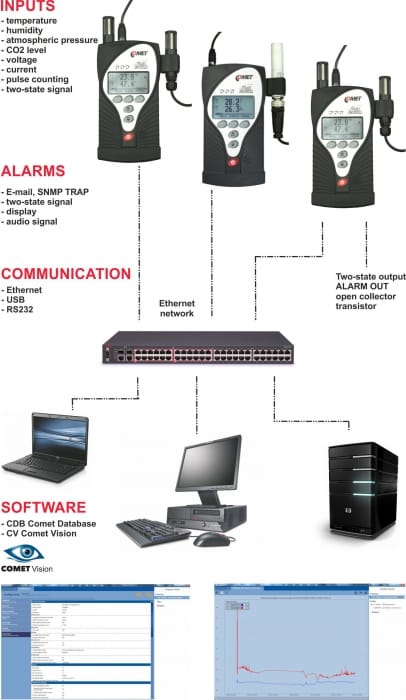

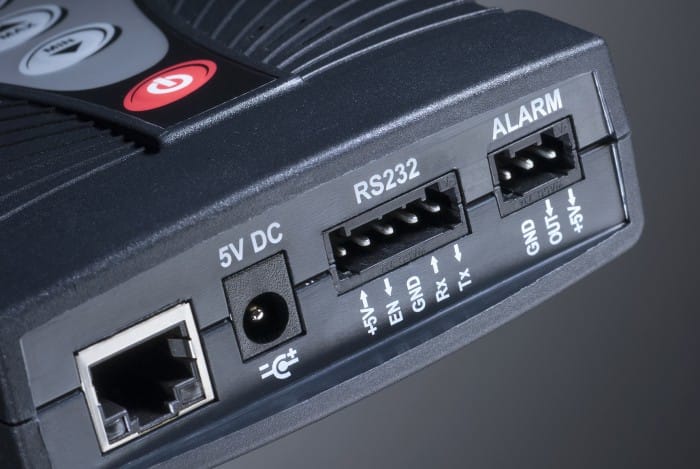

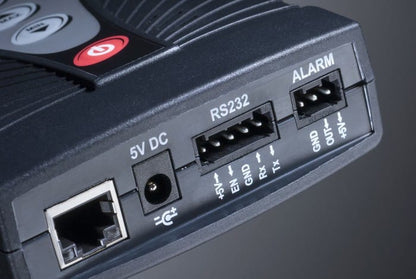

 Communication interface Ethernet, USB, RS232
 Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
 Alarm protocols E-Mail
 Power AC adapter 230Vac/5Vdc (necessary for Ethernet interface)
 Battery life 3 - 4 weeks
 Protection class IP20
 Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
