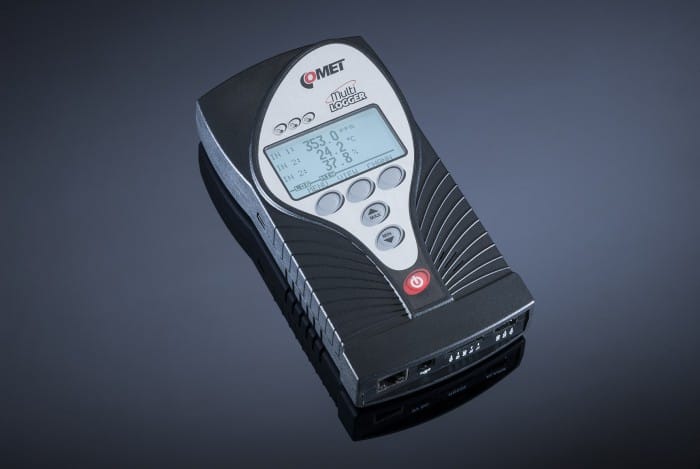

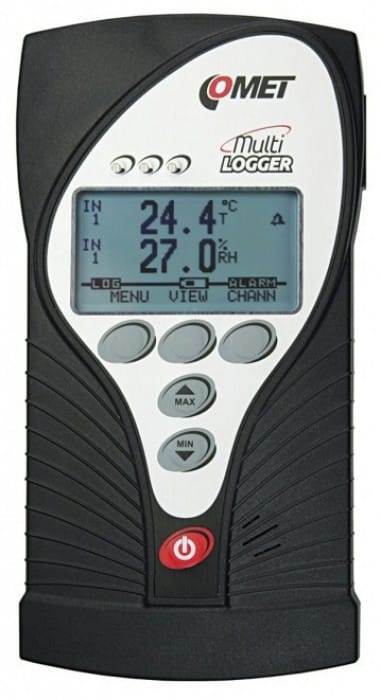

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

SKU: SKU: M1140   Download PDF

Qty:
Regular price Now $100.00   Web pricing policy
Regular price BEFORE   Sale price Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

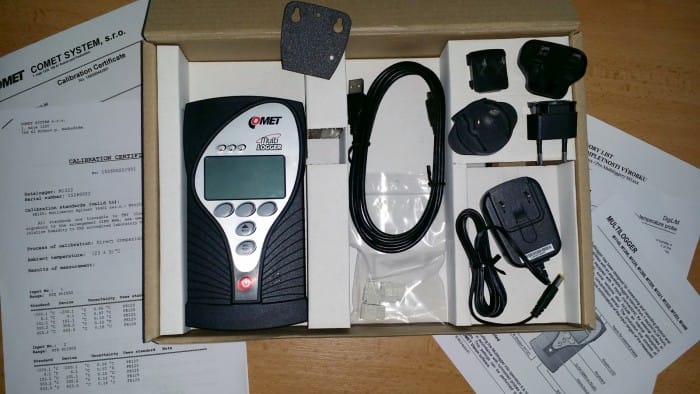

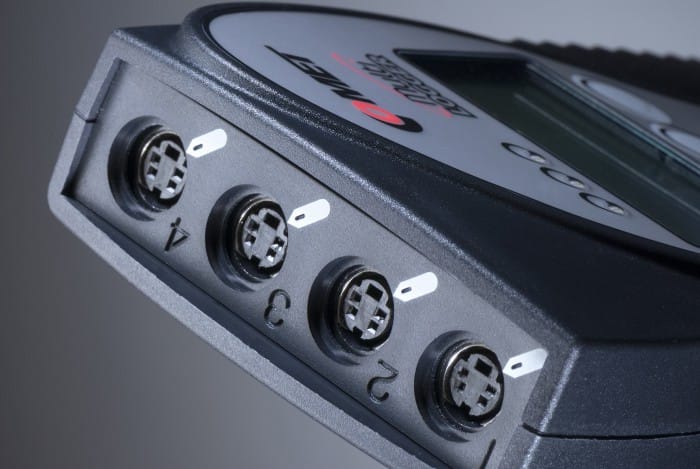

Universal datalogger with MiniDIN inputs for connecting up to four temperature and/or humidity probes Multilogger can be installed permanently to Ethernet network or work as portable device Included is traceable calibration certificate in accordance with EN ISO/IEC17025 The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its inputs.

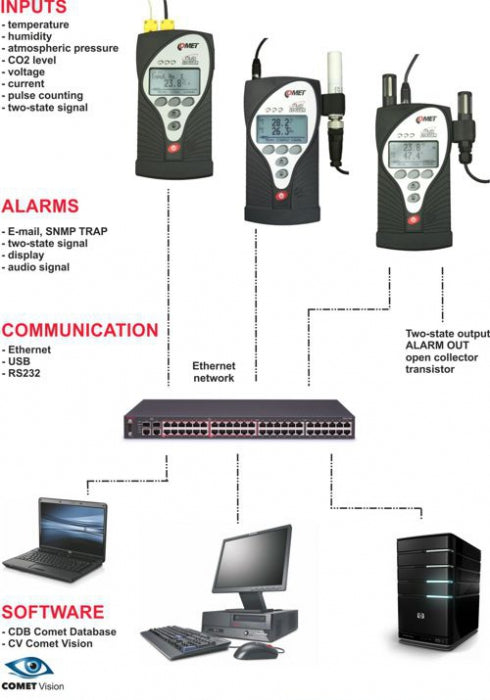

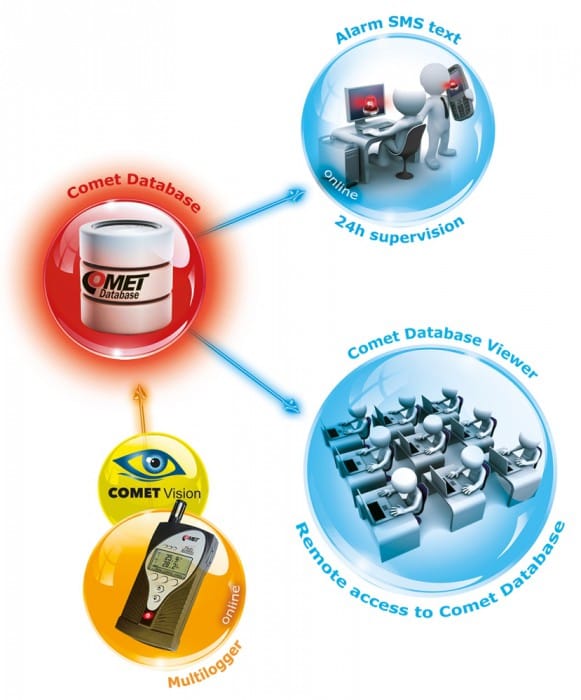

Datalogger can be connected to Ethernet Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.

Specifications:

 Measured value Temperature, Relative humidity, Counted values (dew point…)
 TEMPERATURE SENSOR - external probe Pt1000 Measuring range -200 to +600 °C
 TEMPERATURE SENSOR - external probe Pt1000 Accuracy ±0.2 °C (-200 to +100 °C); ±0.2 % from reading from +100 to +600 °C
 TEMPERATURE SENSOR - external probe Pt1000 Resolution 0.1 °C
 Operating temperature -10 to +60 °C

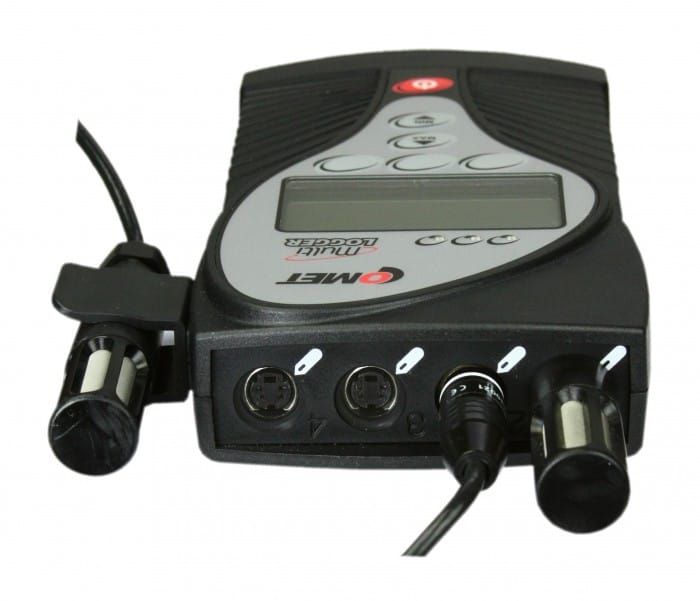

 Channels 4x external temperature probe or connectable temperature+humidity probe
 Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
 Recording interval 1s to 24 hours
 Display and alarm refresh each 10 s
 Recording mode noncyclic - data logging stops after filling the memory, cyclic - after filling memory oldest data is overwritten by new
 Available temperature units degrees Celsius, degrees Fahrenheit
 Communication interface Ethernet, USB, RS232
 Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
 Alarm protocols E-Mail
 Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
 Battery life 3 - 4 weeks
 Protection class IP20
 Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
 Weight (including batteries) approx. 380 g
 Warranty 3 years
