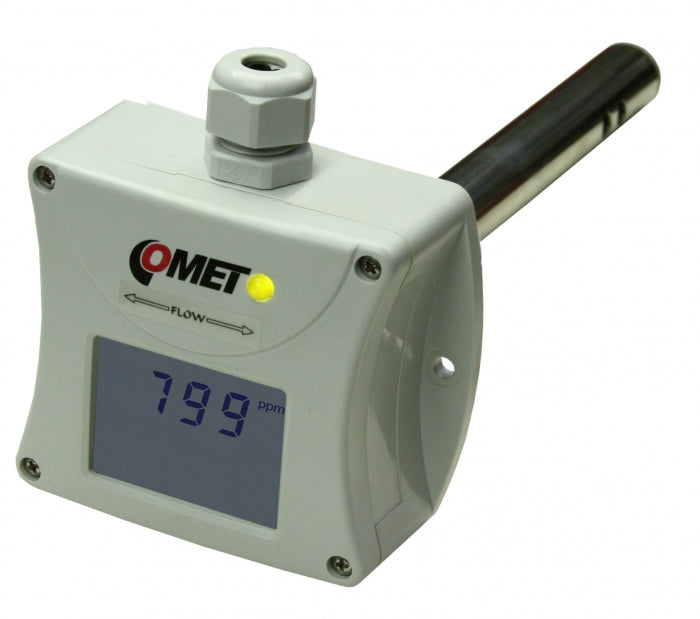

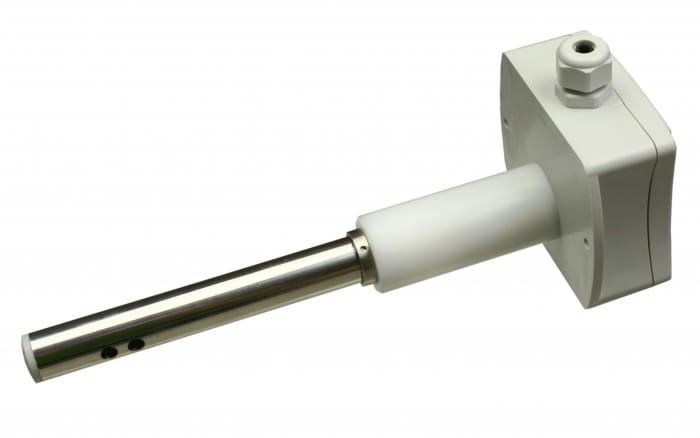

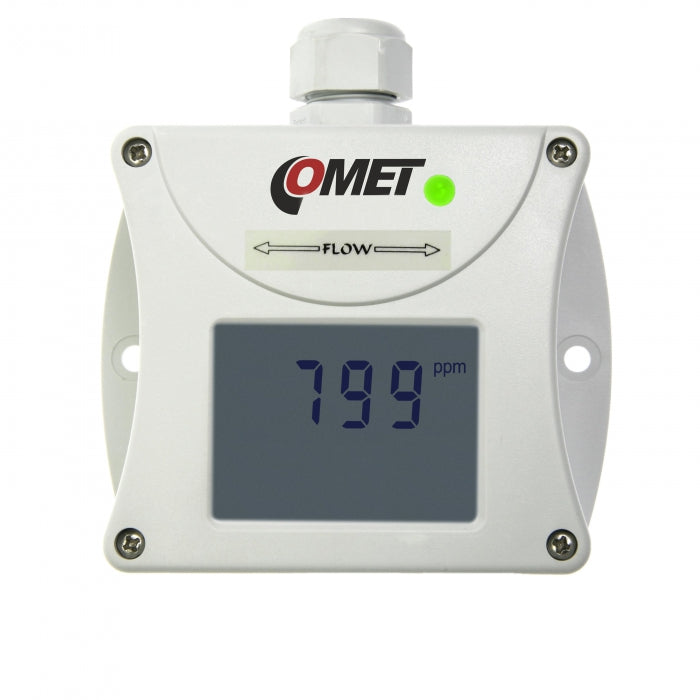

Duct Mount CO2 Concentration Transmitter

Duct Mount CO2 Concentration Transmitter

SKU: T5245 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Duct mount CO2 concentration transmitter with 0-10 V output The device features an LED indicator that shows the CO2 concentration: green LED shines for 0 to 1000 ppm, yellow LED shines for 1001 to 1200 ppm, and red LED shines for concentrations of 1201 ppm and more There is also a possibility to extend the measuring range for an additional charge, with the measuring range extending to 0 to 10,000 ppm.

The accuracy of the measurement is 100 ppm + 5% of the measured value at 25 °C and 1013 hPa.

Features and Benefits:

    •Internal CO2 sensor.

    •User adjustable output configuration from PC.

    •Measuring range up to 10,000 ppm available at additional charge.

    •LED indicators for different CO2 concentration levels.

    •High accuracy of ±(50ppm +2% from reading) at 25°C and 1013hPa.

Specifications:

 Measuring range: 0 to 2000 ppm
 Output: 0 - 10 V
 Operating temperature: -30 to +60 °C
 Power: 15-30 Vdc
 Protection class: IP65 electronics; IP20 sensors
 Dimensions: 89 x 73 x 240 mm; stem length 130 mm
 Resolution: 1 ppm
 Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa
