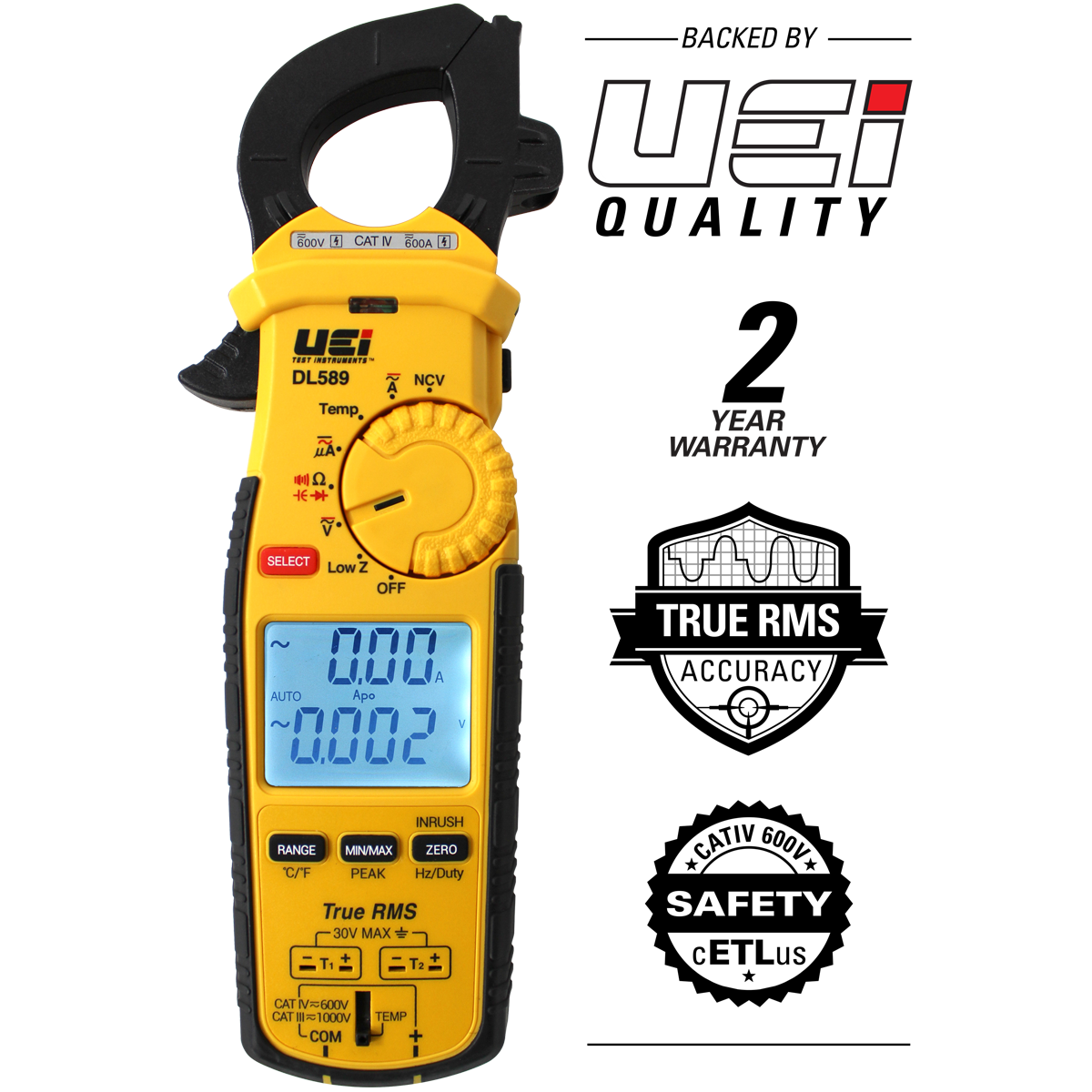

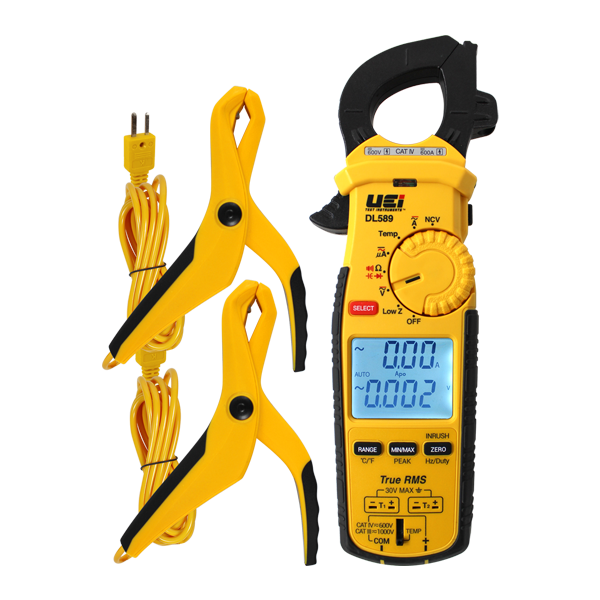

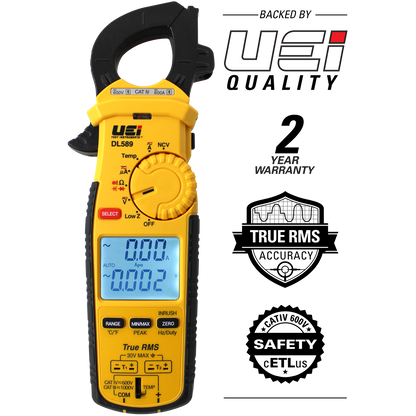

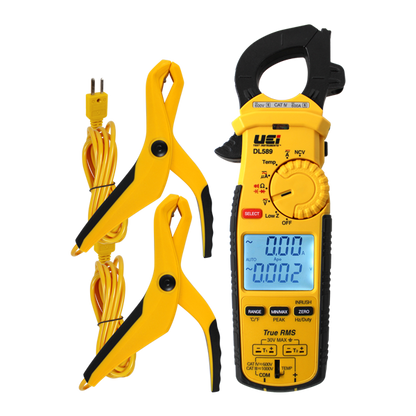

DL589 600A TRMS Clamp Meter w/ DC Amps

DL589 600A TRMS Clamp Meter w/ DC Amps

SKU: DL589COMBO Download PDF

Now $319.95
BEFORE   Now $319.95
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

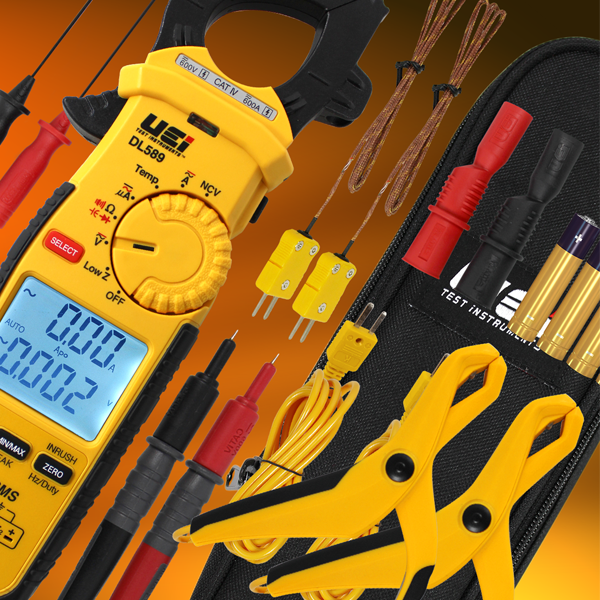

The DL589 is a TRMS HVAC/R Clamp Meter with functions including AC/DC voltage, AC/DC amps, AC/DC microamps, resistance, capacitance, frequency, and duty cycle It comes with CATIV rated silicone test leads, back probe leads for mini-split applications, alligator clips, thermocouples, along with a zippered pouch, and is backed by a 2-Year warranty.

Features and Benefits:

    •Backlight - Yes.

    •Temperature Differential - Yes.

    •Hold - Yes.

    •Min/Max - Yes.

    •Ranging - Auto/Manual.

    •Auto Power Off - Yes.

    •Display Count - 6000.

    •Low Battery Warning - Yes.

    •Dual Display - Yes.

    •Worklight - Yes.

    •Temperature Inputs - K-Type.

    •DC Zero - Yes.

    •Protective Boot/Overmolding - Yes.

    •Magnetic Mount - Yes.

    •Audible and Visual Alerts - Yes.

    •Digital - Yes.

    •TRMS - Yes.

    •AC Current (Amps) - 600A AC.

    •DC Current (Amps) - 600A DC.

    •AC Micro Current (Amps) - 2000µA.

    •DC Micro Current (Amps) - 2000µA.

    •AC Volts - 750VAC.

    •DC Volts - 1000VDC.

    •Resistance (Ohms) - 60 MΩ.

    •Diode - Yes.

    •Capacitance (Farads) - 2000µF.

    •Temperature - -328˚ to 2462˚F.

    •Frequency (Hertz) - 99.99kHz.

    •Duty Cycle (%) - 1.0 yo 99.0%.

    •Continuity - Yes.

    •NCV Detection - Yes.

    •Low Z - Yes.

    •LRA Inrush - Yes.

    •K-Type Temperature Range - -328˚ to 2462˚F.

    •ETL Listed - cETLus 610101-1: 2012.

    •CAT Rating - CATIV 600V.

    •RoHS - Yes.

    •FCC/IC Compliant - FCC.

Specifications:

 Pipe Clamp Probe ATTPC4 (2)
 Test Leads Silicone ATL58
 Alligator Clips AAC3
 Batteries AAA (4)
 Temperature Probe ATT29 (2)
 Pouch/Case Zippered
 K-Type Thermocouples Yes
 Back Probes APB3 (2)
 Warranty 2 Year limited
