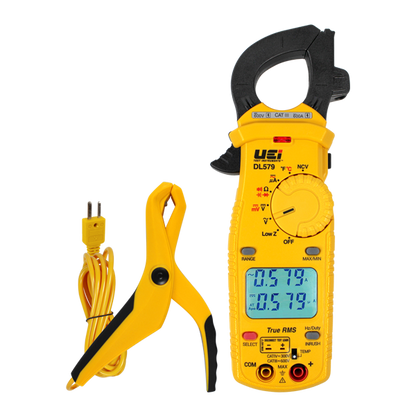

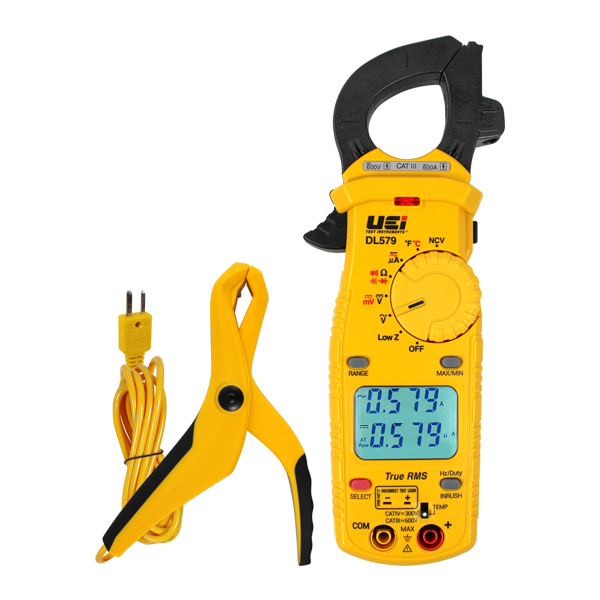

DL579 - 600A Dual Display TRMS Clamp Meter w/ Temperature, Inrush, AMH2 Magnet w/ ATTPC4

DL579 - 600A Dual Display TRMS Clamp Meter w/ Temperature, Inrush, AMH2 Magnet w/ ATTPC4

SKU: DL579COMBO Download PDF

Now $199.95
BEFORE   Now $199.95
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

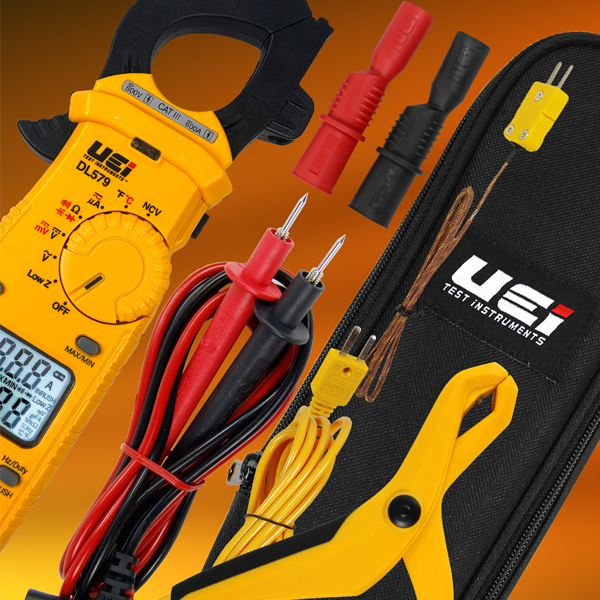

The DL579 is a TRMS HVAC/R Clamp Meter that offers features like AC/DC voltage measurement, AC amps, AC/DC microamps, resistance, capacitance, frequency, and duty cycle It includes accessories such as test leads, a pair of alligator clips, thermocouples, an ATTPC4, and a zippered pouch, and it is backed by a 1-Year warranty.

Features and Benefits:

    •Backlight available.

    •Hold function.

    •Min/Max recording.

    •Auto/Manual ranging.

    •Auto Power Off feature.

    •Display count of 6000.

    •Low Battery Warning.

    •Dual Display.

    •K-Type temperature inputs.

    •Magnetic mount available.

    •Digital TRMS capabilities.

    •Measuring HVAC/R systems.

    •Electrical troubleshooting.

    •Temperature monitoring.

    •Resistance and capacitance testing.

Specifications:

 AC Current (Amps): 600A AC
 DC Current (Amps): 600A DC
 AC Micro Current (Amps): 2000µA
 DC Micro Current (Amps): 2000µA
 AC Volts: 750VAC
 DC Volts: 1000VDC
 Resistance (Ohms): 60 MΩ
 Diode: Yes
 Capacitance (Farads): 6000µF
 Temperature: -328˚ to 2462˚F
 Frequency (Hertz): 99.99kHz
 Duty Cycle (%): 1.0 to 99.0%
 Continuity: Yes
 NCV Detection: Yes
 Low Z: Yes
 LRA Inrush: Yes
 DC Microvolts: 600mV
 AC Microvolts: 600mV
 IEC 61010: cETLus 61010-1: 2012
 CAT Rating: CATIII 600V
 RoHS: Yes
 FCC/IC Compliant: FCC
 Test Leads: ATL55
 Alligator Clips: AAC3
 Batteries: AAA (2)
 Temperature Probe: ATT29 (2)
 Pouch/Case: Zippered
 Pipe Clamp Probe: ATTPC4
