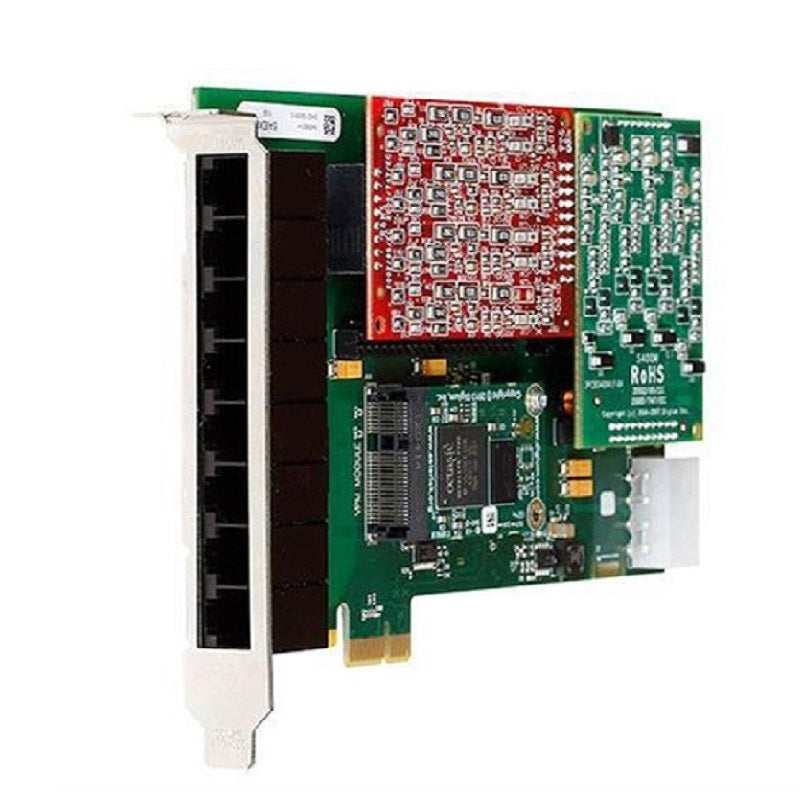

Digium 1A8B01F 8 Port Modular Analog PCI-Express x1 Card

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

8 port modular analog PCI-Express x1 card, no interfaces and HW Echo Can. The Digium 1A8B01F from the A8 Series is a PCI-Express card designed to house FXO and FXS modules with Echo Cancellation for carrier-grade audio quality and with 8 ports. Attach up to two quad-port modules or four single-port modules, then swap them or remove them as needed. The Digium 1A8B01F PCI Express card is compatible with Asterisk.

Features and Functions:

• Uo to Eight (8) analog ports
• PCI Express bus architectures
• Combine line (FXO) and station (FXS) modules
• Accepts up to two (2) quad-port modules or up to 4 single-port modules
• Optional DSP-based carrier grade echo cancellation module
• 32-bit 33MHz
• Loop Start or Kewl Start Signaling
• Temperature: 0° to 50° C
• Digium patented VoiceBus™ technology for better audio
• 5-year warranty
• With Asterisk - DAHDI 2.7 or later required
• With Switchvox - Switchvox 5.8.1 or later required
