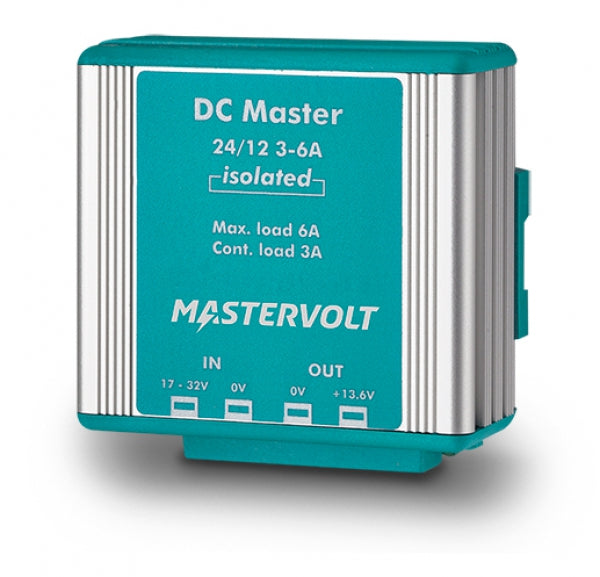

DC Master 24/12-3 Isolated

DC Master 24/12-3 Isolated

SKU: 81500100 Download PDF

Now $10,820.00
BEFORE   Now $10,820.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The required voltage for DC current can vary Some equipment requires 24 V, while onboard equipment usually requires 12 V For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer There is a wide range of DC Master converters available, including insulated and non-insulated models.

Recreational and semi-professional use Easy to install using included mounting bracket Excellent price/performance ratio Available in isolated and non-isolated version The non-isolated DC Master models have an electrical connection between the input and output.

Features and Benefits:

    •Low costs..

    •Efficient: low heat generation..

    •Compact..

    •Suited to applications with negative earthing..

    •Extra touch-proof..

    •Interference suppression for sensitive equipment..

    •Available with negative or positive grounding..

    •Intelligent DC-DC converters..

    •A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost..

    •Complete package, all DC Master converters are delivered with mounting bracket, screws and fasteners..

Specifications:

 Nominal output voltage 13.6 V
 Max. output power 82 W
 Nominal output power 41 W
 Max. output current (for 2 min. intervals) 6 A
 Continuous output current 3 A
 Nominal input voltage 24 V
 Input voltage range (max.) 20-32 V DC (35 V)
 Galvanic isolation yes
 Stabilised yes
 Dimensions, hxwxd 89 x 87 x 50 mm
 Weight 0.29 kg
 Compliance CE
 DC consumption < 15 mA
 Connections fast-on
 Temperature range (ambient temp.) -25 °C to 80 °C, derating > 30
 Cooling natural cooling
 Protection degree IP53
