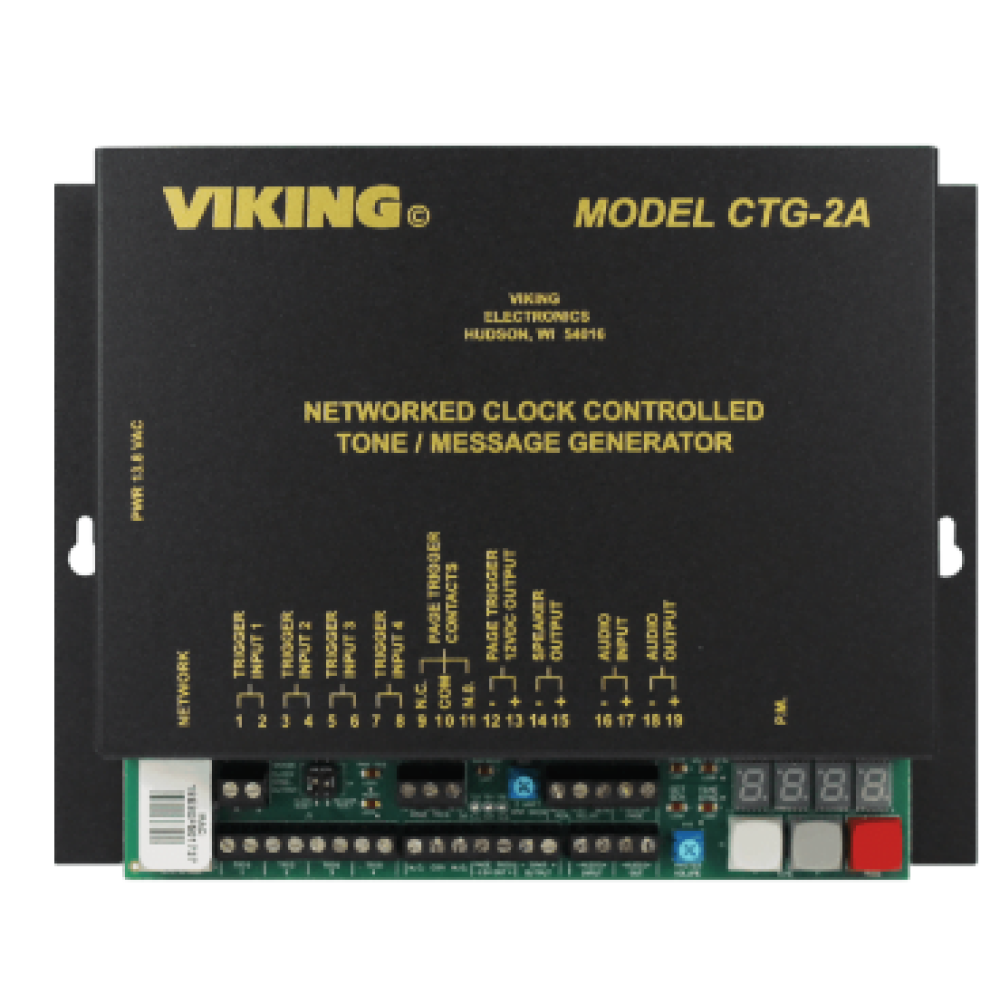

CTG-2A - Programmable Tone Generator with Master Clock & 6 Minutes Audio Storage

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the versatile CTG-2A, designed to enhance communication and safety in various environments Featuring four programmable trigger inputs, this device is perfect for sending emergency alert tones and messages, whether it’s for fire evacuations, severe weather warnings, lockdowns, or signaling an all-clear It can also be utilized in retail settings for announcements such as “customer service required.

” Moreover, the CTG-2A functions as a master clock, allowing for synchronization with Viking CL Series wireless clocks The unit comes with the capacity to store up to 6 minutes of high-quality WAV audio, accommodating 14 different tones or messages Pre-loaded with commonly used sounds for schools, businesses, and factories, you can also customize it with your own audio files or choose from a selection available on the Viking website.

Features and Benefits:

•Up to 14 schedules and up to 1,000 events.

•6 minutes of CD quality WAV file record time.

•Up to 14 different tones or messages.

•4 programmable trigger inputs for emergency tones, etc..

•Automatic Daylight Saving Time and leap year correction.

•Programmable NTP Clock synchronization.

•PC programming software included.

•RS485 clock SYNC terminals for remote Master Clock control of Viking CL Series RF synchronized clocks.

•Non-volatile memory with 4-day clock backup.

•Factory loaded with school/factory tones and evacuation signals (ANSI S3.41), etc..

•Remote program via TCP / IP network.

•Page trigger outputs (12VDC and DPDT relay).

•Programmable auxiliary relay contacts (DPDT).

•24-hour digital clock displays hours and minutes.

•One mono line level pre-amp input and audio output.

•Built-in 1 Watt mono audio amplifier.

•One isolated audio output for PABX / dial access paging.

•Master volume control.

•Programmable volume control per tone/message.

•Time base selection: Network, 50 / 60Hz or internal.

•Programmable message repeat count for trigger inputs.

Specifications:
