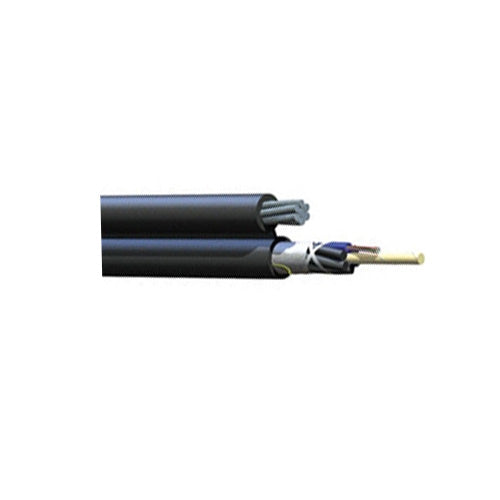

Corning 12 to 216 Fiber Single and Multimode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Corning 12 to 216 Fiber Single and Multimode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Select gauge from drop-down menu for prices:

Corning 12 to 216 Fiber Single and Multimode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Product Details

Corning ALTOS® figure-8 gel-free cables are self-supporting aerial cables designed for easy and economical one-step installation. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. The gel-free design is fully waterblocked using craft-friendly water-swellable materials, making cable access simple and requiring no clean up. While the flexible, craft-friendly buffer tubes are easy to route in closures, the SZ-stranded, loose tube design isolates optical fibers from installation and environmental rigors and facilitates mid-span access.The figure-8 cable design allows easy, one-step installation, using standard hardware and installation methods. These cables have a medium density polyethylene jacket that is rugged, durable and easy to strip.

Features And Benefits:
Gel-free waterblocking technology - Craft-friendly cable preparation
Polyethylene jacket - Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
Figure-8 cable design - Easy, one-step installation

General Specifications:
• Environment: Outdoor
• Application: Direct Buried
• Cable Type: Loose Tube
• Product Type: Self-Supporting

Standards:
• Common Installations: Outdoor self-supporting aerial
• Design and Test Criteria: ANSI/ICEA S-87-640

Temperature Range:
• Storage: -40 °C to 70 °C (-40 °F to 158 °F )
• Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )

Chemical Characteristics:
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

fiber count fiber category nominal outer diameter corning cable
part number
Action
12 50 µm MM (OM2) 14.3 mm 012TUB-T4131D20 Request a Quote
24 50 µm MM (OM2) 14.3 mm 024TUB-T4131D20 Request a Quote
36 50 µm MM (OM2) 14.3 mm 036TUB-T4131D20 Request a Quote
48 50 µm MM (OM2) 14.3 mm 048TUB-T4131D20 Request a Quote
60 50 µm MM (OM2) 14.3 mm 060TUB-T4131D20 Request a Quote
72 50 µm MM (OM2) 14.3 mm 072TUB-T4131D20 Request a Quote
96 50 µm MM (OM2) 0.63 in 096TUB-T4131D20 Request a Quote
144 50 µm MM (OM2) 19.7 mm 144TUB-T4131D20 Request a Quote
192 50 µm MM (OM2) 21.8 mm 192TUB-T4131D20 Request a Quote
216 50 µm MM (OM2) 21.8 mm 216TUB-T4131D20 Request a Quote
12 62.5 µm MM (OM1) 16.1 mm 012KUB-T4130D20 Request a Quote
24 62.5 µm MM (OM1) 16.1 mm 024KUB-T4130D20 Request a Quote
36 62.5 µm MM (OM1) 16.1 mm 036KUB-T4130D20 Request a Quote
48 62.5 µm MM (OM1) 16.1 mm 048KUB-T4130D20 Request a Quote
60 62.5 µm MM (OM1) 16.1 mm 060KUB-T4130D20 Request a Quote
72 62.5 µm MM (OM1) 16.1 mm 072KUB-T4130D20 Request a Quote
96 62.5 µm MM (OM1) 0.63 in 096KUB-T4130D20 Request a Quote
144 62.5 µm MM (OM1) 19.7 mm 144KUB-T4130D20 Request a Quote
192 62.5 µm MM (OM1) 21.8 mm 192KUB-T4130D20 Request a Quote
216 62.5 µm MM (OM1) 21.8 mm 216KUB-T4130D20 Request a Quote
12 Single-mode (OS2) 16.1 mm 012EUB-T4101D20 Request a Quote
24 Single-mode (OS2) 16.1 mm 024EUB-T4101D20 Request a Quote
36 Single-mode (OS2) 16.1 mm 036EUB-T4101D20 Request a Quote
48 Single-mode (OS2) 16.1 mm 048EUB-T4101D20 Request a Quote
60 Single-mode (OS2) 16.1 mm 060EUB-T4101D20 Request a Quote
72 Single-mode (OS2) 16.1 mm 072EUB-T4101D20 Request a Quote
96 Single-mode (OS2) 0.63 in 096EUB-T4101D20 Request a Quote
144 Single-mode (OS2) 19.7 mm 144EUB-T4101D20 Request a Quote
192 Single-mode (OS2) 21.8 mm 192EUB-T4101D20 Request a Quote
216 Single-mode (OS2) 21.8 mm 216EUB-T4101D20 Request a Quote
