Compressed air temperature and humidity regulator

Compressed air temperature and humidity regulator

SKU: H3021P   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

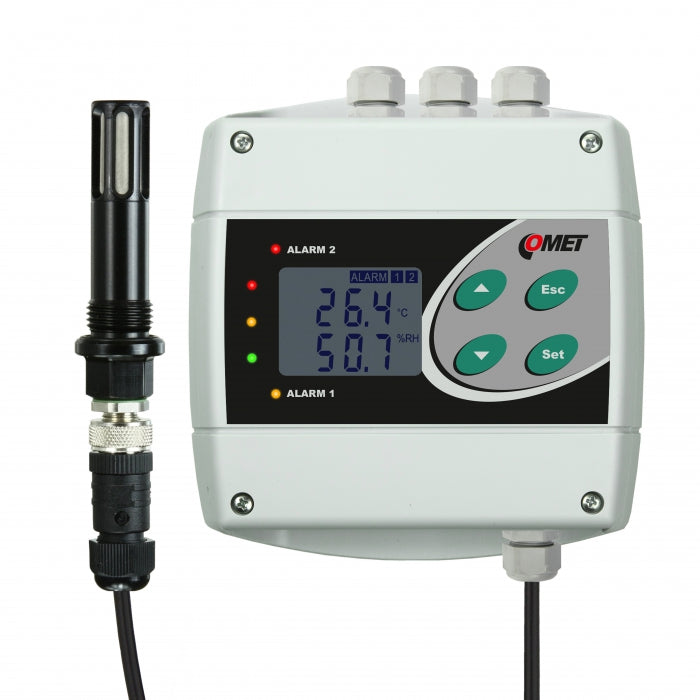

Humidistat, thermostat with two relay outputs T+RH probe from hard anodized duralumin for compressed air up to 25 bars Outdoor, indoor use Humidity, temperature probe on a cable Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy The device is supplied with T+RH probe with 1 meter cable.

Features and Benefits:

    •Two relay outputs.

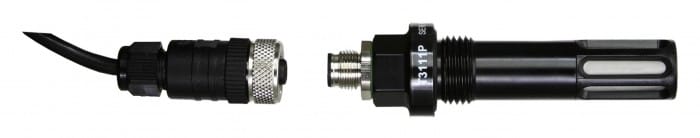

    •T+RH probe from hard anodized duralumin for compressed air up to 25 bars.

    •Outdoor and indoor use.

    •Measured values converted to various humidity interpretations.

    •Supplied with T+RH probe with 1 meter cable.

Specifications:

 Temperature Sensor Measuring Range -30 to +105 °C
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring Range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Measuring Moisture of Compressed Air up to 25 bars
 Air Flow Velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
 Relay Outputs Quantity 2
 Relay Outputs Maximal Voltage 50 V
 Relay Outputs Maximal Current 2 A
 Relay Outputs Maximal Power 60 VA
 Operating Temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Counted Values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Acoustic Alarm from built-in beeper - switchable
 Power 9-30 Vdc
 Protection Class IP65 electronics; IP40 sensors

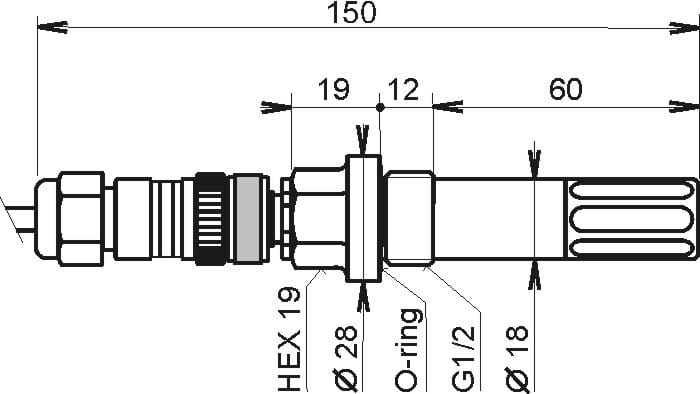

 Dimensions 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length 1 meter
