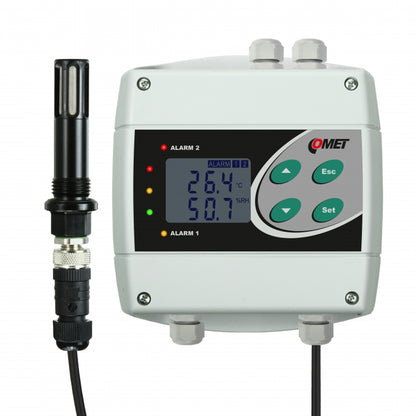

Compressed Air Temperature and Humidity Regulator

Compressed Air Temperature and Humidity Regulator

SKU: H3061P   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

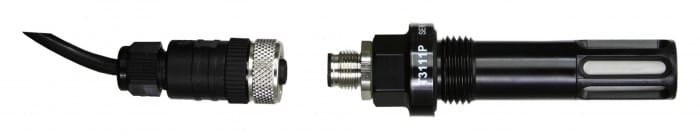

Compressed air temperature and humidity regulator with 230Vac/8A relays Humidistat, thermostat with two relay outputs T+RH probe from hard anodized duralumin for compressed air up to 25 bars with 1 meter cable Outdoor, indoor use Relative humidity, temperature probe on a cable Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

Features and Benefits:

    •Temperature and humidity regulation for compressed air systems.

    •Hard anodized duralumin T+RH probe.

    •Outdoor and indoor use.

    •Provides multiple humidity interpretations including dew point and absolute humidity.

    •Includes relay outputs for additional control.

    •Compressed air systems monitoring and management.

    •Industrial applications requiring humidity and temperature regulation.

Specifications:

 Temperature Measuring Range: -30 to +105 °C
 Temperature Accuracy: ±0.4 °C
 Temperature Resolution: 0.1 °C
 Humidity Measuring Range: 0 to 100 % RH
 Humidity Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Max. Relay Output Voltage: 250 VAC
 Max. Relay Output Current: 8 A
 Max. Relay Output Power: 2000 VA AC, 192 W DC
 Operating Temperature: -30 to +80 °C
 Power: 110-240 VAC
 Protection Class: IP65 electronics; IP40 sensors

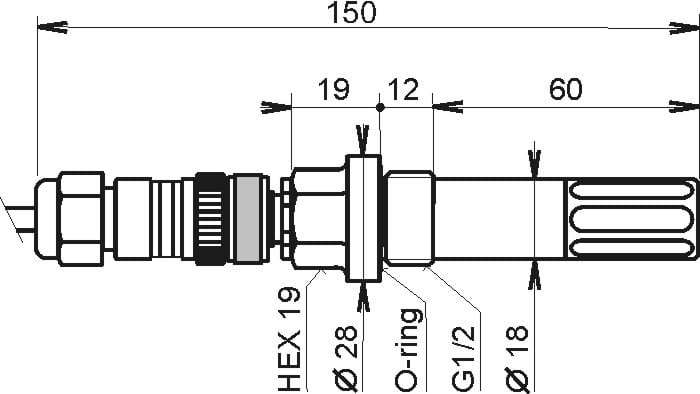

 Dimensions: 136 x 161 x 45 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length: 1 meter
