Compressed air RH+T+Tdp sensor with 4-20mA output

Compressed air RH+T+Tdp sensor with 4-20mA output

SKU: T3111P   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

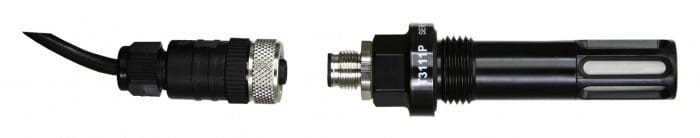

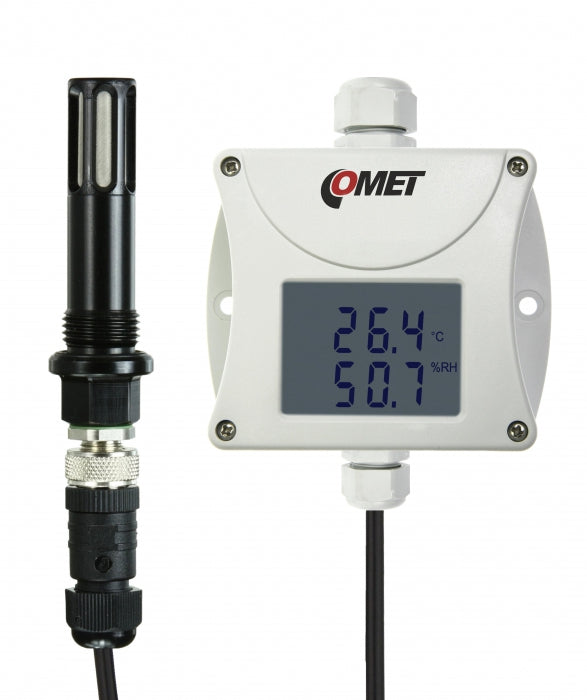

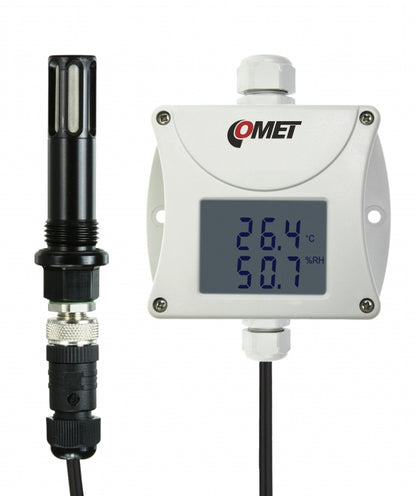

Humidity and temperature transmitter featuring a T+RH probe made from hard anodized duralumin, designed for use with compressed air at pressures up to 25 bars Suitable for both outdoor and indoor applications, it measures relative humidity and temperature at the probe located on the cable The device converts measured values into several humidity interpretations including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

The product includes a T+RH probe with a cable length of 1 meter.

Specifications:

 Temperature Measuring Range -30 to +105 °C
 Temperature Accuracy ±0.4 °C
 Temperature Resolution 0.1 °C
 Humidity Measuring Range 0 to 100 % RH
 Humidity Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C; ±2.0°C for dew point temperature 0°C at ambient temperature +25°C; ±3.0°C for dew point temperature -10°C at ambient temperature +25°C; ±6.0°C for dew point temperature -20°C at ambient temperature +25°C
 Dew Point Resolution 0.1 °C
 Moisture Measurement Pressure Range up to 25 bars
 Air Flow Velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
 General Operating Temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Output 4-20 mA, galvanic isolated
 Power 9-30 Vdc
 Protection Class IP65 electronics; IP40 sensors

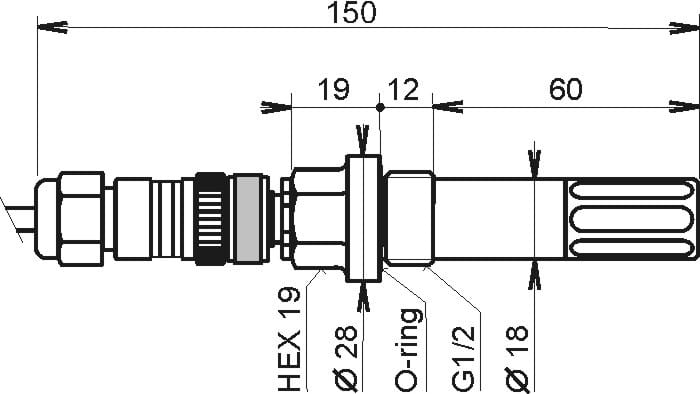

 Dimensions 88.5 x 114 x 39.5 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length 1 meter
