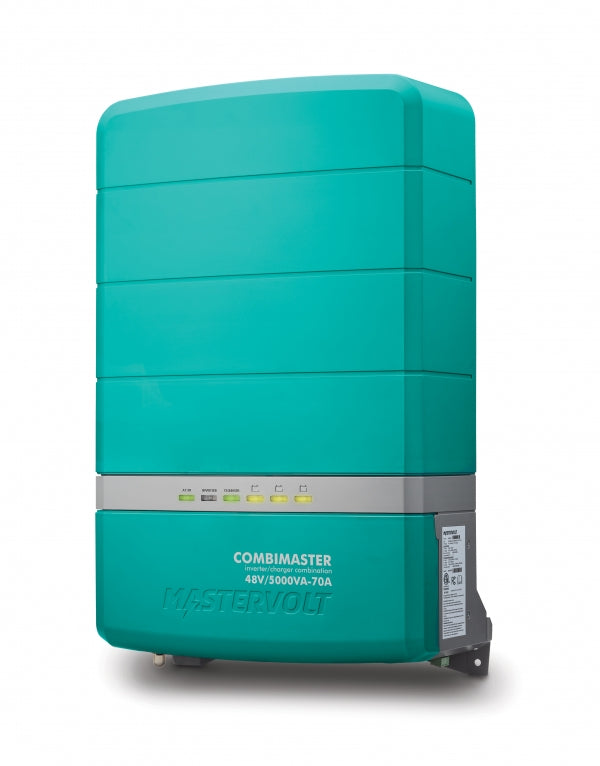

CombiMaster 48/5000-70 - HT (120 V)

CombiMaster 48/5000-70 - HT (120 V)

SKU: 35545000 Download PDF

Now $299,900.00
BEFORE   Now $299,900.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The CombiMaster range is designed with user-friendliness and reliability in mind, employing the latest technology It is engineered to handle even the heaviest and most sensitive loads effortlessly, eliminating worries about power dips and failures An automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply The Power Assist function is a safeguard against tripping the mains fuse for weaker land lines or smaller generators.

The CombiMaster not only delivers exceptional performance but also offers compatibility with MasterBus, CZone, and NMEA 2000 for extensive monitoring and system integration options It allows for remote control via compatible displays and supports parallel and split-phase operations for larger setups.

Features and Benefits:

    •Most compact and lightweight Combi in its class..

    •Reliable, hum-free and longer operation from your batteries..

    •Starts even the heaviest and most sensitive loads..

    •Intelligent 3-step+ battery charger for faster and safer charging..

    •Automatic switching between mains and inverter mode..

    •Power Assist prevents blown mains fuses..

    •Generator compatible..

    •Integrated CZone, MasterBus and NMEA 2000 communication..

    •Quick installation with heavy duty connections..

Specifications:

 Nominal DC voltage 48 V (40.8–64 V)
 Output voltage 120 V
 Output frequency 60/50 Hz (configurable)
 Output waveform true sine
 Continuous power at 40 °C / 104 °F, cos phi 1 5000 W
 Peak power (30 sec) 7500 W
 Surge power (5 sec) 10000 W
 Max. efficiency 93 %
 Battery no-load power consumption 57 W (on mode) / < 1 mA (off mode)
 Energy saving mode consumption 30 W
 Synchronise with mains yes
 Input voltage range 90–140 V
 Max. input current 45 A (adjustable)
 Max. charge current at 40 °C / 104 °F 70 A at 57 V (configurable)
 Battery temperature sensor yes, included
 Battery voltage sense automatic compensation
 AC input 50 A (switched) max
 AC output 85 A max
 AC input fuse Yes
 Transfer speed 10 ms
 Transfer voltage range 90–140V
 Transfer frequency range 40-65 Hz
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 568 x 359 x 170 mm, 22.4 x 14.1 x 6.7 inch
 Compliance ABYC A31, UL1236, UL1741, SAEJ1171
 Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
 Recommended battery capacity 140-7000 Ah (based on gel batteries, may differ for other types)
 Ground relay yes, configurable by means of mechanical jumper
 Temperature range (ambient temp.) -25°C to 80°C, derating above 40°C, shutdown above 80
 Cooling vario fan
 Protection degree IP23 (vertical mounting)
 Safety class IEC protection class I
 Humidity protection conformal coating, max. 95 % relative humidity, non condensing
 Protections over-temperature, overload, short circuit, high/low battery voltage
 Power Assist yes, supports AC input with power from the battery
 Power Sharing yes, allows you to select AC Input fuse setting
 MasterBus compatible yes
 CZone / NMEA 2000 compatible yes
