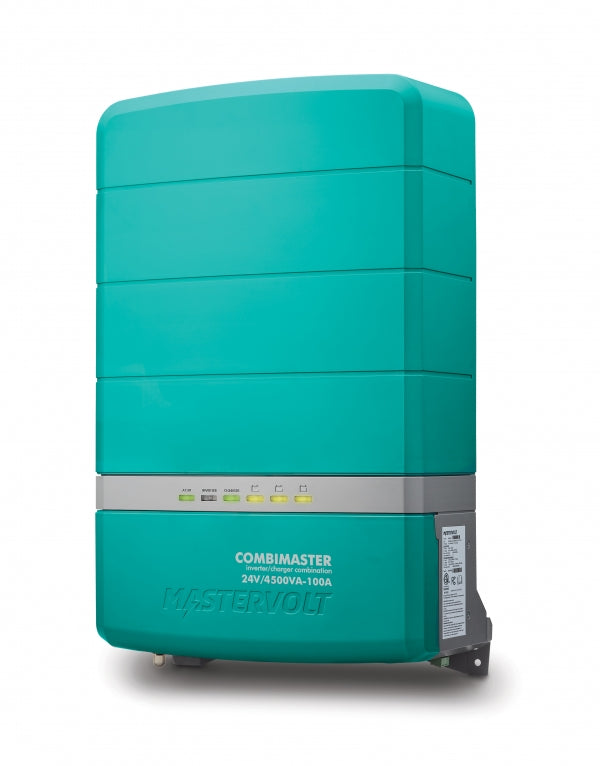

CombiMaster 24/4500-120 - HT (120 V)

CombiMaster 24/4500-120 - HT (120 V)

SKU: 35524500   Download PDF

Qty:
Now $249,900.00   Web pricing policy
BEFORE   Now $249,900.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The CombiMaster range is designed with a focus on user-friendliness and reliability, employing the latest technology to provide unmatched performance and value for money The powerful CombiMaster range handles even the heaviest and most sensitive loads effortlessly, eliminating power dips and failures with its automatic AC transfer system that switches seamlessly between generator or mains and inverter output.

This ensures a constant power supply at all times Additionally, the Power Assist function prevents tripping of the mains fuse, especially in situations where connection to a weak land line or small generator is required With compatibility for MasterBus, CZone, and NMEA 2000, the CombiMaster enables extensive monitoring and system integration options Remote monitoring is available through SmartRemote or EasyView 5 display and third-party multifunctional displays.

The design supports parallel and split-phase operation for larger applications up to 35 kW, making it a versatile choice for various settings.

Features and Benefits:

    •Most compact and lightweight Combi in its class..

    •Reliable, hum-free, and longer operation from your batteries..

    •Starts even the heaviest and most sensitive loads..

    •Intelligent 3-step+ battery charger for faster and safer charging..

    •Automatic switching between mains and inverter mode..

    •Power Assist prevents blown mains fuses..

    •Generator compatible..

    •Integrated CZone, MasterBus, and NMEA 2000 communication..

    •Quick installation with heavy-duty connections..

Specifications:

 Nominal DC voltage 24 V (20.4–32 V)
 Output voltage 120 V
 Output frequency 60/50 Hz (configurable)
 Output waveform true sine
 Continuous power at 40 °C / 104 °F, cos phi 1 4500 W
 Peak power (30 sec) 6750 W
 Surge power (5 sec) 9000 W
 Max. efficiency 93 %
 Battery no-load power consumption 47 W (on mode) / < 1 mA (off mode)
 Energy saving mode consumption 25 W
 Synchronise with mains yes
 Input voltage range 90–140 V
 Max. input current 38 A (adjustable)
 Max. charge current at 40 °C / 104 °F 120 A at 28.5 V (configurable)
 Battery temperature sensor yes, included
 Battery voltage sense automatic compensation
 AC input 38 A (geschakeld) max
 AC output 85 A max A
 AC input fuse Yes
 Transfer speed 10 ms
 Transfer voltage range 90–140V
 Transfer frequency range 40-65 Hz
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 568 x 359 x 170 mm
 Weight 17 kg
 Compliance ABYC A31, UL1236, UL1741, SAEJ1171
 Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
 Recommended battery capacity 240-1200 Ah (based on gel batteries, may differ for other types)
 Ground relay yes, configurable by means of mechanical jumper
 Temperature range (ambient temp.) -25°C to 80°C, derating above 40°C, shutdown above 80
 Cooling vario fan
 Protection degree IP23 (vertical mounting)
 Safety class IEC protection class I
 Humidity protection conformal coating, max. 95 % relative humidity, non condensing
 Protections over-temperature, overload, short circuit, high/low battery voltage
 Power Assist yes, supports AC input with power from the battery
 Power Sharing yes, allows you to select AC Input fuse setting
 MasterBus compatible yes
 CZone / NMEA 2000 compatible yes
