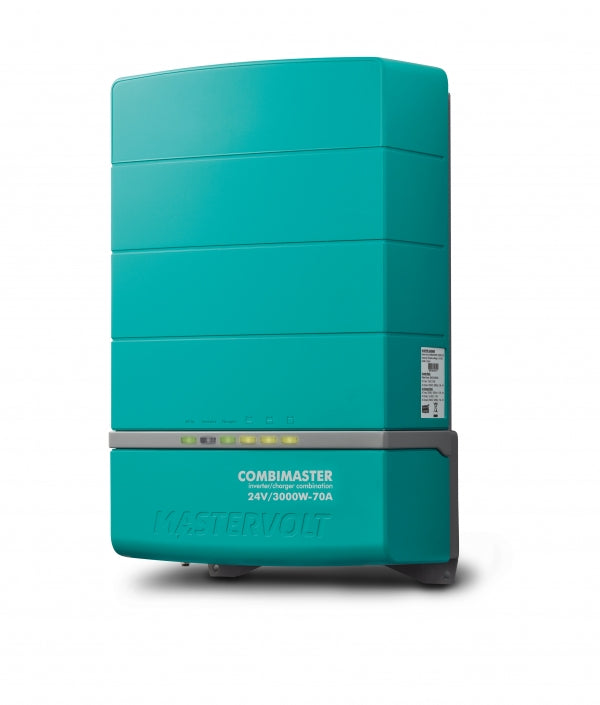

CombiMaster 24/3000-70-120 V

CombiMaster 24/3000-70-120 V

SKU: 35523000 Download PDF

Now $199,738.00
BEFORE   Now $199,738.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The CombiMaster range is designed with the customer in mind, featuring the latest technology for user-friendliness and reliability This powerful inverter drives even the heaviest and most sensitive loads with ease, ensuring consistent power supply through an automatic AC transfer system that switches between generator or mains and inverter output With the Power Assist function, it prevents tripping of the mains fuse connected to weak land lines or small generators.

Unmatched performance and value characterize the CombiMaster, featuring compatibility with MasterBus, CZone, and NMEA 2000 communication for broad monitoring and system integration options, as well as remote control and monitoring capabilities via SmartRemote or EasyView 5 display.

Features and Benefits:

    •Most compact and lightweight Combi in its class.

    •Reliable, hum-free operation extending battery life.

    •Capable of starting even the most demanding loads.

    •Intelligent 3-step+ battery charger ensuring fast and safe charging.

    •Automatic switching between mains and inverter mode.

    •Power Assist feature for preventing blown mains fuses.

    •Generator compatible for enhanced flexibility.

    •Integrated communication systems (CZone, MasterBus, NMEA 2000).

    •Quick installation facilitated by heavy duty connections.

    •E-mark certified for 230 V models.

Specifications:

 Nominal DC voltage 24 V (20.4–32 V)
 Output voltage 120 V
 Output frequency 60/50 Hz (configurable)
 Output waveform true sine
 Continuous power at 40 °C / 104 °F, cos phi 1 2600 W
 Peak power (30 sec) 4500 W
 Surge power (5 sec) 6000 W
 Max. efficiency 93 %
 Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
 Energy saving mode consumption 10 W
 Synchronise with mains yes
 Input voltage range 90-140 V
 Max. input current 25 A (adjustable)
 Max. charge current at 40 °C / 104 °F 70 A at 28.5 V (configurable)
 Battery temperature sensor yes, included
 Battery voltage sense automatic compensation
 AC input 30 A (switched)
 AC output 55 A
 AC input fuse yes
 Transfer speed 10 ms
 Transfer voltage range wide: 70–140 V / narrow: 90–140V
 Transfer frequency range 40-65 Hz
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 448 x 284 x 155 mm / 17.6 x 11.2 x 6.1 inch
 Weight 9.3 kg / 20.5 lb
 Compliance ABYC A31, UL1236, UL1741, SAEJ1171
 Charge characteristic UoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
 Recommended battery capacity 180-500 Ah (based on gel batteries, may differ for other types)
 Ground relay yes, configurable by means of mechanical jumper
 Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40
 Cooling vario fan
 Protection degree IP23 (vertical mounting)
 Safety class IEC protection class I
 Humidity protection conformal coating, max. 95 % relative humidity, non condensing
 Protections over-temperature, overload, short circuit, high/low battery voltage
 Power Assist yes, supports AC input with power from the battery
 Power Sharing yes, allows you to select AC Input fuse setting
 MasterBus compatible yes
 CZone / NMEA 2000 compatible yes
