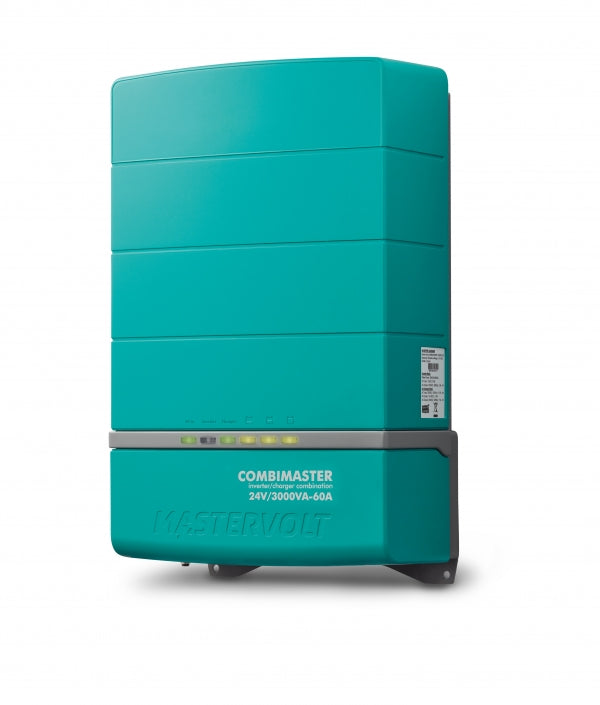

CombiMaster 24/3000-60 (230 V)

CombiMaster 24/3000-60 (230 V)

SKU: 35023000   Download PDF

Qty:
Now $194,032.00   Web pricing policy
BEFORE   Now $194,032.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The CombiMaster range, designed with the customer in mind and utilizing the latest technology, emphasizes user-friendliness and reliability With the powerful capabilities of the CombiMaster, it effectively manages heavy and sensitive loads without issues The automatic AC transfer system switches seamlessly between generator or mains and inverter output, ensuring a constant power supply Additionally, the Power Assist function protects the mains fuse from tripping, especially when connected to a weak land line or small generator.

Delivering unmatched performance and value for money, this product includes MasterBus, CZone, and NMEA 2000 compatibility for enhanced monitoring and system integration For remote control and monitoring, it is compatible with SmartRemote, EasyView 5 display, and other third-party multifunctional displays.

Features and Benefits:

    •Most compact and lightweight Combi in its class.

    •Reliable, hum-free operation extending battery life.

    •Starts even the heaviest and most sensitive loads.

    •Intelligent 3-step+ battery charger for faster and safer charging.

    •Automatic switching between mains and inverter mode.

    •Power Assist function prevents blown mains fuses.

    •Generator compatibility.

    •Integrated CZone, MasterBus, and NMEA 2000 communication.

    •Quick installation with heavy-duty connections.

    •E-mark certification for 230 V models.

Specifications:

 Nominal DC voltage 24 V (20.4–32 V)
 Output voltage 230 V
 Output frequency 50/60 Hz (configurable)
 Output waveform true sine
 Continuous power at 40 °C / 104 °F, cos phi 1 3000 VA / 2600 W
 Peak power (30 sec) 4500 VA / 3900 W
 Surge power (5 sec) 6000 VA / 5200 W
 Max. efficiency 93 %
 Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
 Energy saving mode consumption 10 W
 Synchronise with mains yes
 Input voltage range 170-280 V
 Max. input current 13 A (adjustable)
 Max. charge current at 40 °C / 104 °F 60 A at 28.5 V (configurable)
 Battery temperature sensor yes, included
 Battery voltage sense automatic compensation
 AC input 25 A (switched)
 AC output 38 A
 AC input fuse yes
 Transfer speed 10 ms
 Transfer voltage range wide: 90–280 V / narrow: 170–280 V
 Transfer frequency range 40-65 Hz
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 448 x 284 x 155 mm / 17.6 x 11.2 x 6.1 inch
 Compliance CE, E-mark, AZ/NZS
 Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
 Recommended battery capacity 180-500 Ah (based on gel batteries, may differ for other types)
 Ground relay yes, configurable by means of mechanical jumper
 Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40
 Cooling vario fan
 Protection degree IP23 (vertical mounting)
 Safety class IEC protection class I
 Humidity protection conformal coating, max. 95 % relative humidity, non condensing
 Protections over-temperature, overload, short circuit, high/low battery voltage
 Power Assist yes, supports AC input with power from the battery
 Power Sharing yes, allows you to select AC Input fuse setting
 MasterBus compatible yes
 CZone / NMEA 2000 compatible yes
