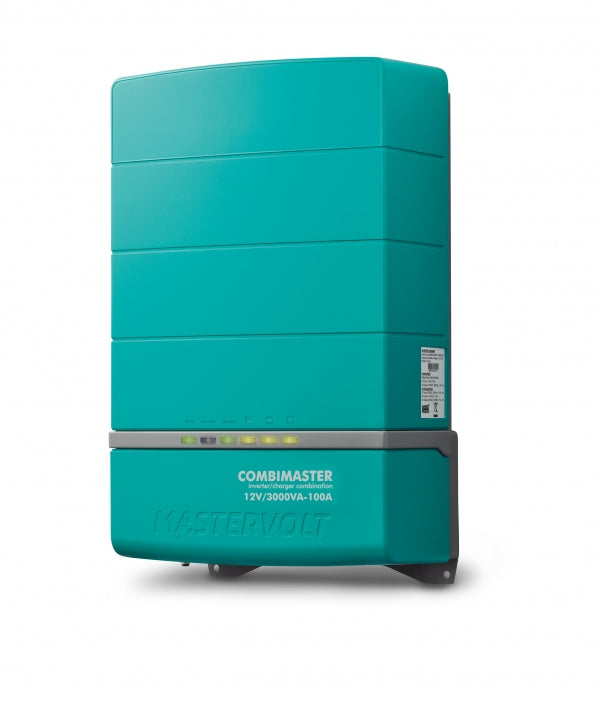

CombiMaster 12/3000-100 (230 V)

CombiMaster 12/3000-100 (230 V)

SKU: 35013000   Download PDF

Qty:
Now $162,486.00   Web pricing policy
BEFORE   Now $162,486.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The CombiMaster 12/3000-100 (230 V) is designed with the customer in mind, utilizing the latest technology for user-friendliness and reliability This powerful device effectively supports even the heaviest and most sensitive loads, mitigating power dips and failures with an automatic AC transfer system that switches seamlessly between generator, mains, and inverter output for a constant power supply.

Its Power Assist function helps to prevent tripping of mains fuses when connected to weak land lines or small generators The CombiMaster range is backed by MasterBus, CZone, and NMEA 2000 compatible communication for extensive monitoring and system integration options.

Features and Benefits:

    •Compact and lightweight for its class.

    •Reliable operation with no hum, extending battery life.

    •Capable of starting heavy and sensitive loads.

    •Intelligent 3-step+ battery charger for efficient charging.

    •Automatic mode switching for mains and inverter operation.

    •Power Assist feature to prevent blown mains fuses.

    •Generator compatibility.

    •Integrated communication options with CZone, MasterBus, and NMEA 2000.

    •Easy installation with robust connections.

    •E-mark certification for 230 V models.

Specifications:

 Nominal DC voltage 12 V (10.2–16 V)
 Output voltage 230 V
 Output frequency 50/60 Hz (configurable)
 Output waveform true sine
 Continuous power at 40 °C / 104 °F, cos phi 1 3000 VA / 2600 W
 Peak power (30 sec) 4500 VA / 3900 W
 Surge power (5 sec) 6000 VA / 5200 W
 Max. efficiency 93 %
 Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
 Energy saving mode consumption 10 W
 Synchronise with mains yes
 Input voltage range 170-280 V
 Max. input current 10 A (adjustable)
 Max. charge current at 40 °C / 104 °F 100 A at 14.25 V (configurable)
 Battery temperature sensor yes, included
 Battery voltage sense automatic compensation
 AC input 25 A (switched)
 AC output 38 A
 AC input fuse yes
 Transfer speed 10 ms
 Transfer voltage range wide: 90–280 V / narrow: 170–280 V
 Transfer frequency range 40-65 Hz
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 448 x 284 x 155 mm / 17.6 x 11.2 x 6.1 inch
 Compliance CE, E-mark, AZ/NZS
 Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
 Recommended battery capacity 300-800 Ah (based on gel batteries, may differ for other types)
 Ground relay yes, configurable by means of mechanical jumper
 Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40
 Cooling vario fan
 Protection degree IP23 (vertical mounting)
 Safety class IEC protection class I
 Humidity protection conformal coating, max. 95 % relative humidity, non condensing
 Protections over-temperature, overload, short circuit, high/low battery voltage
 Power Assist yes, supports AC input with power from the battery
 Power Sharing yes, allows you to select AC Input fuse setting
 MasterBus compatible yes
 CZone / NMEA 2000 compatible yes
