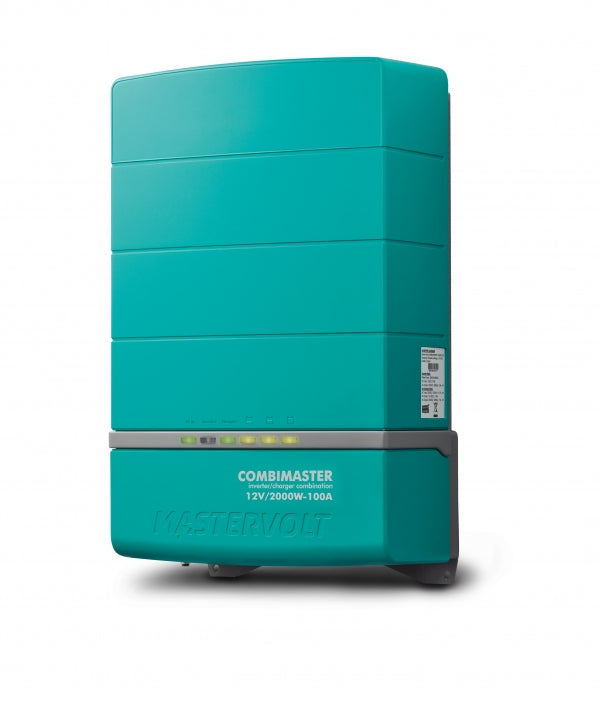

CombiMaster 12/2000-100 120 V

CombiMaster 12/2000-100 120 V

SKU: 35512000   Download PDF

Qty:
Now $141,608.00   Web pricing policy
BEFORE   Now $141,608.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The CombiMaster range is designed with user-friendliness and reliability in mind, utilizing the latest technology It's capable of managing even the heaviest and most sensitive loads effortlessly With its automatic AC transfer system, it ensures a constant power supply by switching seamlessly between generator or mains and inverter output Aimed at avoiding power dips and failures, the CombiMaster features a Power Assist function to prevent tripping of the mains fuse when connected to weak land lines or small generators.

This range delivers unmatched performance and offers great value for money, while being compatible with MasterBus, CZone, and NMEA 2000 communication for monitoring and system integration options.

Features and Benefits:

    •Most compact and lightweight Combi in its class..

    •Reliable, hum-free, and longer operation from batteries..

    •Starts even the heaviest and most sensitive loads..

    •Intelligent 3-step+ battery charger for faster and safer charging..

    •Automatic switching between mains and inverter mode..

    •Power Assist function prevents blown mains fuses..

    •Generator compatible..

    •Integrated CZone, MasterBus, and NMEA 2000 communication..

    •Quick installation with heavy duty connections..

    •E-mark certified (230 V models only!).

Specifications:

 Nominal DC voltage 12 V (10.2–16 V)
 Output voltage 120 V
 Output frequency 60/50 Hz (configurable)
 Output waveform true sine
 Continuous power at 40 °C / 104 °F, cos phi 1 2000 W
 Peak power (30 sec) 3000 W
 Surge power (5 sec) 4000 W
 Max. efficiency 93 %
 Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
 Energy saving mode consumption 10 W
 Synchronise with mains yes
 Input voltage range (Charger) 90-140 V
 Max. input current (Charger) 17 A (adjustable)
 Max. charge current at 40 °C / 104 °F (Charger) 100 A at 14.25 V (configurable)
 Battery temperature sensor yes, included
 Battery voltage sense automatic compensation
 AC input (Transfer system) 30 A (switched)
 AC output (Transfer system) 47 A
 AC input fuse (Transfer system) yes
 Transfer speed 10 ms
 Transfer voltage range wide: 70–140 V / narrow: 90–140V
 Transfer frequency range 40-65 Hz
 Galvanic isolation yes
 Display/read-out LED display
 Dimensions, hxwxd 448 x 284 x 155 mm
 Weight (General specifications) 9.3 kg
 Compliance ABYC A31, UL1236, UL1741, SAEJ1171
 Charge characteristic UoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
 Recommended battery capacity 180-500 Ah (based on gel batteries, may differ for other types)
 Ground relay yes, configurable by means of mechanical jumper
 Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40
 Cooling vario fan
 Protection degree IP23 (vertical mounting)
 Safety class IEC protection class I
 Humidity protection conformal coating, max. 95 % relative humidity, non condensing
 Protections over-temperature, overload, short circuit, high/low battery voltage
 Power Assist yes, supports AC input with power from the battery
 Power Sharing yes, allows you to select AC Input fuse setting
 MasterBus compatible yes
 CZone / NMEA 2000 compatible yes
