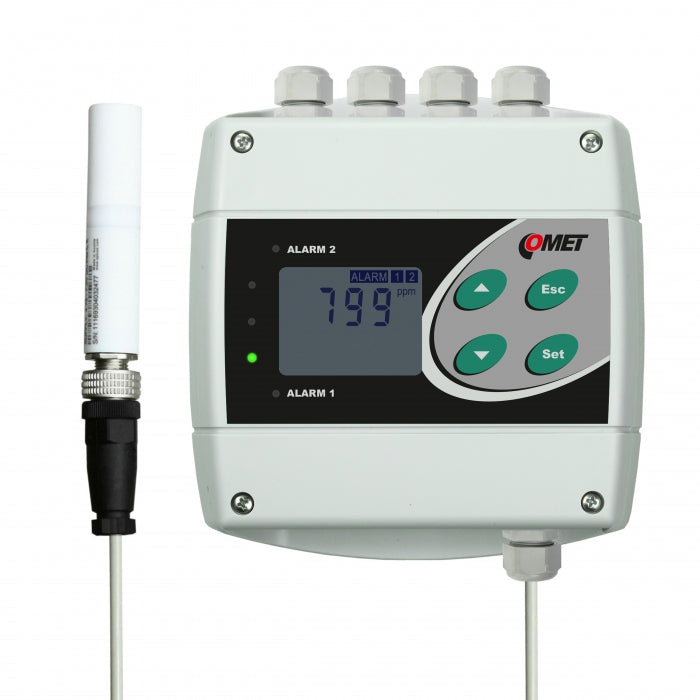

CO2 Concentration Transmitter with RS485 and Two Relay Outputs

CO2 Concentration Transmitter with RS485 and Two Relay Outputs

SKU: H5421 Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

CO2 concentration transmitter with RS485 and two relay outputs CO2 level transmitter with two output relays The device is supplied with CO2 probe with 1m cable Cable lengths 2 or 4 meters available optionally Green LED shines - CO2 concentration 0 to 1000 ppm Yellow LED shines - CO2 concentration 1001 to 1200 ppm Red LED shines - CO2 concentration 1201 ppm and more.

Features and Benefits:

    •Measuring range of 0 to 10 000 ppm.

    •Accuracy of ±(100ppm +5% from reading) at 25°C and 1013hPa.

    •Resolution of 1 ppm.

    •Two relay outputs.

    •Maximal voltage of 50 V.

    •Maximal current of 2 A.

    •Maximal power of 60 VA.

    •Acoustic alarm from built-in beeper - switchable.

    •Communication protocol ModBus RTU and Advantech ADAM compatible.

    •Power supply between 9-30 Vdc.

    •Protection class IP65.

Specifications:

 Measured Value: CO2
 Measuring Range: 0 to 10 000 ppm
 Accuracy: ±(100ppm +5% from reading) at 25°C and 1013hPa
 Resolution: 1 ppm
 Relay Outputs: 2
 Maximal Voltage: 50 V
 Maximal Current: 2 A
 Maximal Power: 60 VA
 Operating Temperature: -30 to +60 °C
 Channels: 1x external CO2 sensor
 Output: RS232
 Power: 9-30 Vdc
 Protection Class: IP65
 Dimensions: 136 x 150 x 45 mm
 External Probe Cable Length CO2: 1 meter (optionally 2 or 4 meters)
 Weight: approx. 360 g
