CO2 Concentration Transmitter with 4-20mA Output

CO2 Concentration Transmitter with 4-20mA Output

SKU: T5140 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

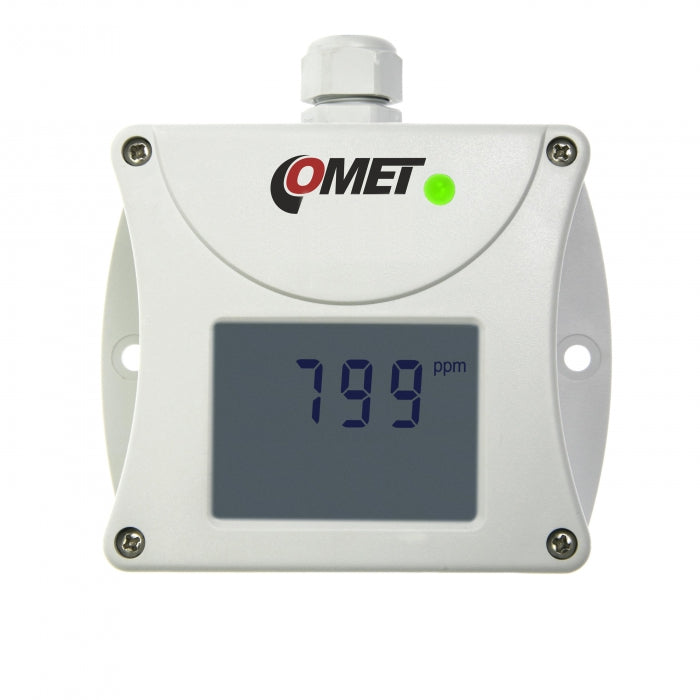

The CO2 concentration transmitter is equipped with a durable case and features a built-in carbon dioxide sensor It provides a 4-20mA output that is user adjustable, allowing for customized settings A large dual line LCD display is a key advantage, and it can also be turned off The device indicates CO2 concentration levels with LED lights: green for 0 to 1000 ppm, yellow for 1001 to 1200 ppm, and red for levels above 1201 ppm.

The measuring range can be extended up to 10,000 ppm for an additional charge.

Features and Benefits:

    •Built-in carbon dioxide sensor.

    •User adjustable output range.

    •Large dual line LCD display.

    •Green, yellow, and red LED indicators for CO2 concentration.

    •Possibility to extend measuring range up to 10,000 ppm.

Specifications:

 Measuring range: 0 to 2000 ppm
 Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa
 Resolution: 1 ppm
 Operating temperature: -30 to +60 °C
 Channels: internal CO2 sensor
 Output: 4-20 mA
 Configuration of output: user adjustable from PC; measured range + value
 Power: 9-30 Vdc
 Protection class: IP30
 Dimensions: 88.5 x 94 x 39.5 mm
 Warranty: 3 years
