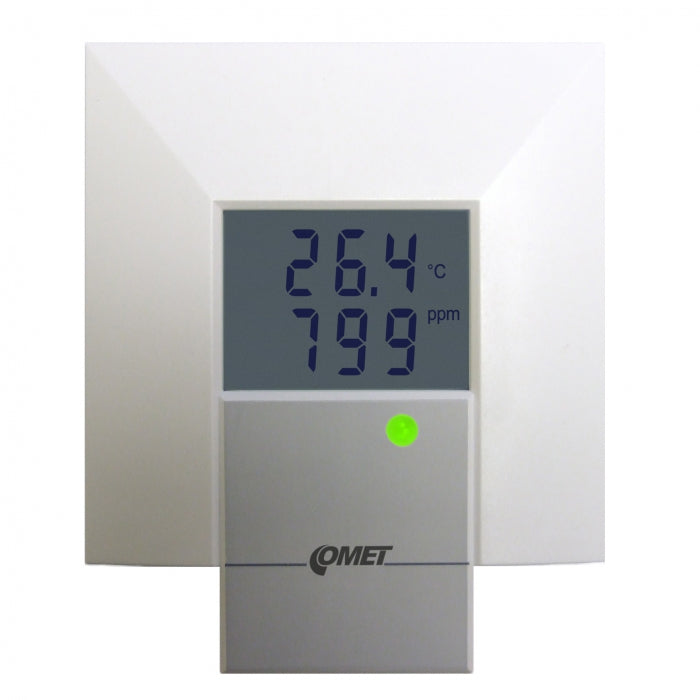

CO2 Concentration and Temperature Transmitter with RS485 Output

CO2 Concentration and Temperature Transmitter with RS485 Output

SKU: T8448 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The CO2 concentration and temperature transmitter with serial RS485 output is specifically designed for precise applications in building energy management and HVAC systems It allows for easy installation on standard KU68 wiring boxes commonly used for household switches and sockets The device is equipped with a large dual-line LCD that can be turned off when not needed Its computerized design ensures long-term stability and includes a fail indication feature, making it suitable for usage in non-aggressive environments.

Features and Benefits:

    •Green LED indicates CO2 concentration of 0 to 1000 ppm.

    •Yellow LED indicates CO2 concentration of 1001 to 1200 ppm.

    •Red LED indicates CO2 concentration of 1201 ppm and above.

    •Possibility to extend measuring range up to 10,000 ppm for an additional charge.

    •Accurate temperature readings with innovation for stability and reliability.

Specifications:

 Measuring Range (Temperature) -10 to +50 °C
 Temperature Accuracy ±0.5 °C
 Temperature Resolution 0.1 °C
 CO2 Measuring Range 0 to 2000 ppm
 CO2 Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
 CO2 Resolution 1 ppm
 Operating Temperature -10 to +50 °C
 Output RS485
 Available Temperature Units degrees Celsius, degrees Fahrenheit
 Communication Protocol ModBus RTU, ARION, Advantech ADAM
 Power 9-30 Vdc
 Protection Class IP20
 Dimensions 88 x 106 x 33 mm
