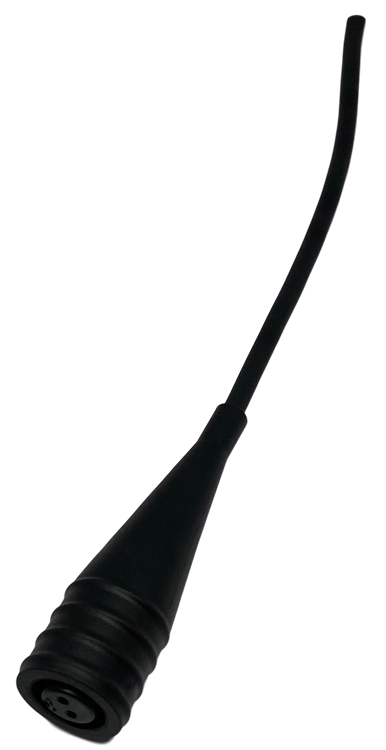

CMCP602LST Push On Seal Tight
CMCP602LST Push On Seal Tight
SKU: SKU: CMCP602LST Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
The CMCP602LST Series Accelerometer Extension Cables are designed for use with piezoelectric accelerometers featuring a 2 Pin Mil Spec MS 5015 connector (standard 2 pin connector) The CMCP602LST Series cables utilize a low noise cable with an overall braided copper shield to maximize the signal quality of the sensor The overall black TPE jacket provides excellent chemical and sunlight protection while also providing the flexibility required to extend the life of the cable assembly.
In addition, the cable (HalGuard) is rated Halogen free Each cable assembly is fitted with a 2 Socket MS 5015 connector that is fully encapsulated with epoxy to ensure water resistance The CMCP602LST cable assemblies are available in both Isolated (for grounding at instrument end) and Non-Isolated (for grounded at the sensor end) versions The North American standard is Isolated.
Features and Benefits:
•General Purpose Cable Assembly.
•Rugged Design for Permanent Installations.
•IP68 Push On Seal Tight Connector.
•Viton Boot for Superior Chemical Resistance.
•Black Halogen Free TPE Cable (HalGuard).
•UV, Oil and Chemical Resistant Cable.
•Suitable for Class 1 Division 1/2 Locations.
•Braided Shield with Drain Wire.
•120 °C Temperature Rating.
•Lifetime Warranty.
Specifications:
| Connector Type | 2 Socket MS Connector, MIL-C 5015 Style |
| Chemical Resistance | Viton Boot for Superior Chemical Resistance |
| Cable Material | Black Halogen Free TPE Cable (HalGuard) |
| UV Resistance | UV, Oil and Chemical Resistant Cable |
| Location Suitability | Suitable for Class 1 Division 1/2 Locations |
| Shielding | Braided Shield with Drain Wire |
| Temperature Rating | 120 °C |
| Cable Assembly Version | Available in both Isolated and Non-Isolated versions |
