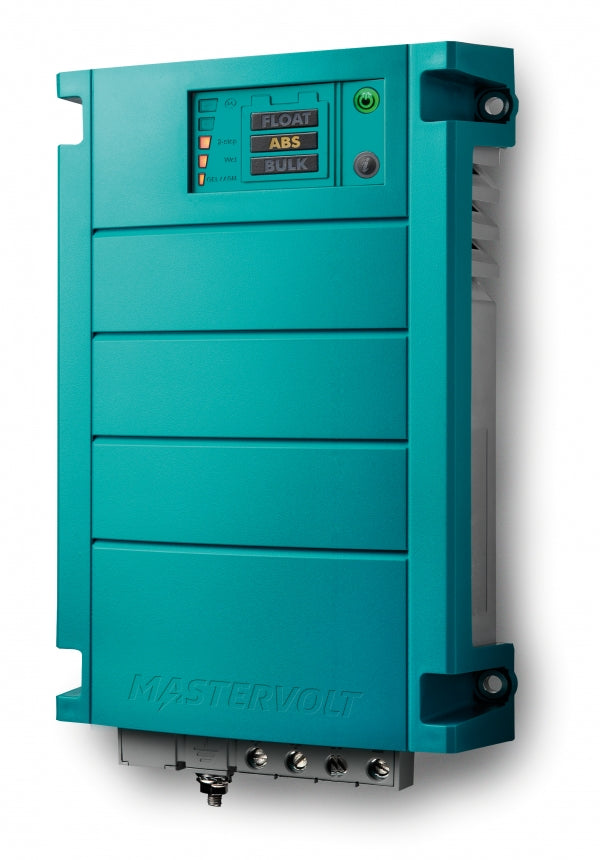

ChargeMaster 12/25-3 Battery Charger

ChargeMaster 12/25-3 Battery Charger

SKU: 44010250 Download PDF

Now $41,723.00
BEFORE   Now $41,723.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Make the most of your batteries with the ChargeMaster series, plugging in and charging anywhere in the world Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer All ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2 and ChargeMaster 24/6).

What’s more, you have the option for central, local or remote monitoring, configuration and control of your system A clearly lit display on the ChargeMaster provides all essential information: charge current, charge voltage, charge phase and battery content measurement and/or battery condition measurement as a percentage of available Ah capacity The display also provides an indication of MasterBus communication.

Three buttons adjacent to the read-out panel allow for easy operating of the entire system The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.

Features and Benefits:

    •For recreational and semi-professional use.

    •Suitable for any type of battery, including Lithium Ion batteries.

    •3-Step+ charging technology for fast and complete charging, also charges depleted batteries.

    •Memory function prevents overcharging in case of unreliable mains.

    •Safe and complete charging due to standard safety features.

    •Charging capacity up to 1000 Ah battery banks.

    •Easy to connect and quick to install.

    •Can charge multiple battery banks simultaneously.

    •Built-in system functionality (MasterBus) in combination with other Mastervolt products.

    •Clear control panel (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2 and ChargeMaster 24/6).

    •Supplies your system without battery.

    •Charging your batteries with every voltage.

    •Charging multiple battery banks.

    •DC Power Supply allowing you to turn on lights or keep the fridge cold.

Specifications:

 Nominal output voltage 12 V
 Total charge current 25 A at 13.25 V
 Number of battery outlets 3
 Charge current second output 25 A
 Charge current third output 25 A
 Battery bank size 50-250 Ah
 Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
 AC connection 2 mtr AC cable
 Power supply mode yes
 Galvanic isolation yes
 Display/read-out LED display
 Fastening 4x screw
 Dimensions, hxwxd 234 x 132 x 60 mm / 9.2 x 5.2 x 2.4 inch
 Weight 1.8 kg / 4.0 lb
 Compliance CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RRR, RMRS
 Charge characteristic IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion
 Charge voltage Bulk 14.4 V
 Charge voltage Absorption 14.25 V
 Absorption time 4 hours
 Charge voltage Float (wet batteries) 13.25 V
 Charge voltage Float (Gel/AGM batteries) 13.8 V
 Temperature compensation yes
 DC voltage compensation automatic
 Power consumption (DC side) < 2 mA
 Full load consumption (230 V AC) 450 W
 Current Control function no
 Power factor control ≥ 0.98
 Temperature range (ambient temp.) -25 °C to 60 °C, derating < 0 °C and > 40
 Cooling vario fan
 Protection degree IP23
 Protections over temperature, over load, short circuit, high/low battery voltage
 MasterBus compatible yes
