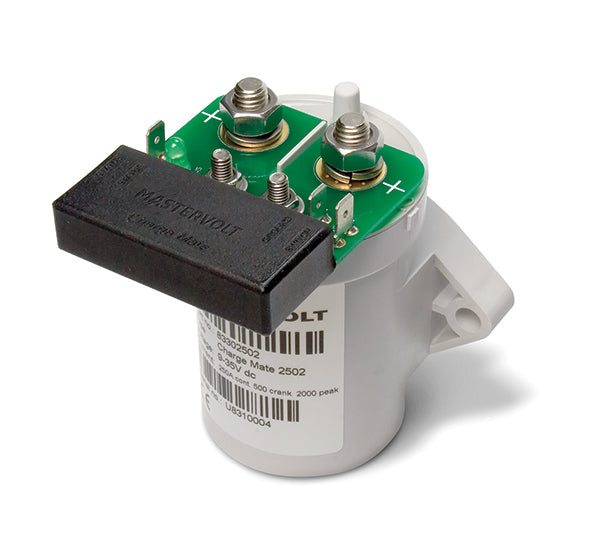

Charge Mate 2502

Charge Mate 2502

SKU: 83302502 Download PDF

Now $43,786.00
BEFORE   Now $43,786.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

A secondary battery is becoming increasingly common As a second battery can prevent the main battery from depleting and being unable to start, this seems like a safe and reliable solution The second battery, however, also has to be charged regularly The Charge Mate series connects both batteries during charging and keeps them isolated when discharging The Charge Mate 1202 and 2502 are especially practical for small systems.

Specifications:

 Battery voltage 12/24 V
 Max. current 500 A
 Number of modes on, off, auto, start assist
 Dimensions, hxwxd 90 x 80 x 85 mm, 3.5 x 3.1 x 3.3 inch
 Power consumption switch open: < 1 mA at 12/24 V DC
 Inrush current (250 ms) 2000 A
 Switch on voltage 13-15 V (12 V) / 26-30 V (24 V)
 Switch on delay 30 sec
 Switch off voltage < 12.25 V... > 15 (12 V) / < 25.5... > 30 V (24 V)
 Switch off delay 3 minutes
 Relay electro-mechanical
 Temperature range (ambient temp.) -40 °C to 60
 Protection degree IP21
