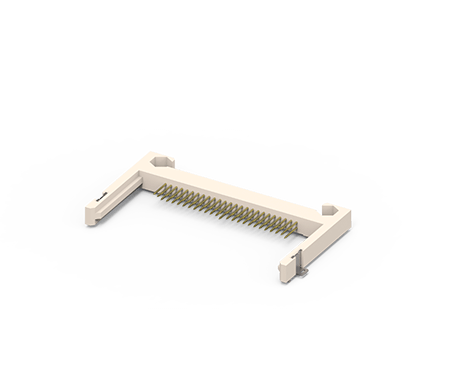

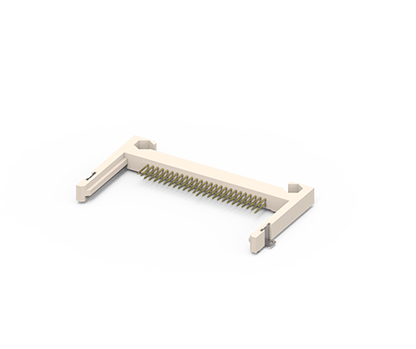

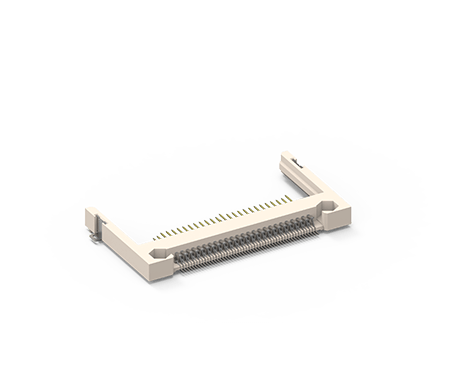

CF Socket Slim type

CF Socket Slim type

SKU: 101D-TAAB-R01 Download PDF

Now $45.00
BEFORE   Now $45.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

ATTEND's CF Memory Card Sockets are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment Many various types available, including type I/II card hybrid, ejector, slim, and reverse slim Meets CFA standards for known compatibility and reliability.

Locating peg distance has two optional choices: 3874 mm and 4016 mm Optional 14 mm board standoff enables board population.

Features and Benefits:

    •Data transfer speeds of up to 133 MB/s.

    •Various types available including type I/II card hybrid and ejector.

    •Meets CFA standards for compatibility and reliability.

    •Optional 1.4 mm board standoff.

    •Industrial equipment.

    •In-vehicle computers.

    •Digital cinema cameras.

    •High-end DSLRs.

    •Recorders.

Specifications:

 Current Rating: 0.5AMP
 Voltage Rating: 100V AC/DC
 Contact Resistance: 40mΩ
 Insulation Resistance: 1000MΩ
 Dielectric Withstanding Voltage: 500V AC for 1 min.
 Durability: 10,000 Cycle
 Insertion Force: 28.8N
 Extraction Force: 4.9N
 Operating Temperature Range: -40℃~+85℃
 Storage Temperature Range: -40℃~+85℃
 Recommended IR Reflow Temperature: 260℃ 10Sec.
