Description:

SCP Cat6 Shielded F/UTP Plenum cables comply with NFPA-262 and are suitable for installation in ducts and plenums without the use of conduit These cables are designed for fire resistance and low-smoke Only plenum rated cables are allowed for USA installation in spaces such as raised flooring systems and air handling ducts SCP Cat6 Shielded F/UTP Plenum cables meet ANSI/TIA 5682-D Category 6 standards.

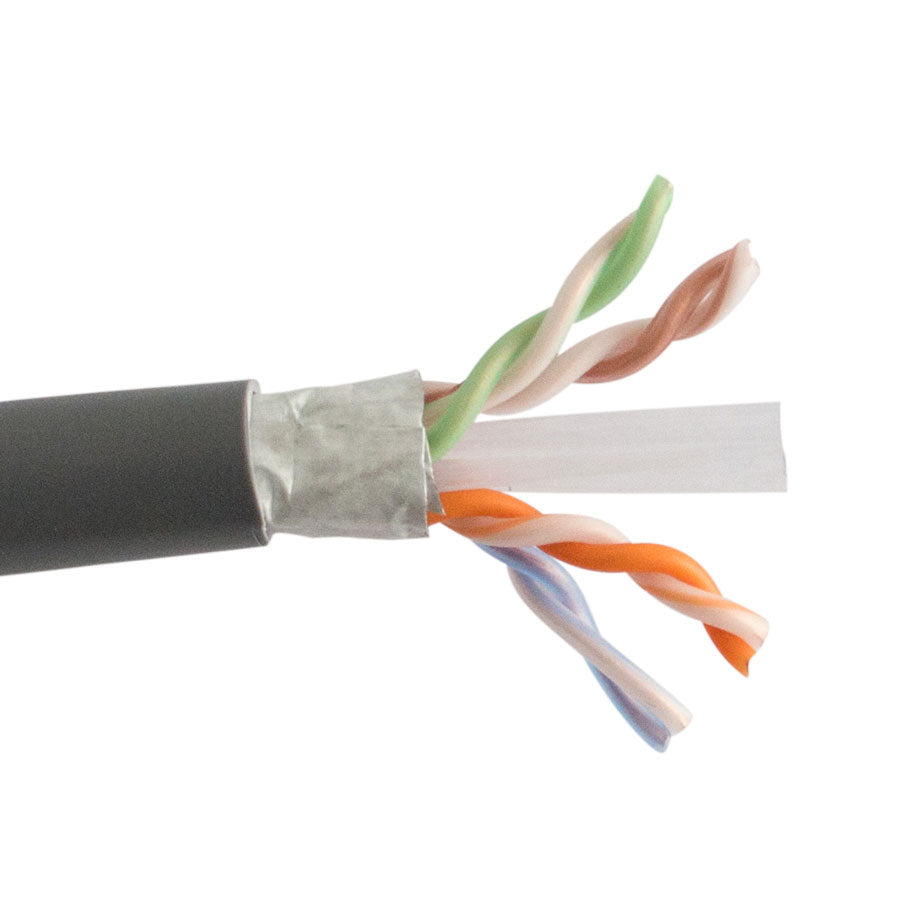

Each Cat6 Shielded F/UTP cable is 550 MHz 23 AWG insulated solid bare copper conductors with a center spline separating the pairs It is shielded with an overall AL foil shield providing superior noise resistance This creates a round and flexible cable for easy pulling and stripping of the cable jacket This cable is ETL and CMP rated and it is packaged on a wooden spool/drum.

Features and Benefits:

•Complies with NFPA-262 for installation in ducts and plenums without conduit.

•Designed for fire resistance and low-smoke.

•Plenum rated for installation in spaces such as raised flooring systems and air handling ducts.

•Meets ANSI/TIA 568.2-D Category 6 standards.

•550 MHz 23 AWG insulated solid bare copper conductors.

•Shielded with overall AL foil for superior noise resistance.

•Round and flexible for easy pulling and stripping.

•ETL and CMP rated.

Specifications:
