Home / CAT6A-WT CAT6A UTP – 10GBASE-T, 600MHz 23AWG SOLID BC 4PR
1 1

CAT6A-WT CAT6A UTP – 10GBASE-T, 600MHz 23AWG SOLID BC 4PR

CAT6A-WT CAT6A UTP – 10GBASE-T, 600MHz 23AWG SOLID BC 4PR

SKU: CAT6A-WT   Download PDF

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $18,500.00 /FT   Web pricing policy
BEFORE   Now $18,500.00 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

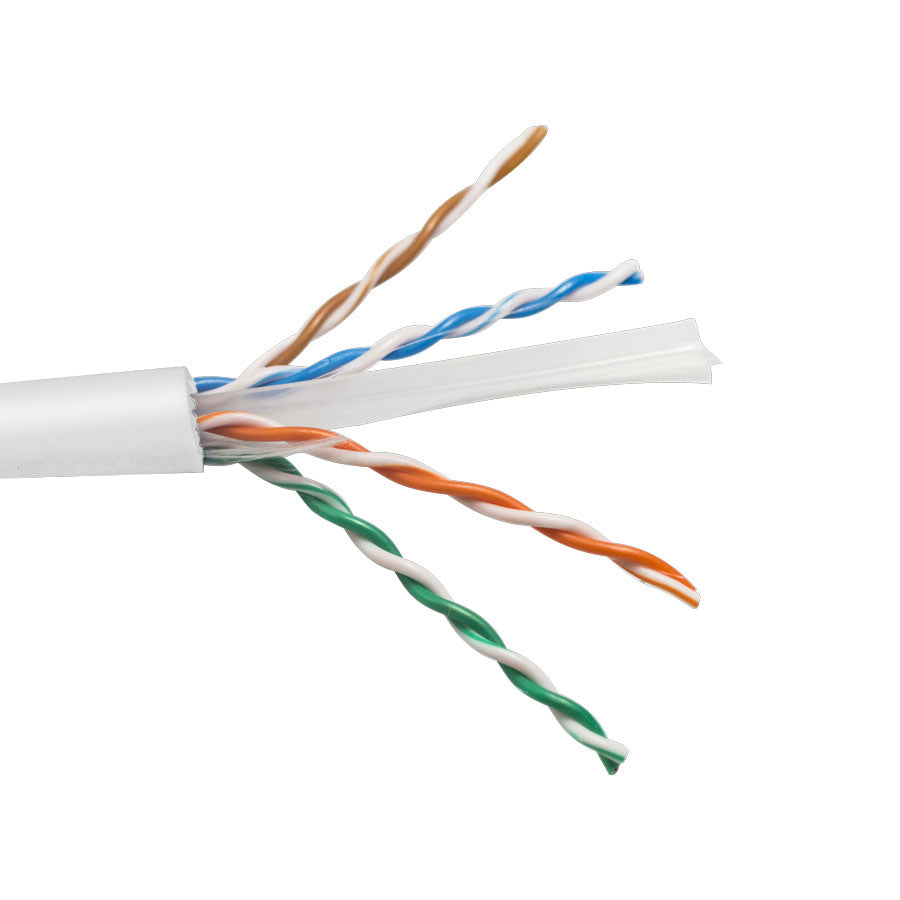

SCP CAT6A UTP cables meet 10GBaseT performance standards for: ANSI/TIA 5682-D Category 6a; ISO/IEC 11801 Class Ea; and EN 50173-1:2011 Each CAT6A UTP cable is performance optimized with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors with a center spline separating each pair The SCP CAT6A cable is constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.

The SCP CAT6A cables are packaged on a 1000ft/305M spool/drum This cable is ETL and riser rated The CAT6A is also available in PLENUM CMP & Low Smoke Zero Halogen (LSZH).

Features and Benefits:

    •Meets 10GBaseT performance standards.

    •Optimized with 4 balanced twisted pairs.

    •Constructed for flexibility and easy pulling.

    •Packaged on a 1000ft/305M spool.

    •ETL and riser rated.

Specifications:

 Category CAT6A - Class Ea
 Color White
 Length 1000ft
 Cable Construction 23AWG SOLID BC 4PR, UTP
 Jacket Material PVC
 Performance Standards ANSI/TIA 568.2-D, ISO/IEC 11801 CLASS Ea, UL CMR
