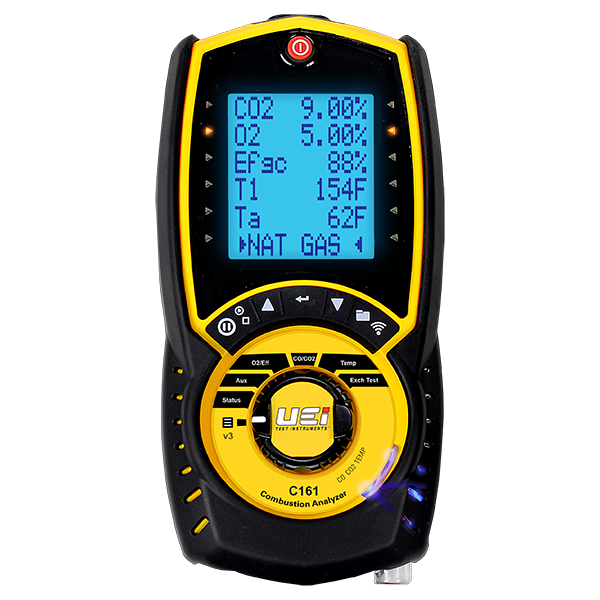

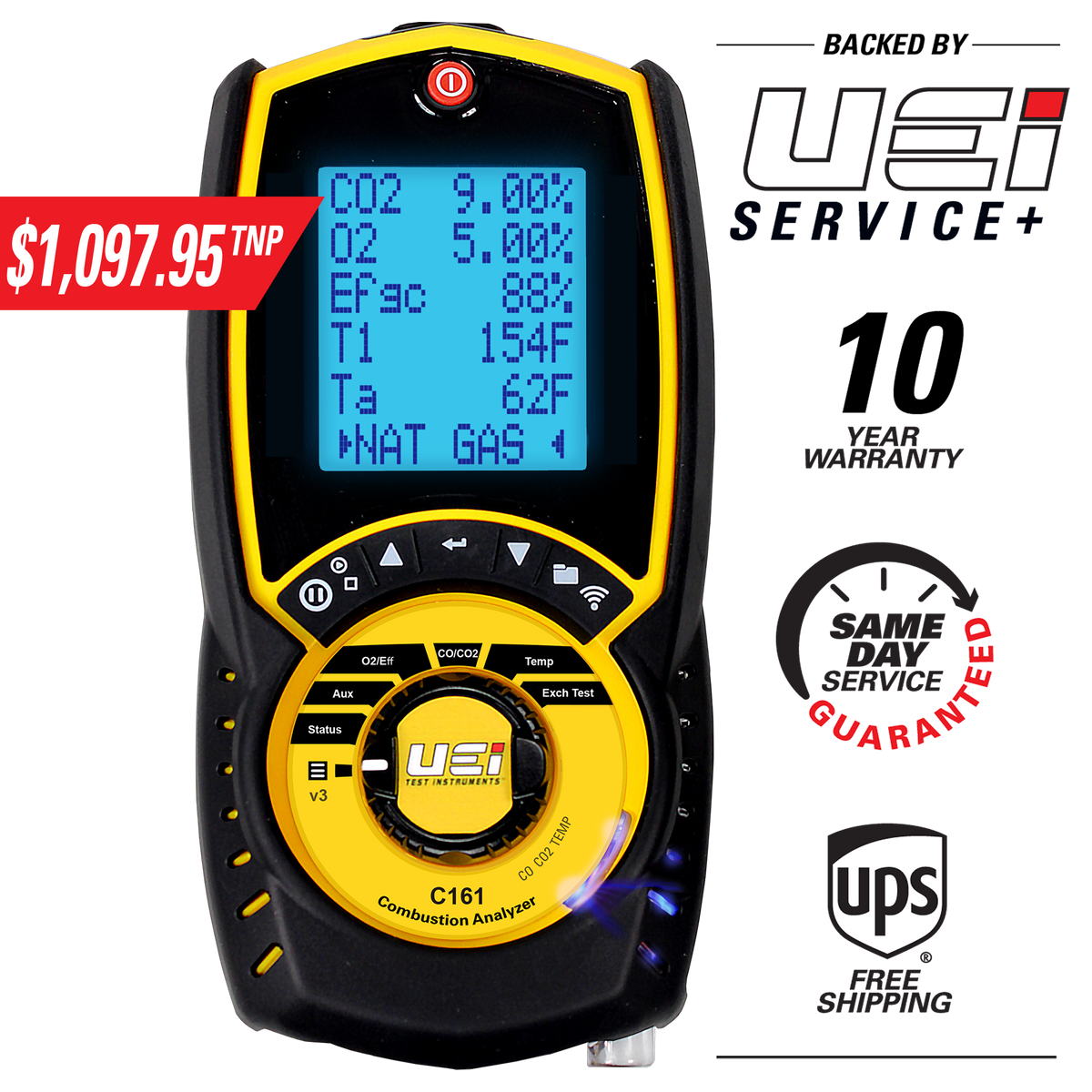

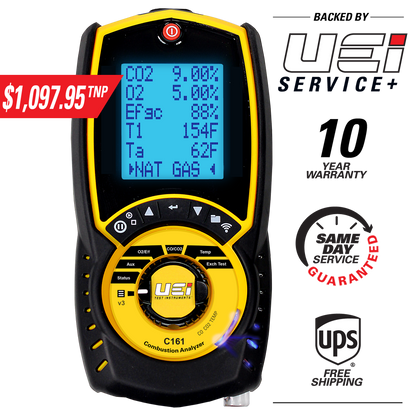

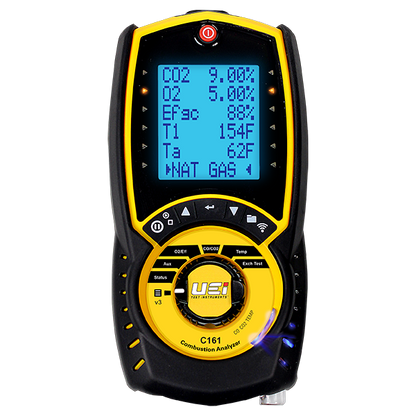

C161 Residential Combustion Analyzer for Gas & Oil Fired Appliances

C161 Residential Combustion Analyzer for Gas & Oil Fired Appliances

SKU: C161OILKIT Download PDF

Now $1,033.47
BEFORE   Now $1,033.47
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

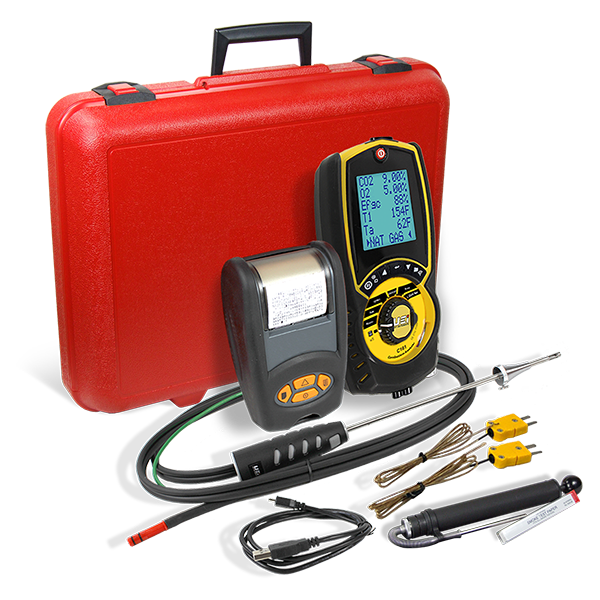

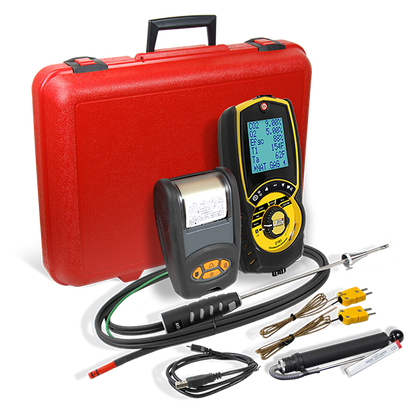

The C161 Residential Combustion Analyzer is easy to use and features a newly added heat exchanger test, differential temperature, rugged design, multiple sensor protections, and altitude compensation This analyzer calculates essential information for installing and maintaining gas appliances Prints to included printer Includes: Analyzer, Smoke Pump Tester, 2 Thermocouples, Printer, and Carrying Case.

Features and Benefits:

    •Backlight.

    •Up to 10-Year Warranty with Annual Recertification.

    •Eligible for UEi Service+.

    •Temperature Differential.

    •2 Types of Sensor Protection.

    •NOx Filtered CO Sensor.

    •Low Flow Detection.

    •Over Range Protection Pump.

    •Temperature Inputs: K-Type.

    •Wireless Output.

    •Protective Boot/Overmolding.

    •Preprogrammed Fuels: 8.

    •Start Time: 30 seconds.

    •High Altitude Compensation.

    •Memory positions: 30.

    •Magnetic Mount.

    •Warranty: 10-Year limited.

    •Recording/Data Logging.

    •K-Type Input.

    •Digital.

    •Number of Display Parameters: 6.

    •IR Printer Link.

    •Protective Water Trap.

Specifications:

 CO 2000ppm
 CO2 20%
 O2 21%
 Flue Temperature 32˚ to 1112˚F
 Inlet Temperature 32˚ to 1112˚F
 K-Type Temperature Range -40˚ to 950˚F (-40˚ to 510˚C)
 IEC 61010 IEC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
 CE Conformity Yes
 RoHS Yes
 REACH Compliant Yes
 AHRI 1260 Standard Yes
 Certification The C161 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
 Batteries Rechargeable AA (7)
 Pouch/Case AC509
 Infrared Printer IRP-2
 Flue Probe CP2
 Printer Paper Roll 16646 (spare)
 Smoke Pump Test Kit SPT1
 USB Cable AACA5
 Particle Filter 17632 (spare)
 K-Type Thermocouples ATT29 (2)
