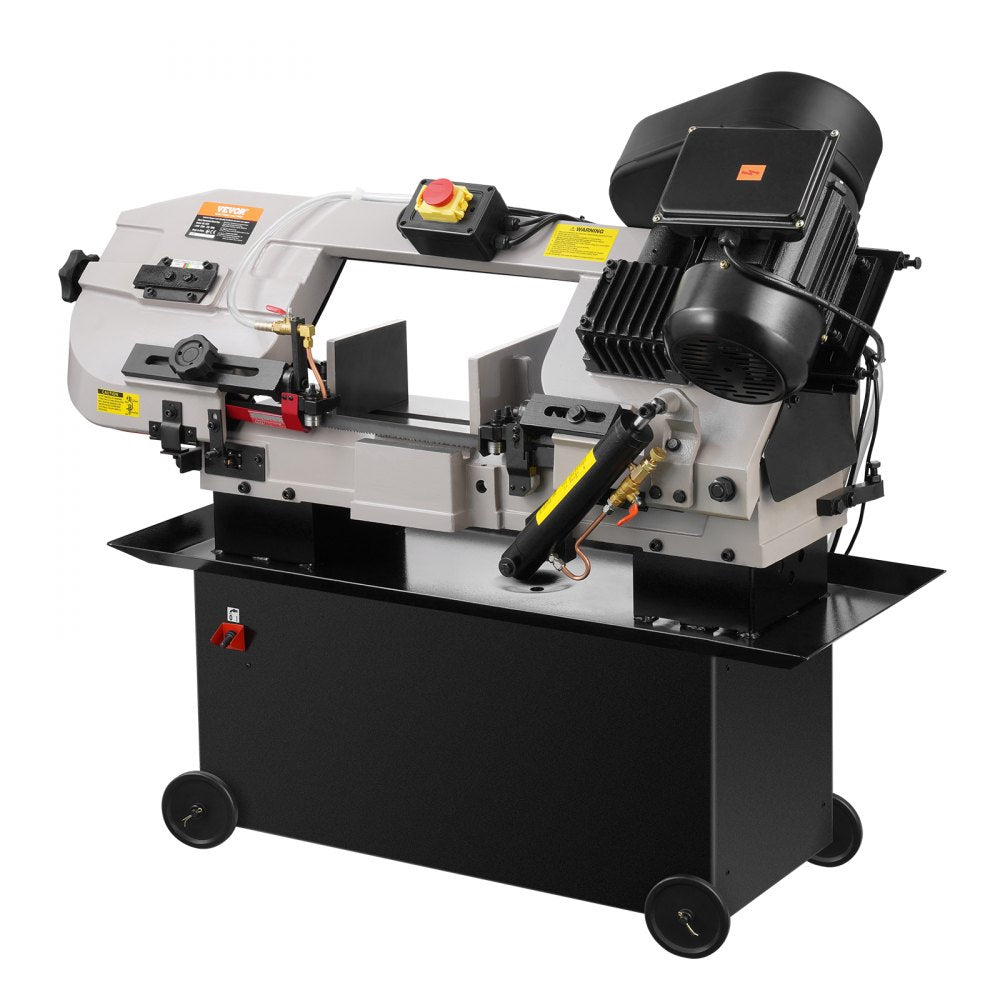

BS-712N - 7" x 12" Metal Band Saw with Hydraulic Feed & 4 Speeds
BS-712N - 7" x 12" Metal Band Saw with Hydraulic Feed & 4 Speeds
SKU: SKU: BS-712N Download PDF
- BS-712N - 7" x 12" Metal Band Saw with Hydraulic Feed & 4 Speeds
- BS-712N - 7" x 12" Metal Band Saw with Hydraulic Feed & 4 Speeds
Couldn't load pickup availability

Description:
Introducing our robust 11 kW metal band saw, designed for versatility with dual voltage options (110V pre-wired and 220V) It offers four adjustable speeds (86, 132, 178, and 260 FPM) for effortless cutting through a range of metal materials With a generous capacity for cuts from 0° to 45° and dimensions of 7 x 12 inches, this saw is built for precision Features such as a quick-lock clamp plate, hydraulic feed, and mobile wheels enhance its usability, making it a convenient addition to any workshop.
Features and Benefits:

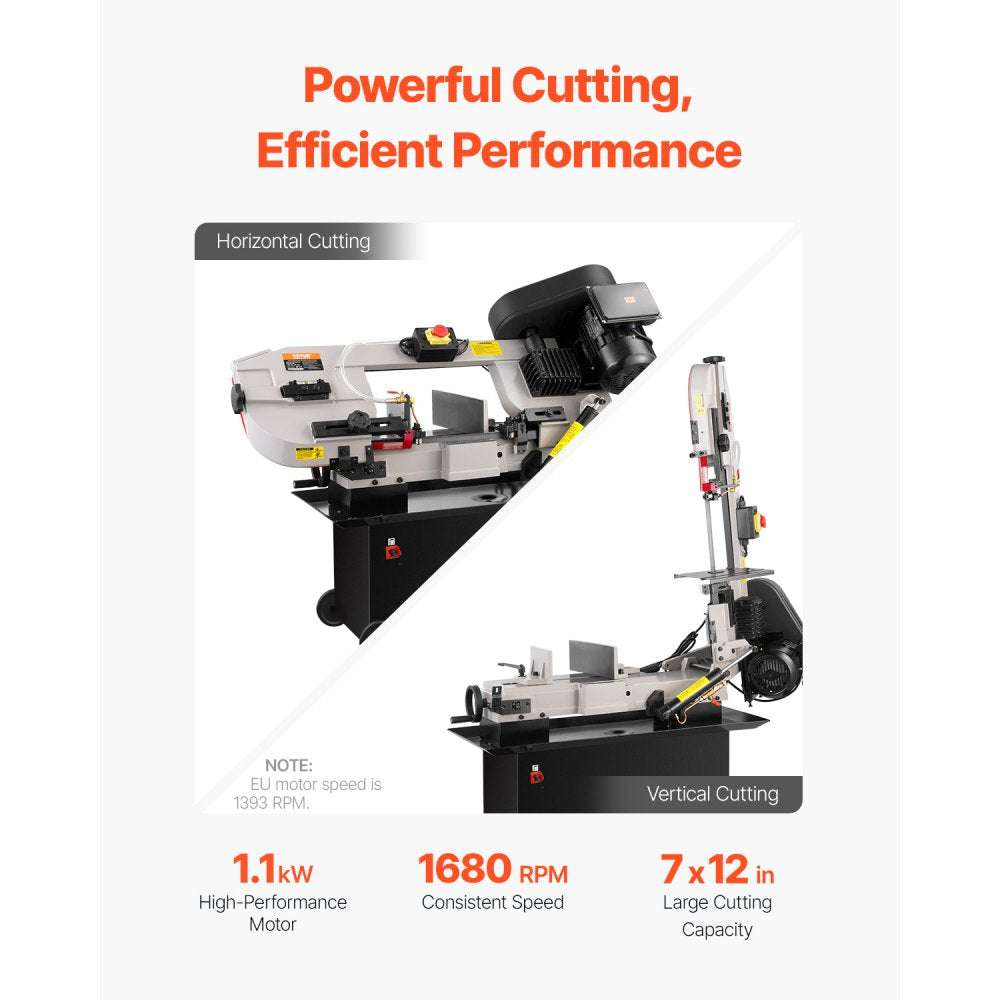

•Powerful Cutting Performance with a robust 1.1 kW motor at 1680 RPM for consistent power..
•Supports dual voltage (110V pre-wired/220V) and horizontal & vertical cutting modes..
•Versatile material compatibility with adjustable speeds for different materials..

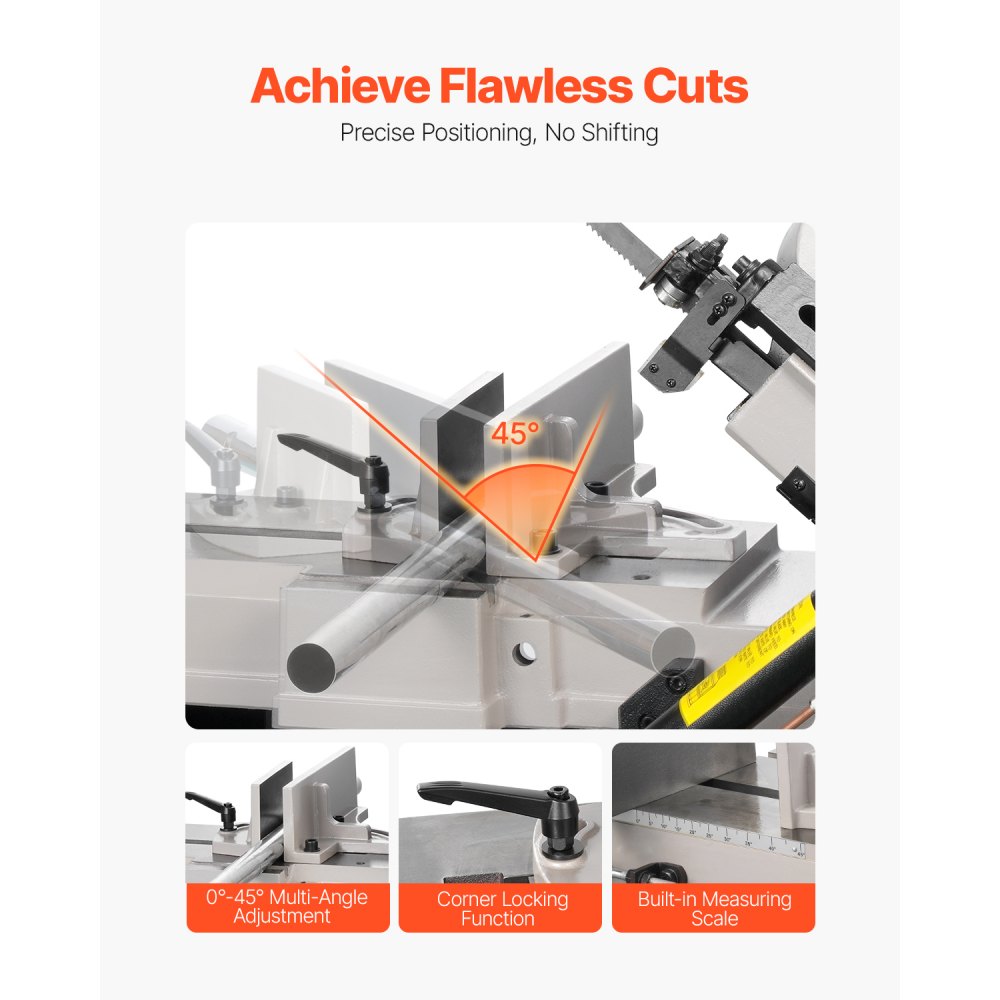

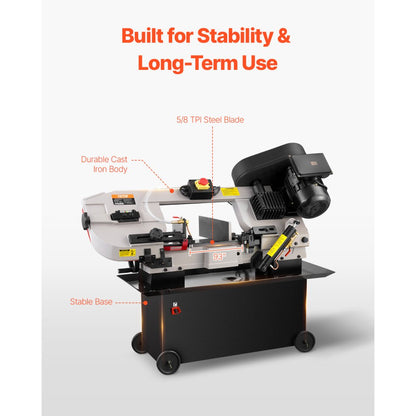

•Precision cutting with a quick-lock clamp plate and manual fine-tuning for stability..
•Durable and long-lasting construction from wear-resistant cast iron..
•Automatic shut-off for security with a hydraulic downfeed cutting system..

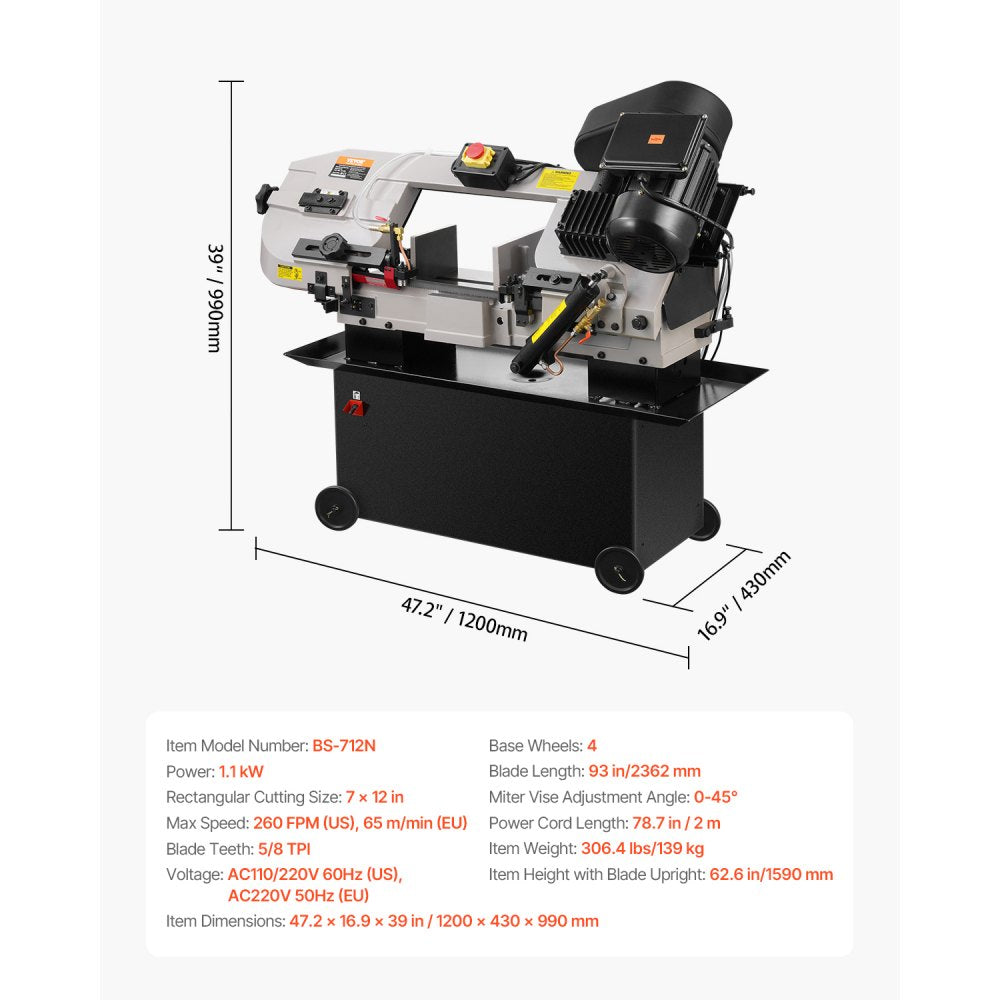

Specifications:
| Voltage | AC110/220V 60Hz (US), AC220V 50Hz (EU) |
| Power | 1.1 kW |
| Rectangular Cutting Size | 7 x 12 in |
| Max Speed | 260 FPM (US), 65 m/min (EU) |
| Blade Teeth | 5/8 TPI |
| Foot Wheels | 4 |
| Blade Length | 93 in/2362 mm |
| Clamp Plate Rotation Angle | 0-45° |
| Power Cord Length | 78.7 in/2 m |
| Item Dimensions | 47.2 x 16.9 x 39 in/1200 x 430 x 990 mm |
| Item Height with Blade Upright | 62.6 in/1590 mm |
