BOX2-1455L Aluminum Enclosure for BPS Size2 PCBs

Description:

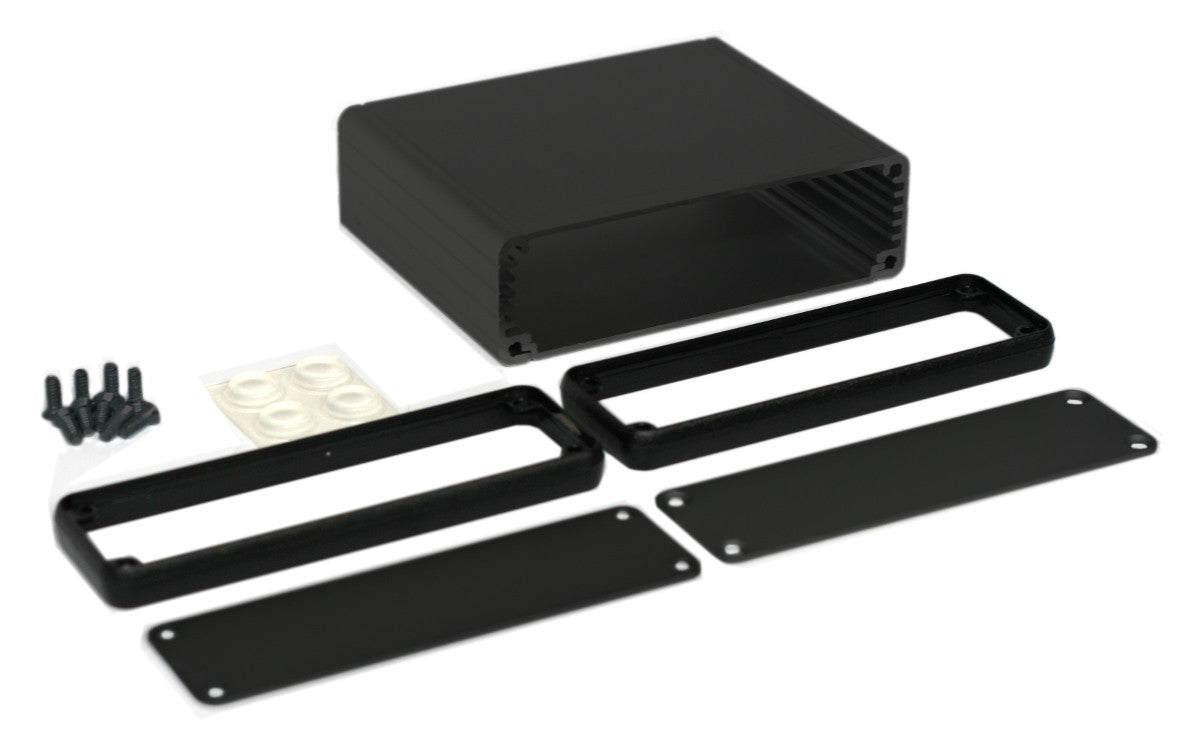

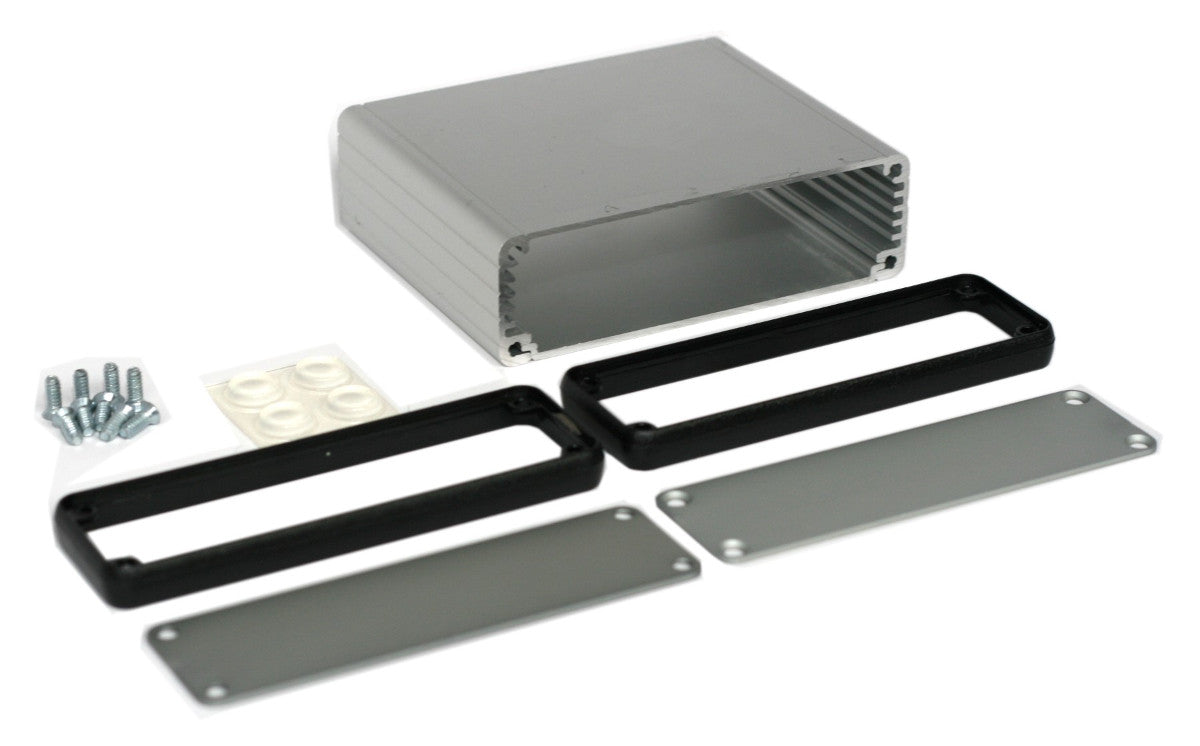

The BOX2-1455L is an extruded aluminum enclosure for electronic projects The enclosure is designed for BusBoard Prototype Systems Size2 prototype PCBs (100x80mm boards) PC boards mount horizontally by sliding into 5 built-in card guide slots Two aluminum end panels are provided with attractive plastic bezels to hide the seams The screws are recessed flathead type to provide a flat surface The silver aluminum is anodized (clear or black) for protection from the elements.

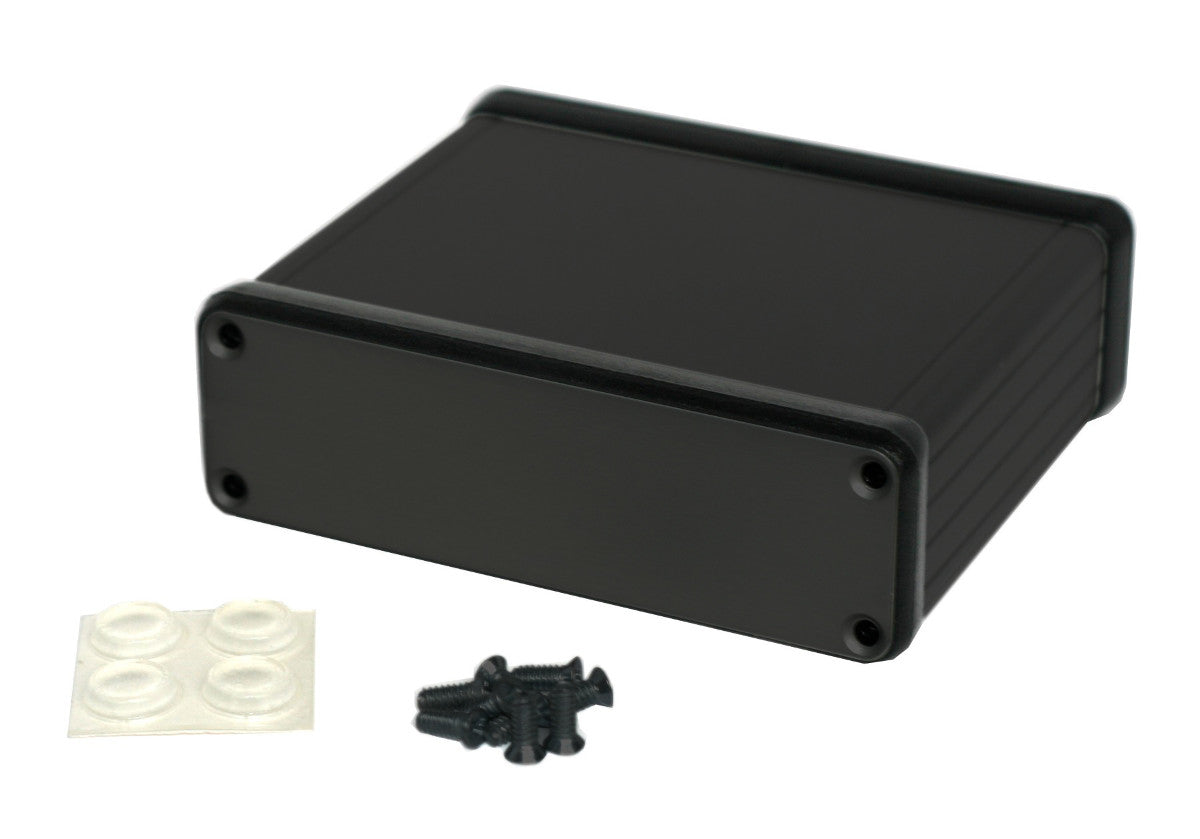

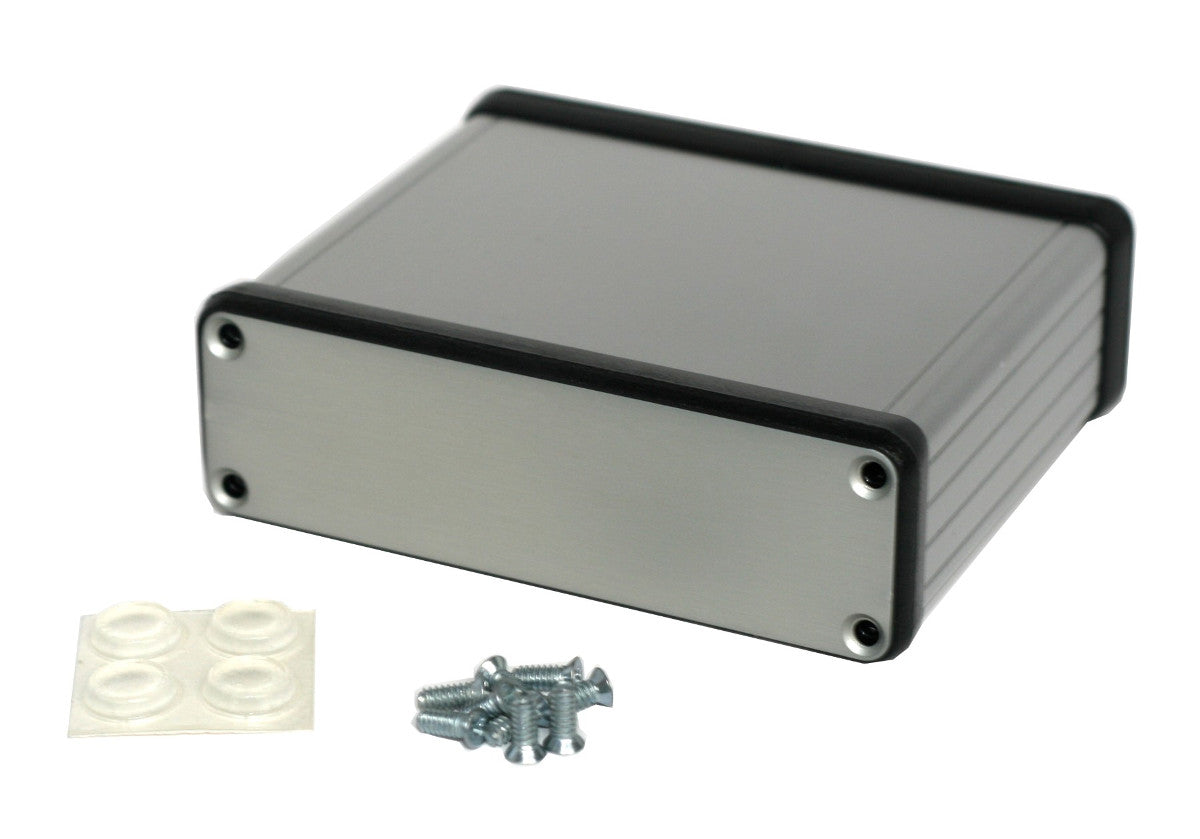

The end panels and the top plate can be removed for easy drilling or cutting of holes Screws and adhesive rubber feet are included.

Features and Benefits:

•Box is silver or black anodized extruded aluminum with end plates anodized to match and polycarbonate plastic bezels..

•5 built-in card guides for Size2 PCBs (100 x 80mm)..

•Slide out top panel plate..

•Rugged body constructed from extruded aluminum with a minimum thickness of .06" (1.5 mm)..

•Box Size 4.05 x 3.15 x 1.20 inches (103 x 80 x 30.5 mm)..
